SH7550 Crude Oil Wax Content Tester With Water Content Less Than 0.5% Mass Fraction
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SH7550 | Working Power Supply | AC220V±10%, 50Hz |
---|---|---|---|
Water Bath Temperature Control Range | Room Temperature ~ 90℃ | Water Bath Heating Power | 2.0KW |
Working Cold Tank | Four Holes, Four Holes Are Not Isothermal | Cold Bath Temperature Control Range | -- 30℃ ~ Room Temperature |
Refrigeration System | New Type Compressor Refrigeration | Temperature Control Accuracy | ≤±0.5℃ |
High Light | SH7550 Crude Oil Wax Content Tester,Hole Refrigeration Tank Content Tester,AC220V Crude Oil Testing Equipment |

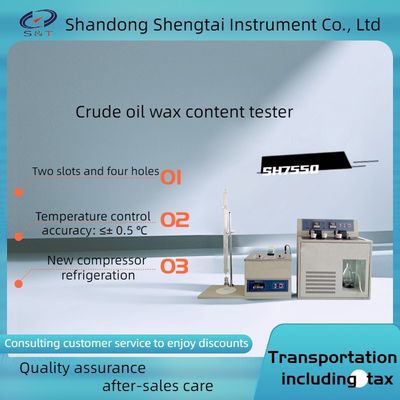

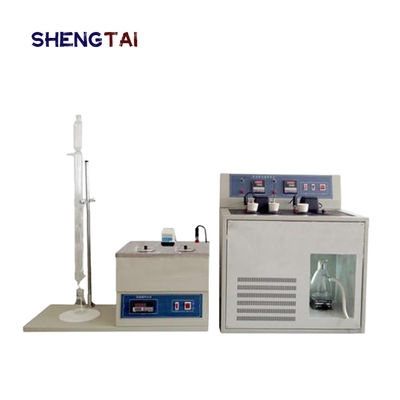

SH7550 Crude Oil Wax Content Tester With Water Content Less Than 0.5%(Mass Fraction) Four Hole Refrigeration Tank
SH7550 Crude oil wax content tester is designed and manufactured according to the requirements of the People's Republic of China industry standard SY/T-7550 "Determination of wax, gum and asphaltene content in crude oil". It is suitable for the determination of wax content in crude oil products with water content less than 0.5%(mass fraction).
Performance characteristics:
1: Adsorption device: stainless steel bath, digital display temperature controller automatic constant temperature.
The temperature control point can be adjusted arbitrarily. The water bath has a built-in circulating pump, which is connected with the adsorption device to keep the temperature controlled within the required range. The water bath is covered with two heating entrances, which can heat the glass container.
2: Dewaxing and filtration device: four-hole stainless steel bath, digital display temperature controller automatic constant temperature.
Temperature control point can be adjusted arbitrarily, and with constant temperature bath stirring device, improve temperature control accuracy.
3: four hole refrigeration tank, left hole solvent refrigeration hole, the middle two hole sample refrigeration hole, the right side of a hole filter refrigeration hole, four hole temperature can be set according to the demand of the temperature, four hole isothermal.
Technical parameters
1, working power supply: AC220V±10%, 50Hz
2, water bath heating power: 2.0KW
3, water bath temperature control range: room temperature ~ 90℃
4, working cold tank: four holes, four holes are not isothermal
5, cold bath temperature control range: -- 30℃ ~ room temperature
6. Refrigeration system: new type compressor refrigeration
7, temperature control accuracy: ≤±0.5℃
8, temperature display: LED digital display
9. Ambient temperature: ≤35℃
10, relative humidity: ≤85%
Working power supply | AC220V±10%, 50Hz |
Water bath heating power | 2.0KW |
Water bath temperature control range | room temperature ~ 90℃ |
Working cold tank | four holes, four holes are not isothermal |
Cold bath temperature control range | -- 30℃ ~ room temperature |
Refrigeration system | new type compressor refrigeration |
Temperature control accuracy | ≤±0.5℃ |
Temperature display | LED digital display |
Ambient temperature | ≤35℃ |
relative humidity | ≤85% |
Host size: 530 * 680 * 580mm Weight: 45kg | |
Size of accessories: 450mm * 390mm * 490mm Weight: 25kg |
Packing list
S/N | Name | Unit | Quantity | Remarks |
1 | Host | set | 1 | |
2 | Adsorption column | piece | 1 | |
3 | Triangular flask | piece | 1 | |
4 | Universal clamp, double top wire | piece | 3 | |
5 | Strut | piece | 2 | |
6 | thermometer | piece | 2 | |
7 | Bottle mat | piece | 1 | |
8 | Glass sand core funnel | piece | 1 | |
9 | Test tube and rubber stopper | set | 3 | |
10 | Suction bottle | piece | 1 | |
11 | Asphaltene content tester | set | 1 | |
12 | Asphaltene extractor | set | 1 | |
13 | Rubber hose | meter | 1 | |
14 | Water bath cover | set | 2 | |
15 | Vacuum pump | set | 1 | |
16 | instructions | Copy | ||
17 | Certificate warranty card | copy |
Self-provided instruments are required
S/N | Name | Unit | Quantity | Remarks |
1 | Vacuum drying oven | set | 1 | Constant temperature to 100-110 ℃ |
2 | Ma Fulu | set | 1 | High temperature to 1000 ℃ |
3 | Electronic balance | set | 1 | 0.1mg |
4 | Distillation apparatus | set | 1 | Comply with GB/T6536 |
5 | Oil bath | set | 1 | Asphaltene content determination needs |
6 | 24# Grinded conical flask | piece | 2-4 | Asphaltene content determination needs |
7 | Glass dryer (with silica gel desiccant) | piece | 1 | |
8 | 19# Grinded conical flask 100ml | piece | 2-4 | Wax content determination needs |
9 | Beaker50ml | piece | 2-4 | |
10 | Graduated cylinder100ml | piece | 2-4 | |
11 | Pipette 10ml | piece | 2-4 |
