ASTMD323 Fully Auto Petroleum Products Saturated Vapor Pressure Tester Reid Method

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH8017B
Minimum Order Quantity 1
Packaging Details wooden box
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH80017B Power Supply AC(220±10%)V, 50Hz
Heating Work Rate ≤1800W Number Of Hanging Shells 2 Shells
Pressure Range (0~200)kPa Or (0~29)psi The Number Of Rotation Angle The Automatic Rotation Angle Of The Instrument Is 350°
High Light

Petroleum Products Vapor Pressure Tester

,

Saturated Vapor Pressure Tester

,

ASTM D323 Vapor Pressure Tester

Leave a Message
Product Description

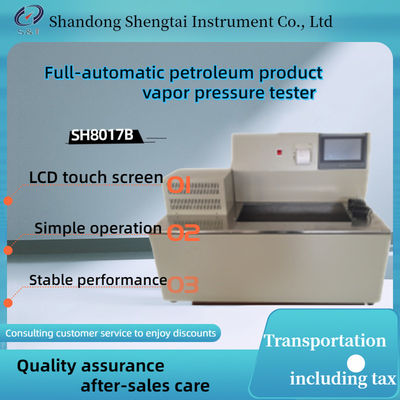

ASTMD323Fully Automatic Petroleum Products Saturated Vapor Pressure Tester Reid Method)



SH8017B Automatic petroleum product vapor pressure tester is designed and manufactured according to GB/T8017 "petroleum product vapor pressure measurement method (Reid method)".

Suitable for measuring the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.

The instrument is mainly composed of color LCD touch screen, water bath box and temperature control device, vapor pressure bomb, pressure sensor, mechanical rotation and other parts.

With the use of flexible, easy to move, and with printing, fault self - check and other characteristics.

ASTMD323Fully Automatic Petroleum Products Saturated Vapor Pressure Tester Reid Method)

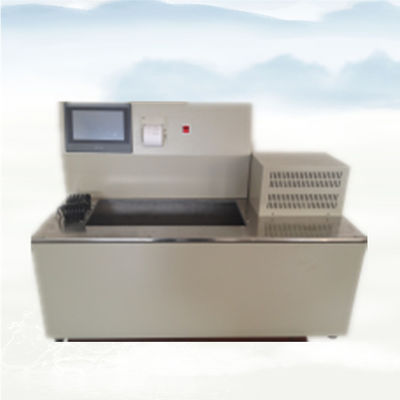

SH8017B Automatic Reid Method Vapor Pressure Tester for Petroleum Products

SH8017B Automatic Vapor Pressure Tester (Reid Method) for Petroleum Products

ASTM D323 Reid Method Automatic Saturated Vapor Pressure Tester Analyzer

ASTMD323 Fully Auto Petroleum Products Saturated Vapor Pressure Tester Reid Method 0

Main Performance Characteristics

1, 7 inch color touch screen, do not need training can be completed according to the screen prompts.

2, Chinese operation interface, page arbitrary switch, simple and convenient operation.

Automatic pressure detection, collection, calculation, automatic temperature control, automatic timing, automatic printing results, super capacity storage function, can store tens of thousands of data, can be queried.

3, Constant temperature water bath by circulation system, with mixing function, make the water bath temperature uniform without dead Angle, high temperature control accuracy.

4, safety performance: automatic diagnosis, over temperature alarm and automatically cut off the power supply of the heater, the test is completed with alarm function.

5, With on-line adjustment function, can effectively correct the deviation of pressure and temperature sensor.

Main technical parameters

1, power source: AC220V ±10% 50Hz

2. Heating work rate: 1.8KW

3, stirring motor power: 15W

4, temperature control range: room temperature ~ 90℃

5, temperature control precision: ≤±0.1℃

6, pressure fan: 0 ~ 200kPa

7. Number of hanging shells: 2 shells

8, the number of rotation Angle: the automatic rotation Angle of the instrument is 350°

9. Sensor: PT100

10. External size: 900 × 450 × 650 weight:50kg

ASTMD323 Fully Auto Petroleum Products Saturated Vapor Pressure Tester Reid Method 1



1. Power supply: AC(220±10%)V, 50Hz
2. Heating work rate : ≤1800W
3. Stirring motor power : 15W
4. Temperature control range : room temperature ~ 90℃
5. Temperature control accuracy: ±0.1ºC
6. Number of hanging shells 2 shells
7. Pressure range: (0~200)kPa or (0~29)psi
8. The number of rotation Angle the automatic rotation Angle of the instrument is 350°
9.Relative humidity: ≤85%
10.Dimension: 900 × 450 × 650 weight:50kg

ASTMD323 Fully Auto Petroleum Products Saturated Vapor Pressure Tester Reid Method 2

Packing list

S/N Name Unit quantity Remarks
1 Vapor pressure meter set 1
2 Steam bomb set 2
3 Pressure gauge piece 2
4 Temperature sensor piece 1
5 Instruction copy 1
6 Packing list copy 1
7 Certificate warranty card copy 1
