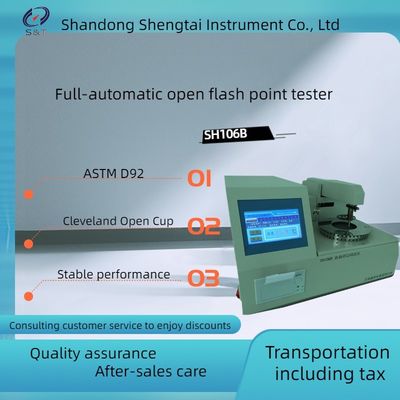

Automatic open flash point tester for Turbine oil standard ASTMD 92 GB/T3536 Cleveland open cup method

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH106B
Minimum Order Quantity 1
Packaging Details Wooden box
Delivery Time About 5 working days
Payment Terms T/T
Supply Ability 1000 set per mouth

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Standard ASTMD 92 GB/T3536 Test Item Open Flash Point For Turbine Oil
Range Room Temperature ~ 400℃ Display Touch Screen
Key Words Open Flash Point Tester For Turbine Oil Key Words1 Cleveland Open Flash Point Tester
Key Words2 Automatic Cleveland Open Flash Point Tester
High Light

soil lab instruments


soil testing laboratory equipment

Leave a Message
Product Description

   SH106B automatic open flash point tester is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T 3536 "Determination of flash point and ignition point of petroleum products (Cleveland open cup method)".

  Instrument according to the standard method of heating, automatic rise and fall, automatic ventilation, automatic ignition, automatic display, automatic locking flash point value, automatic printing results.

After the test can be automatically cooled, to achieve the full automation of the work process.

It has the advantages of accurate measurement, good repeatability, stable performance and simple operation. It also supports the determination of GB/T1671-2008 plasticizer flash point


No. Tech Indicator Description
1 Power

AC220V±10% 50Hz

(Can be changed to your country request)

2 Instrument Power ≤1300W
3 Color LCD TFT,5 Inch
4 Touch Screen Four-Wire Resistive
5 Print Motor Thermal
6 Control Single Chip Microcomputer Control
7 Display Touch Screen
8 Print Automatic Printing After Testing
9 Method Open Cup
10 Temp rang Room temp ---400℃
11 Standard ASTMD 92 GB/T3536

instrument features

1. The instrument adopts color LCD large screen display, full Chinese man-machine dialogue interface, no identification keyboard, for the parameters such as pre-value temperature, sample label, atmospheric pressure, test date, with prompt menu, oriented input function.

2. Simulation tracking displays the function curve of temperature rise and test time. It has the function of Chinese wrong operation software to prompt modification, and the function of test date, test time and other parameters to prompt.

3. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.

4. Differential detection, automatic correction of system deviation.

5. Scanning, detection and printing data are automatically completed, and the test arm automatically rises and falls.

6. Electronic ignition and forced air cooling

7, without automatic ignition of air source, improve the safety of the test

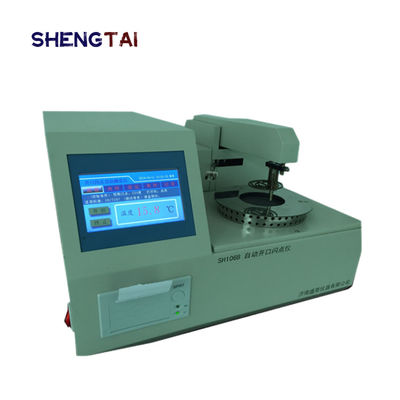

Automatic open flash point tester for Turbine oil standard ASTMD 92 GB/T3536 Cleveland open cup method 0

Main technical indexes and parameters

1, working power supply: AC220V±10%, 50Hz

2, temperature measurement: range: room temperature ~ 400℃;

Repeatability: flash point ≤150℃ error ±2℃ flash point ≥150℃ error ±3℃

Resolution: 0.1℃;

Precision: 0.5%;

3. Heating speed: in line with GB/T3536 standard;

4, ignition mode: electronic ignition, flame 3㎜~4㎜;

5, ambient temperature: (10~40)℃;

6, relative humidity: ≤80%;

• Standard Accessories

No. Description Note Unit Qty
1 Certification   Copy 1 Each
2 Main Part   Set 1
3 Fuse 15A Piece 2
4 Oil Cup   Piece 1
5 Power Cord   Piece 1
