Product Details:
|
| Standard: | ASTM D97 | Key Words: | Automatic Pour Point Tester |
|---|---|---|---|
| Temp Range: | Room Temperature--70℃ | Method Of Refrigeration Refrigeration By Compressor Engine: | Refrigeration By Compressor Engine |
| Cold Trap For Test: | 2 | Printer: | A Small Thermal Printer |
| High Light: | soil hardness tester,soil testing laboratory equipment |
||

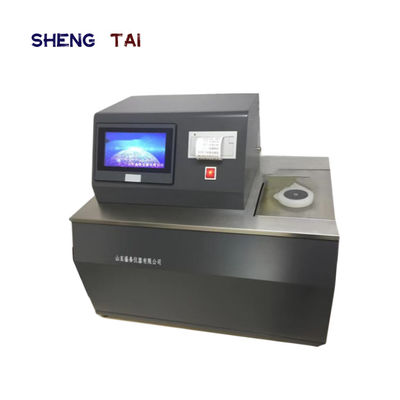

SH113C automatic pour point tester in line with GB/T3535 national standard requirements, using a number of single-chip microcomputer composed of the main control components, automatic refrigeration, automatic constant temperature, automatic detection, and automatic print output results.
Adopt the two-stage refrigeration system, make the refrigeration range +30℃ ~ -70℃, adapt to pour point/freezing point higher than -35℃ sample detection, because of the use of Germany Danfoss imported compressor to work for a long time stable and reliable, not easy to damage.
Adopt dry trap cold bath box, less lag, fast cooling, do not need other cooling medium, easy to use and maintenance.
Adopt high performance infrared detection technology, high detection sensitivity, strong reliability.
| Testing Range | room temperature--70℃ |
| Accuracy | ±0.1℃ |
| Method of Refrigeration | refrigeration by compressor engine |
| Power | 1500W |
| Voltage | AC220V 50HZ |
| Working Temperature | Temperature≤40℃ Humidity≤80% |
| Weight | about 75KG |
| display | 7-inch TFT color LCD display |
| Cold trap for test | 2. |
| detection method: | imported photoelectric switch detection |
| Out put | U disk output function |
Product features:
Two, meet the standard: GB/T3535 ASTM D97
1. Upgraded to 7-inch TFT color LCD display;
2. Refrigeration mode: fully enclosed and efficient refrigeration compressor.
3. Cold trap for test: 2
4, detection method: imported photoelectric switch detection
5, after the upgrade can store historical data, convenient query;
At the same time can be equipped with U disk output function.
6, standard micro printer automatic measurement automatic printing
7. After the completion of the test, if there is no personnel to operate, set the automatic closing time of the refrigerator within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument.
8, with date password setting function.
9, standard micro printer automatic measurement automatic thermal printing
10, with TCP network transmission function( optional )
11. Can upload and connect to LIMIS system( optional )
12. Memory can be expanded to 16G
Technical parameters:
Meet the standard: GB/T3535
Number of test holes: double holes
Temperature range: +30℃ ~ -70℃
Temperature control accuracy: < ±0.3℃
Refrigeration medium: metal bath refrigeration
Detection of freezing point: infrared detection
Human-machine interface: 7 inch color LCD touch screen
Printer: a small thermal printer
Power supply: AC220 V 50Hz
Storage: 199 sets of historical data can be stored for easy query;
Result output: at the same time can be equipped with U disk output function, output to the PC for long-term storage
Output format: The output format of the result USB flash disk is CSV or EXCEL.
Data extension: laser printer interface, can be linked to HP1108 laser printer (optional).
Data protection: with date password setting function.
Standard printing: standard micro printer automatic measurement automatic thermal printing
Remote upgrade: with TCP network transmission function, can be later software remote upgrade
Data management: can connect to the LIMIS system
