Product Details
Name Density Tester For Petroleum Product Model SH102
Standard GB/T1884,ISO 3675,ASTM D1298,DIN 51757 Tube Capacity 500ml.
Temperature Control Range 0℃ ~ 100℃. Specification 600-1010 Kg/m
High Light

soil hardness tester

,

soil testing laboratory equipment

Leave a Message
Product Description

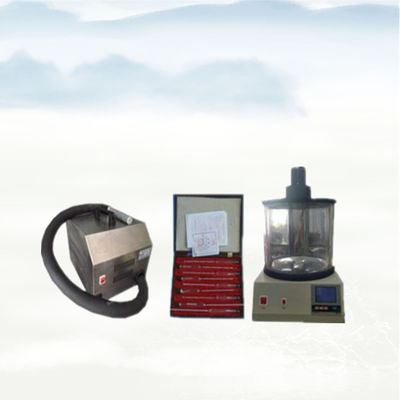

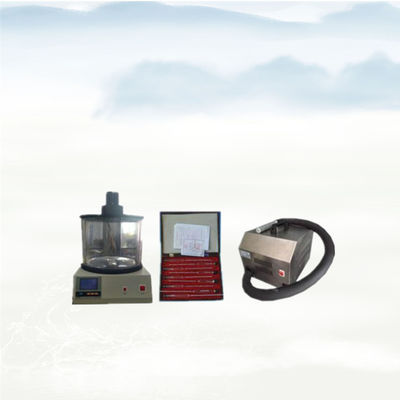

   SH102 Density tester for petroleum product is based on the People's Republic of China standard GB/T 1884 "petroleum and liquid petroleum product density determination method (densimeter method)" the requirements of the design and manufacture, is the liquid petroleum product density tester developed by our company, suitable for the determination of crude oil and liquid petroleum product density.



GB/T1884,ISO 3675,ASTM D1298,DIN 51757,JIS K2249,IP 160



I. Main technical features

1. The instrument adopts the form of all-in-one machine, the control box adopts the humanized design, the control switch adopts the form of light touch key, the design is novel, the structure is compact, the operation is comfortable, beautiful and generous.

2, Digital tube display temperature controller, rapid temperature control, fast response, small overshoot, temperature control accuracy up to ±0.2℃.

3, the use of hard glass tank and electric mixing device, the sample observation is clear, the temperature in the bathtub is uniform.

Power supply AC(220±10%)V,50Hz
Capacity of cylinder 500ml
Heating power 700W,1000W
Temperature controller

(1) Range: Ambient to 100℃

(2) Accuracy: ±0.2℃
(3) Sensor: Pt100

Thermometer Mercury-in-glass thermometer. Scale division is 0.2℃





II. Main technical parameters and indicators

1, working power supply: AC 220V± 10%, 50Hz.

2, the bath volume: Ф 250 x 300 mm.

3. Tube capacity: 500ml.

4, heating power: 2100W

5. Temperature controller:

⑴ Temperature control range: 0℃ ~ 100℃.

(with refrigeration)

 SH102F figture

⑵ Temperature control accuracy: ±0.2℃.

⑶ Temperature sensor: industrial platinum resistance, and its grading number is PT100.

6, thermometer: the indexing value of 0.2℃ immersion mercury thermometer.

10 group density tubes:

Specification: 600-1010 kg/m after

Dividing value: 0.5

Length: 300 mm





OUR service

We advocate a technical marketing model, is a professional service, a pre-sale service, in-sales service and after-sales service throughout the body of trusted professional services.

Pre-sales service to provide customers with pre-sales technical advice, design of the test plan, assist users to complete the test, assist users in making inquiries for special auxiliary equipment for components.

After the contract is signed, we still negotiate and communicate with the user, confirm the specific test items and specific test requirements of the user, and communicate with the user's user department or user further. To ensure that the equipment provided to the user can fully meet the overall requirements of the user.

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.



Density tester for petroleum product  GB/T1884,ISO 3675,ASTM D1298 Standard Density tester for petroleum 0

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
