Product Details:
|
| Standard: | GBT6540 SHT0168 | Key Words: | Petroleum Product Chroma Tester |
|---|---|---|---|
| Key Words1: | Chroma Tester For Petroleum Products | Warranty: | 12 Months |
| Color Dial: | 26 Pieces Of 14 Light Holes | Color Comparing Tube: | 32 Mm, 120~130 Mm High Non-colorful Flat Bottom Glass Tube |
| High Light: | soil lab instruments,soil testing laboratory equipment |
||

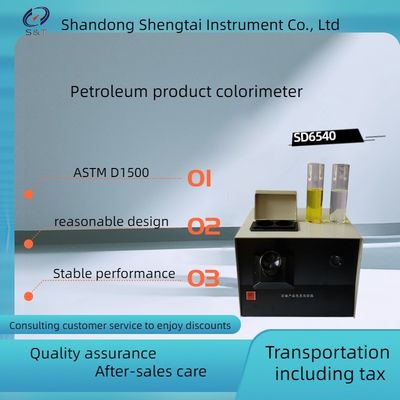

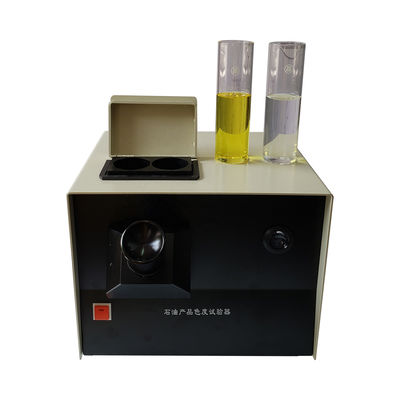

SD6540 Petroleum product chroma tester is suitable for the determination of color of various lubricating oil and other petroleum products according to SH/T0168-92 "Petroleum product chroma determination method" and GB/T6540.
Chroma Tester for Petroleum Products
The determination method is to inject the sample of petroleum product to be determined into the colorimetric tube, and then compare it with the standard color sheet to determine its chromaticity color number.
Performance characteristics:
Observation eyepiece consists of concave lens and convex lens, can see two semicircular colors at the same time
Optical eyepiece with light adjustment and focus ability, easy to use
Reasonable structure design, convenient operation and use
4 color numbers correspond to ASTM D1500, GB/T6540 and ISO color numbers
| item | value |
| Warranty | 12Months |
| Place of Origin | China |
| Brand Name | Zhiwei Electric |
| Model Number | SD6540 |
| Power | Electronic |
| Name | Petroleum product chromaticity tester |
| Keyword | Petroleum Products Chroma Meter |
| Standard | GB/T6540 SH/T0168 |
| Power supply | 220V 50Hz |
| Oils can be tested | transformer oil, lube oil, turbine oil |
| Warranty | 12 Months |
| Color dial | 26 pieces of 14 light holes |
| Color comparing tube | 32 mm, 120~130 mm high non-colorful flat bottom glass tube |
| Size | 45cm*42cm*35cm |
| Gross weight | 6 kg |
Technical parameters:
1 Light source: 220V, 100W, temperature of 2750±50K internal frosted emulsion bulb
2: colorimetric tube diameter Φ 32 mm, 120 ~ 130 mm colorless flat glass tubes
3 standard color wheel: 26 Φ 14 light hole, of which 25 respectively order # 1-25 color standard
color glass piece, 26 hole for blank
| No | Name | Number | Unit | Note |
| 1 | host | 1 | 台 | |
| 2 | Colorimetric tube | 4 | 个 | |
| 3 | Creamy white internal frosted bulb | 1 | 个 | |
| 4 | fuse tube | 1 | 个 | 10A |
| 5 | Operating instruction | 1 | 份 | |
| 6 | packing list | 1 | 份 | |
| 7 | Certificate of approval | 1 | 份 |
