ASTM D445 and Astm D7279 Petroleum Kinematic Viscosity tester for heavy oil, crude oil, dark oilu

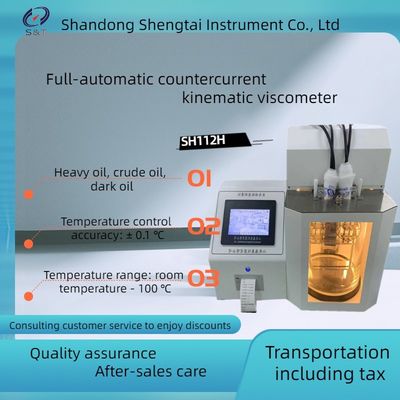

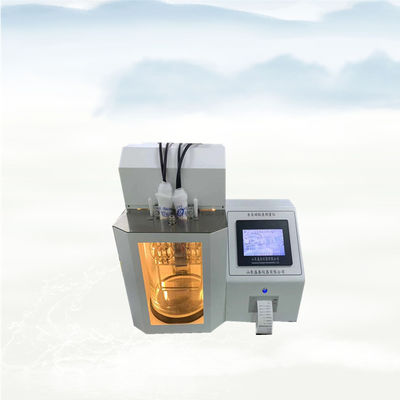

      SH112H automatic dark-colored petroleum kinematic viscosity tester is designed and manufactured according to the requirements of the standard GB/T11137 "dark-colored petroleum product kinematic viscosity method" and SY2409 dark-colored petroleum product kinematic viscosity measurement method. It is suitable for the determination of dark-colored petroleum products and heavy oil.

    Automatic constant temperature, viscosity testing, cleaning, drying viscometer, without personnel random operation, the operator in the lofting, can leave the scene, the instrument can automatically complete all tasks.

Meet the standard: GB/T11137

Testing products: heavy oil, crude oil, dark oil and other petroleum products

Test results: automatic print out results automatically

ASTM D445 and Astm D7279 Petroleum Products Kinematic Viscosity Tester Automatic Oil Kinematic Viscosity Bath/tester

automatic petroleum kinematic viscosity tester for crude oil

Black petroleum products--Determination of kinematic viscosity(reverse-flow method) and calculation of dynamic viscosity

 Main technical features

1. Large color touch screen display.

2. Adopt 32-bit microprocessor as the control core.

3. The main parts and electronic components of the instrument are imported devices with good stability.

4. The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying, automatic U disk output and other functions.

5. Fast and stable temperature control, heating rate >

5 ℃ / min.

6. Equipped with LED soft light, uniform filling light, easy to observe.

7. With viscometer parameter storage function.

★9, with date password setting function.

★11, with TCP network transmission function(optional).

★12, can be uploaded and connected to LIMIS system(optional).

★13, can expand the memory to 16G microcomputer.(optional).

II. Main technical indexes and parameters

Working viscometer: Cannon - Fenske capillary tube, according to GB/T11137 standard requirements.

Number of measurements: 2 groups.

Temperature range: room temperature -100℃

Temperature control accuracy: ±0.1℃.

Measuring accuracy: ±0.1 seconds

Maximum timing time: 999.9 seconds.

Viscosity measurement range: 0.4-2000mm2 /s

Power supply: AC220V±10%, 50Hz.

Maximum power: 2000W.

Ambient temperature :(0 ~ 40)℃.

Storage: 199 sets of historical data can be stored for easy query;

Result output: at the same time can be equipped with U disk output function, output to the PC for long-term storage

Output format: The output format of the result USB flash disk is CSV or EXCEL.

★ Data extension: laser printer interface, can be linked to HP1108 laser printer (optional).

★ Data protection: with date password setting function.

Standard printing: standard micro printer automatic measurement automatic thermal printing

★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade

★ Data management: can be connected to LIMIS system(optional).

★ Data memory: microcomputer instrument memory can be expanded to 16(optional).
