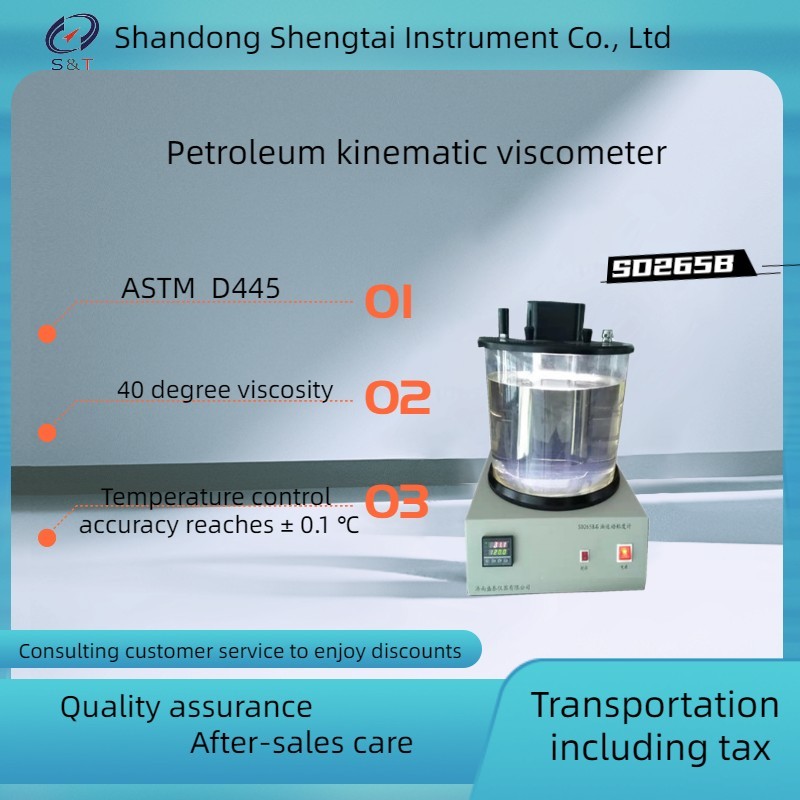

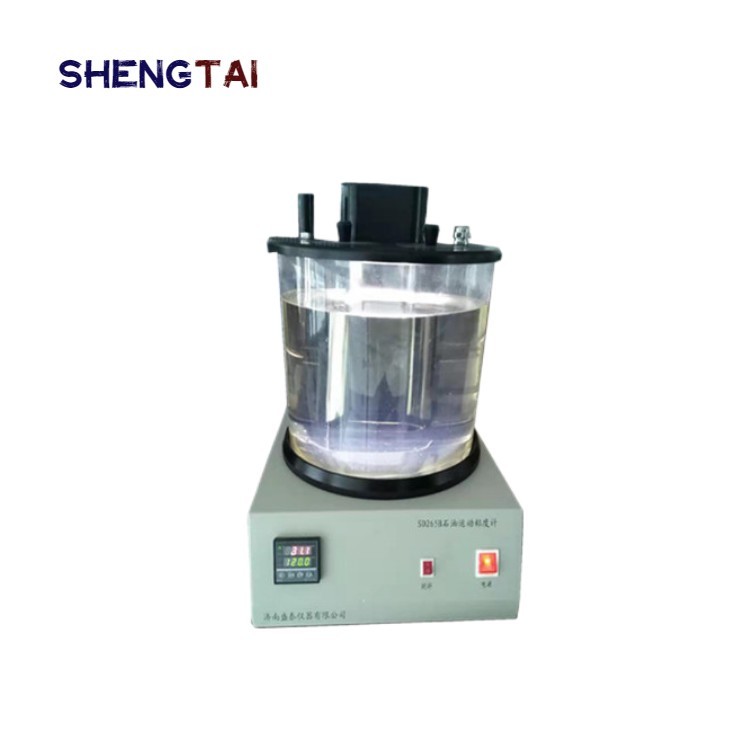

Petroleum Kinematic Viscometer SD265B Intelligent Digital Display Temperature Controller
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SD265B | Working Power Supply | AC 220±10%, 50Hz. |
---|---|---|---|
Heating Device | Electric Heating, Power 1800W. | Stirring Motor | Power 6W, Speed 1200r/min |
Temperature Control Accuracy | ±0.1℃ | Relative Humidity | ≤ 85%. |
Highlight | gluten food tester,fat analyzer machine |
SD265B oil kinematic viscosity meter manufacturing in line with the law of the People's Republic of China industry standard SY/T5651 the kinematic viscosity of petroleum products tester technical conditions of specified requirements, applicable to according to the standard of the People's Republic of China GB/T265 the kinematic viscosity of petroleum products determination method and dynamic viscosity calculation method "regulation, the determination of liquid petroleum products (Newton liquid) at a constant temperature under the condition of kinematic viscosity.ASTMD445
I. Main technical features
1. The instrument adopts the form of all-in-one machine, and the control switch adopts the form of light touch key. It has the advantages of novel design, compact structure, beautiful and generous.
2, Adopt intelligent digital display temperature controller, rapid temperature control, quick response, small overshoot, temperature control accuracy up to ±0.1℃.
3, the use of hard glass tank and electric mixing device, the sample observation is clear, the temperature in the bathtub is uniform.
4. Two groups of tests can be carried out simultaneously.
II. Main technical parameters and indicators
Working power supply | AC 220±10%, 50Hz. |
Heating device | electric heating, power 1800W. |
Stirring motor | power 6W, speed 1200r/min |
Temperature control range | room temperature ~ 100℃ range of temperature can be set. |
Temperature control accuracy | ±0.1℃. |
Ambient temperature |
room temperature ~ 35℃. relative humidity≤ 85%. |
Overall dimension: 320*380*530mm weight: 12kg |
If the kinematic viscosity is measured at 100 degrees, transformer oil and stopwatch are required
Packing list:
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Water bath crock | 1 | piece | 1 |
3 | Water bath top cover assembly | 1 | piece | It has two capillaries |
4 | thermometer | 1 | piece | thermometer |
5 | power cord | 1 | piece | |
6 | fuse tube | 1 | piece | 10A |
7 | Capillary viscometer | 4 | piece | Any 4 viscosity tubes that comply with GB/T265 |
8 | Operating instruction | 1 | copy | |
9 | Wash ears ball | 1 | piece | |
10 | packing list | 1 | copy | |
11 | Certificate of approval | 1 | copy |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
Est. Time(days) | 6 | 20 | 30 | To be negotiated |
