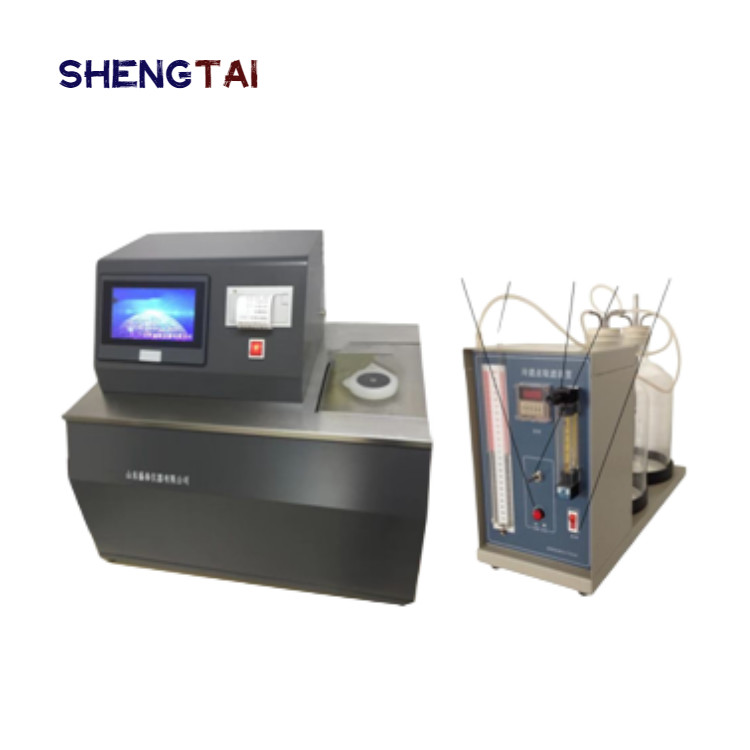

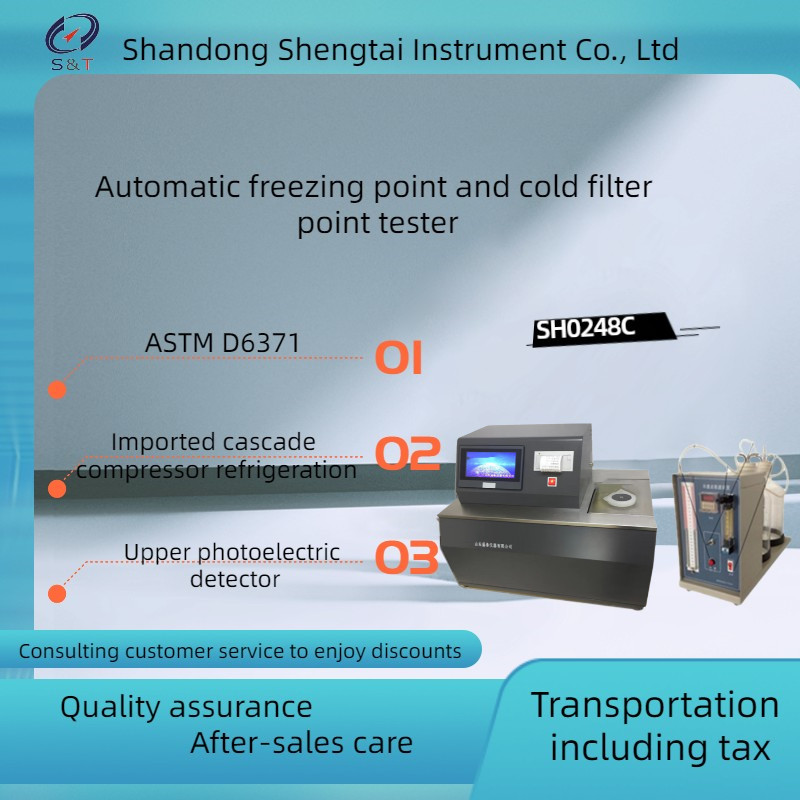

Fully automatic freezing point and cold filtration point measuring instrument, single hole SH0248C

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH0248C
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH0248C Temperature Measurement Range -70 ~ 50℃
Pressure Measurement Range 0 ~ 200.0 KPa Resolution 1 Pa
Number Of Test Samples 2 Cooling Method Air Cooling
High Light

tablet hardness tester


pharmatest hardness tester

Leave a Message
Product Description

SH0248C of solidifying point cold filtration point tester is based on national standard national standard GB/T510 "solidifying point measurement of oil products and on the basis of SH/T 0248, adopt modern advanced technology, mechanical, optical, electronic and computer technology into an organic whole, can automatically finish the solidifying point and cold filtration point of petroleum products testing, the instrument adopts photoelectric detection technology, automatic inclined glass tube method, imported compressor refrigeration system to ensure that meet the requirements of refrigeration and depth.

Instrument features:

embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;

Color touch screen;

The test results can be stored;

You can view historical data;

Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.


1. Upgraded to 7-inch TFT color LCD display;

2. Refrigeration mode: fully enclosed and efficient refrigeration compressor.

3. Cold trap for test: 2.

4. Detection method: spectral detection

5, can store 199 groups of historical data, convenient query;

At the same time can be equipped with U disk output function.

6, standard micro printer automatic measurement automatic thermal printing (standard)

7. After the completion of the test, if there is no personnel to operate, set the automatic closing time of the refrigerator within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument.

8, test interval: cold filter point 1℃ freezing point 2℃.

9, temperature sensor: imported PT 100 probe

10, refrigeration medium: metal bath

★11. Laser printer interface, can be linked to HP1108 laser printer (optional)

★12, with date password setting function.

13, standard micro printer automatic measurement automatic thermal printing

★14, with TCP network transmission function

★15, can be uploaded and connected to LIMS system

★16. Can expand the memory of the microcomputer to 16G

Technical parameters:

  Model SH0248C of solidifying point cold filtration point tester
  Applicable standards GB/T510, SH/T 0248
  Temperature measurement range -70 ~ 50℃
  Pressure measurement range 0 ~ 200.0 kPa;
  Resolution 1 pa
  Number of test samples 2
  Temperature measuring element PT100
  Cooling method air cooling
  Refrigeration mode compressor refrigeration
  Printing dot matrix printing of 20 Chinese characters
  Display 128×64 Chinese characters display
  Storage mode 199 sets of historical data can be stored for easy query;
  Results output at the same time can be equipped with U disk output function, output to the PC for long-term storage
  Data extension laser printer interface, can be linked to HP1108 laser printer (optional).
  Output format the output format of the result USB flash disk is CSV or EXCEL.
Data protection

with date password setting function.


Standard printing

standard micro printer automatic measurement automatic thermal printing


Remote upgrade

with TCP network transmission function, can be later software remote upgrade


Data management

can be connected to LIMS system


Data memory microcomputer instrument memory can be expanded to 16G.

packing list



S/N Name Unit Quantity Remarks
1 Automatic cold filter point tester set 1
2 Cold filtration point suction filtration device set 1
3 Cold filter point test tube piece 2
4 Pipette piece 2
5 Suction head assembly set 2 Brass housing, nut, strainer, etc
6 Freezing point test tube set 2
7 Condensation point sensor set 2
8 Plastic tie piece some
9 Silicone tube left and right piece 2
10 Fuse piece 2 Length and width: 100mm x2mm
11 Power cord piece 1
12 Instruction copy 1
13 packing list copy 1
14 Certificate warranty card copy 1

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
