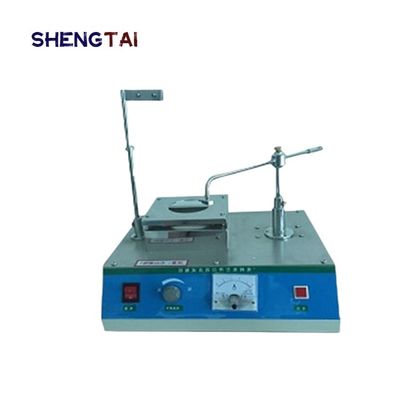

Determination of flash point of plasticizers SD3536 semi-automatic open flash point tester
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SD3536 | Power Supply | AC(220±10%)V, 50Hz. |
---|---|---|---|
Temperature Sensor | RTD, PT100 | Ambient Temperature | (-10~50)ºC |
Relative Humidity | ≤85% | Maximum Power Consumption | 650W |
Highlight | rice processing machine,rice hulling machine |
SD3536 semi-automatic open flash point meter is designed and manufactured in accordance with the requirements specified in the People's Republic of China standard GB/T3536-2008 "Petroleum Products - Determination of Flash Point and Ignition Point - Cleveland Open Cup Method". It is suitable for measuring the flash point and ignition point of petroleum products except fuel oil and open flash point not less than 79 ℃, and also supports the determination of GB/T1671-2008 plasticizer flash point.
The open flash point is applicable to the determination of the flash point and ignition point of petroleum products except fuel oil and petroleum products with an open flash point not lower than 79 ℃
Main technical parameters and indexes
1. Power supply | AC(220±10%)V, 50Hz. |
2. Heating device | electric furnace heating, no flame, explosion-proof, power 0-600W continuous adjustable. |
3. Temperature control | room temperature ~ 400℃, grading 2℃, technical conditions in line with the technical conditions of liquid thermometer used in petroleum products test GB/T514 provisions |
4. Temperature display | LCD screen shows temperature parameters. The range is 0ºC~400ºC, accuracy is 0.1ºC. |
5. Ignition device |
(1) Ignition source: gas (or other civil combustible gas, the same below);
(2) Nozzle aperture: 0.6 〜 0.8 mm. |
6. Temperature sensor | RTD, PT100 |
7. Ambient temperature | (-10~50)ºC |
8. Relative humidity | ≤85% |
9.Maximum power consumption | 650W |
10. Package size: 380mm * 290m * 260mm Weight: 10kg
|
Packing List
S/N | NAME | UNIT | Quantity | Remarks |
1 | Open flash point meter | set | 1 | |
2 | Special brass oil cup | piece | 1 | |
3 | Special thermometer | piece | 1 | |
4 | instructions | copy | 1 | |
5 | Certificate of conformity warranty card | copy | 1 |
Customers need to provide their own: air source and air source required pressure reducing valve
