GB/T6532 Crude Oil Salt Content Analyzer Extractor 500ml

Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd.
Certification GB/T6532 ASTM D6470
Model Number SH6532
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Extractor Complies With GB/T6532 Standard Heating Power Of Extractor 300W
Working Power Supply AC (220V ± 10V) 50Hz Instrument Size 300 * 360 * 700 Mm
Packaging Size 410 * 450 * 820 Mm Packaging Weight 2kg Wooden Crate
Highlight

Crude Oil Salt Content Analyzer 500ml

,

GB/T6532 Crude Oil Extractor

,

Crude Oil Testing Equipment with Warranty

Leave a Message
Product Description
Top Pulling Crude Oil Salt Content Tester Single Hole 500ml Flask ASTM D6470
Product Specifications
Attribute Value
Extractor Complies with GB/T6532 standard
Heating power of extractor 300W
Working power supply AC (220V ± 10V) 50Hz
Instrument size 300 * 360 * 700 mm
Packaging size 410 * 450 * 820 mm
Packaging weight 2kg wooden crate
Product Description

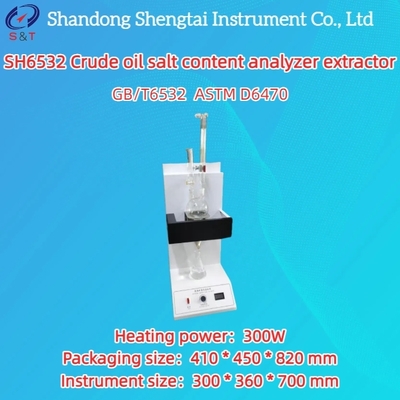

SH6532 Crude oil salt content analyzer extractor

The crude oil salt content analyzer extractor is suitable for measuring the salt content (mass fraction) range of crude oil from 0.0005% to 0.15% and heavy petroleum products such as residual oil and fuel oil. It is also applicable for determining the situation where used turbine oil and marine fuel oil are contaminated by seawater. When the required precision is not greater than the range specified in this method, it can also be used for other products.

The SH6532 crude oil salt content analyzer extractor is designed and manufactured in accordance with the requirements specified in the Chinese standard GB/T6532 "Determination of Salt Content in Crude Oil and Its Products".

Standard: GB/T6532 ASTM D6470

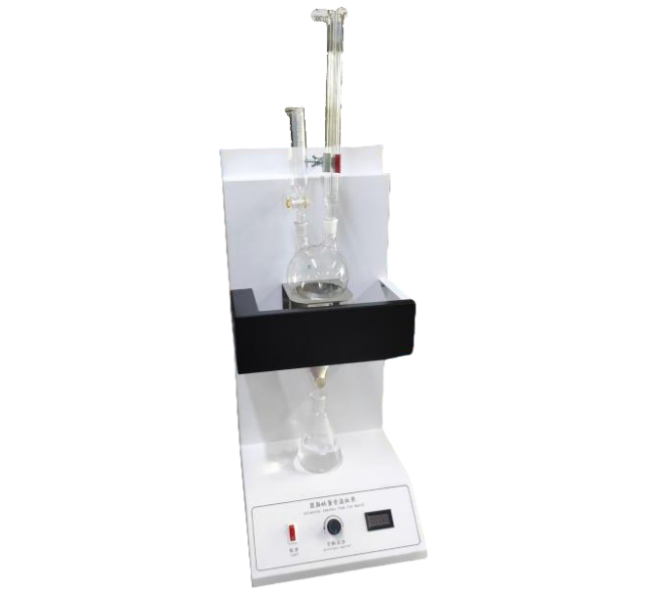

Main Structure of the Instrument
  • Extraction unit: Consisting of a flask and a heating part, with a flask volume of 500ml; the heating part is composed of an electric heating wire wrapped around the lower end.
  • Column shaped dropper funnel: Used to add hot toluene, anhydrous ethanol, CH3C0CH3 and other reagents for quantitative separation.
  • Condenser: It condenses the distilled gas
  • Temperature control knob: Used to heat the test solution that needs to be heated
  • Separating funnel piston: The control piston for the discharge of solution from the extractor
  • Triangle bottle: Grinding mouth triangular bottle, used to receive the solution released from the flask.
  • Aviation plug: Working power plug for extractor heating wire
GB/T6532 Crude Oil Salt Content Analyzer Extractor 500ml 0
Technical Parameters
Parameter Value
Extractor Complies with GB/T6532 standard
Heating power of extractor 300W
Working power supply AC (220V ± 10V) 50Hz
Instrument size 300 * 360 * 700 mm
Packaging size 410 × 450 × 820 mm
Packaging weight 2kg wooden crate

Note: The customer shall provide their own magnetic stirrer and potentiometric titrator

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Configuration
Number Name Quantity Unit Note
1 Salt content analyzer for crude oil and its products 1 Unit
2 500ml flask (with heating wire and plug) 1 Piece
3 Condenser 1 Piece
4 Cylindrical dropper funnel 1 Piece
5 Grind mouth triangular flask (with lid) 1 Piece
GB/T6532 Crude Oil Salt Content Analyzer Extractor 500ml 1
Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

  • The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity
  • The materials and main components provided meet the technical requirements specified in the technical documentation
  • The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
  • We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees
  • Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
  • After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee
Packaging and Delivery
  • Packaging of goods: standard wooden or cardboard boxes
  • Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners
