Soybean Wheat Automatic Particle Colorimeter D/8 Lighting Wavelength Range 400 ～ 700nm ST807

  • Soybean Wheat Automatic Particle Colorimeter D/8 Lighting Wavelength Range 400 ～ 700nm ST807
  • Soybean Wheat Automatic Particle Colorimeter D/8 Lighting Wavelength Range 400 ～ 700nm ST807
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd
Model Number ST807
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Lighting Mode D/8, Including Specular Component Included (SCI) Integrating Sphere Diameter 100mm
Lighting Source Full-waveband Balanced LED Light Source Wavelength Range 400 ～ 700nm
Dimensions 202*264*152mm Weight Approximately 3kg
Highlight

Automatic Particle Colorimeter D/8 Lighting

,

Soybean Wheat Colorimeter 400-700nm

,

Edible Oil Testing Colorimeter ST807
Leave a Message
Product Description

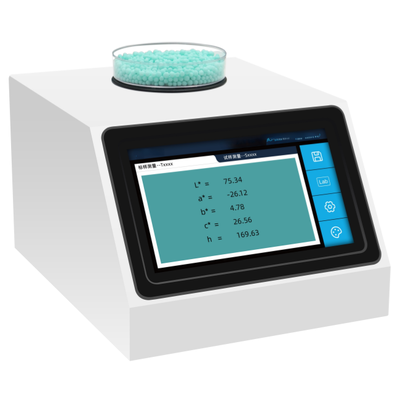

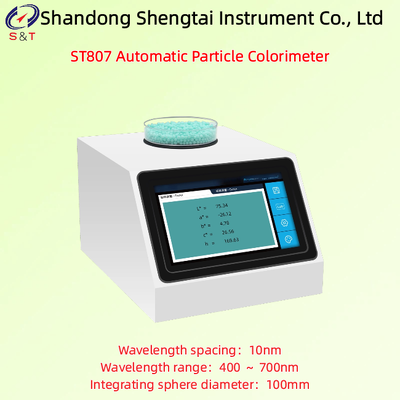

ST807 Automatic Particle Colorimeter

Soybean wheat Automatic Particle Colorimeter D/8 Lighting Wavelength range 400 ～ 700nm ST807

ST807 Automatic Particle Colorimeter is suitable for colorimetric determination of grain particles such as soybeans, wheat, corn, and rice, providing a rapid testing method for measuring L*A*B values of grains. It can also quickly assess the quality colorimetry of various whole grains and oilseeds. The instrument can be used in laboratories, workshops, field operations, and other diverse settings.

Product Features

1.50mm ultra-large measurement aperture for better measurement of non-uniform samples

2.2 million lumens of light source lifespan, immune to light source damage

3. 10,000 data storage capacity, store at will

4. The test port is fully sealed to prevent particles and dust from entering the instrument

Technical parameters

Lighting mode D/8, including specular component included (SCI)
Integrating sphere diameter 100mm
Lighting source Full-waveband balanced LED light source
Wavelength range 400 ～ 700nm
Reflectance measurement range 0 ～ 200%, resolution 0.01%
Wavelength spacing 10nm
Measurement aperture 50nm
Observation light sources A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-8
Standard observers 2° standard observer and 10° standard observer
Measurement time approximately 1s
Color Spaces CIE LAB, CIE LUV, LCh, Hunter Lab, Yxy, XYZ, Musell, s-RGB, βxy
Colorimetric Indicators WI (ASTM E313-20, ASTM E313-73, CIE, AATCC, Hunter, Taube, Berger Stensby), YI (ASTM D1925, ASTM E313-20, ASTM E313-73), Tint (ASTM E313-20), Metamerism Index Milm, Colorfastness to Soiling, Colorfastness to Fading, ISO Whiteness, R457, A Density, T Density, E Density, M Density, Cover Power, Force, Strength
Color difference formulas ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc, ΔE*94, ΔE*00, ΔEab (Hunter), 555 hue classification
Repeatability Standard deviation △E*ab within 0.03 (Measurement conditions: After preheating calibration, the average of 30 measurements of the white board with 3-second intervals)
Inter-tile difference △E*ab ≤ 0.4 (average of 12 color tile measurements in BCRA II series)
Maximum data storage capacity 10,000 entries
Dimensions 202*264*152mm
Weight approximately 3kg
Power supply 100 ～ 240V 50/60HZ
Measurement method single measurement, average measurement
Light source lifespan 10 years or 2 million cycles
Display 7-inch IPS full-view LCD screen
System Languages Simplified Chinese, English
Data interface USB port
Operating temp range 5 ～ 40℃, relative humidity 80% or lower (at 35℃), no water vapor condensation
Storage temp range -20 ～ 45℃, relative humidity 80% or lower (at 35℃), with no moisture condensation
Standard Configuration Petri dish, black chamber, whiteboard, data cable, power cable

Soybean Wheat Automatic Particle Colorimeter D/8 Lighting Wavelength Range 400 ～ 700nm ST807

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Soybean Wheat Automatic Particle Colorimeter D/8 Lighting Wavelength Range 400 ～ 700nm ST807
