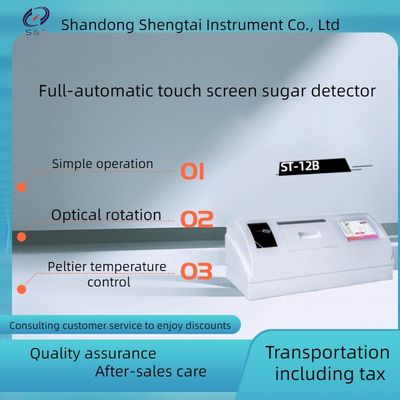

ST-12B Fully Automatic Touch Screen Sugar Detector Polarimeter Built In Parcel Patch
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | ST-12B | Measuring Range | Optical Rotation± 89.99° Brix ±259°Z |
---|---|---|---|
Reproducibility | (standard Deviation S) 0.002° (optical Rotation)Minimum Transmittance Of Measurable Sample: 1% | Working Wavelength | 589.3nm |
Temperature Control Range | 15°C-35°C (Peltier) | Data Storage | 1000 |
Temperature Control Type Power | 220V±22V, 50Hz±1Hz, 250W | ||
Highlight | ST-12B touch screen sugar detector,automatic touch screen sugar detector,Edible Oil Testing Equipment ST-12B |

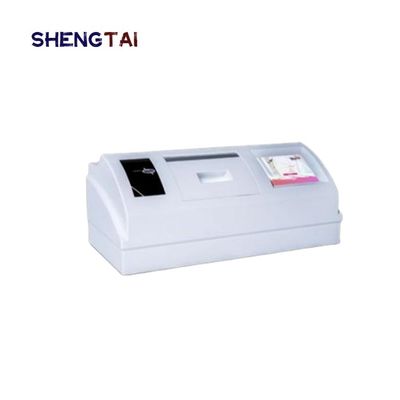

Edible Oil Testing Equipment ST-12B Fully Automatic Touch Screen Sugar Detector Polarimeter Built-In Parcel Patch
ST-12B The automatic touch screen sugar detector is an instrument for measuring the optical rotation of substances. The concentration, purity, Brix or content of the sample can be determined by determining the optical rotation of the sample. Widely used in sugar, pharmaceutical, drug testing, food, spices, monosodium glutamate and chemical, petroleum and other industrial production, scientific research, teaching departments, for laboratory analysis or process quality control, through the determination of screwing photometry, Brix, can analyze and determine the concentration, content and purity of substances, etc., widely used in sugar, pharmaceutical, petroleum, food, chemical and other industrial departments and related colleges and research units.
Performance characteristics
- LED cold light source instead of traditional sodium lamp and tungsten halogen lamp;
- It can be used for optical rotation, specific rotation, concentration, Brix measurement;
- Built-in Peltier temperature control for improved accuracy and stability.
- LED light sources with a service life of more than 100,000 hours replace traditional sodium lamps and tungsten halogen lamps, making up for the shortcomings of short life and easy damage;
- In order to ensure the measurement accuracy of the results, the instrument temperature control technology adopts built-in Peltier instead of the traditional flow cell; The measuring range has been upgraded to ±89° (optical rotation), which improves the limitations of the measured sample and improves the selectability of the measurement sample;
- The control adopts systematic, highly integrated, fully automated, convenient and easy to operate;
- The multi-level synchronous search function can be upgraded, and historical data can be retrieved according to test date, sample number, etc.
Main technical parameters:
Measurement mode | optical rotation, specific rotation, concentration, Brix |
Measuring range | optical rotation± 89.99° Brix ±259°Z |
Measurement accuracy: | ±0.01° (-45°≤ optical rotation ≤+45°) ±0.02° (optical rotation <-45° or optical rotation >+45° GB/T35887-2018 White sugar test method Minimum reading: 0.001° (optical rotation) |
Reproducibility |
(standard deviation s) 0.002° (optical rotation)Minimum transmittance of measurable sample: 1%
|
Light source | LED cold light source + high-precision interference filter |
Working wavelength |
589.3nm
|
Temperature control mode |
built-in Peltier
|
Temperature control range |
15°C-35°C (Peltier)
|
Temperature control accuracy |
|
Output mode | USB, RS232 |
Data storage |
|
Display mode | 7 inch TFT true color touch screen |
Test tube: |
200mm, 100mm ordinary type, 100mm |
Temperature control type Power: | 220V±22V, 50Hz±1Hz, 250W |
Instrument net weight | 24kg |
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Sodium lamp | 1 | piece | standby |
3 | Test tube | |||
100mm | 1 | piece | ||
200mm | 1 | piece | ||
4 | Test the tube protector | 8 | tablets | spare |
5 | Test tube rubber washer | 8 | pieces | spare |
6 | Power cable,RS232interface cable | 1each | ||
7 | Fuse(1.5A,3A) | 8 | pieces | 4each. spare |
8 | Screwdriver | 2 | handfuls | |
9 | Instrument plastic sleeve | 1 | pieces | |
10 | Instruction manual | 1 | copy | |
11 | Product certificate | 1 | copy |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
