Feed Neutral Acid Washing Fiber Tester 6 Test Units Testing 90min Van Soest Fiber Analysis ModE ISO 16472
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shandong Shengtai Instrument Co., Ltd |
| Certification | GB/T 20806, NY/T 1459, ISO 16472(NDF), ISO 13906(ADF、ADL), AOAC 2002.04(NDF) |
| Model Number | ST116A |
| Minimum Order Quantity | 1 |
| Packaging Details | wooden crate |
| Delivery Time | 7 - 15 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 sets / year |
Product Details
| Measurement Objects | Various Feed, Grains, Cereals, Food, And Other Agricultural And Sideline Products That Require Measurement Of Crude Fiber, Neutral Fiber, And Acidic Fiber Content; | Number Of Test Samples | 6 Per Test |
|---|---|---|---|
| Repetitive Error | Cellulose Content Below 10%, Absolute Value Error ≤ 0.4; Cellulose Content Above 10%, Relative Error ≤ 4%; | Measurement Time | Approximately 90 Minutes Are Required On The Instrument |
| Power Supply | AC220V 50HZ | Power | 3.3KVA |
| Highlight | Feed Neutral Acid Washing Fiber Tester,Van Soest Fiber Analysis Tester,ISO 16472 Fiber Testing Equipment |
||
Product Description

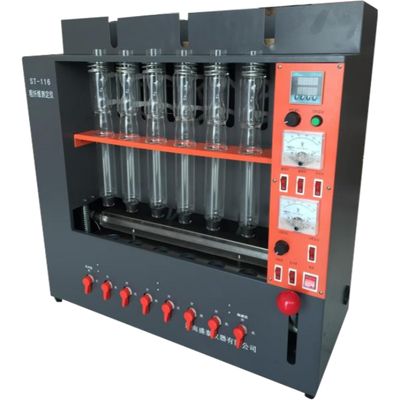

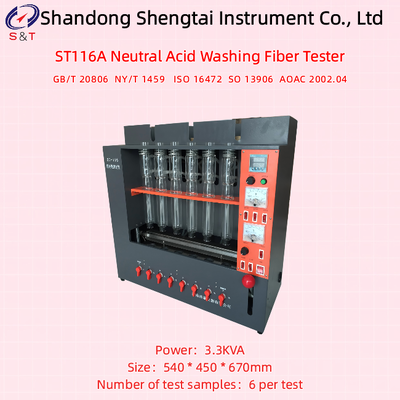

ST116A Neutral Acid Washing Fiber Tester
Feed and grist Neutral Acid Washing Fiber Tester 6 test units testing 90min Van Soest fiber analysis method ISO 16472
Standard: GB/T 20806, NY/T 1459, ISO 16472(NDF), ISO 13906(ADF,ADL), AOAC 2002.04(NDF)
ST116A neutral acidic fiber analyzer is an instrument that uses Van Soest's washing fiber analysis method to determine neutral washing fiber (NDF) and acidic washing fiber (ADF), and performs weight determination to obtain the neutral washing fiber and acidic washing fiber content of the sample. Using neutral detergent or acidic detergent, boil the sample under specific conditions, then repeatedly filter it in a specific crucible, rinse it twice with C3H6O, move the crucible into a drying oven at 100 degrees Celsius for 3 hours, and then weigh and calculate.
Technical Indicators:
| Measurement objects | various feed, grains, cereals, food, and other agricultural and sideline products that require measurement of crude fiber, neutral fiber, and acidic fiber content; |
| Number of test samples | 6 per test |
| Repetitive error |
Cellulose content below 10%, absolute value error ≤ 0.4; Cellulose content above 10%, relative error ≤ 4%; |
| Measurement time | Approximately 90 minutes are required on the instrument |
| Power supply | AC220V 50HZ |
| Power | 3.3KVA |
| Size | 540 * 450 * 670mm |
| Weight | 28kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Fiber crucible | 6 | Piece | |
| 3 | Glass Flask | 3 | Piece | |
| 4 | Power cord | 1 | Piece | |
| 5 | Fuse tube | 1 | Piece | 10A in the safety seat |
| 6 | Instructions | 1 | Copy | |
| 7 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
