Cereal Coarse Fiber Analyzer Or Raw Fiber Tester 6 Test Units Acid-Base Digestion Method GB/T 6434

  • Cereal Coarse Fiber Analyzer Or Raw Fiber Tester 6 Test Units Acid-Base Digestion Method GB/T 6434
  • Cereal Coarse Fiber Analyzer Or Raw Fiber Tester 6 Test Units Acid-Base Digestion Method GB/T 6434
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd
Certification GB/T 5515, GB/T 6434, ISO 6865, AACC
Model Number ST116
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Measurement Objects Various Feed, Grain, Cereal, Food And Other Agricultural And Sideline Products That Require Measurement Of Crude Fiber Content Number Of Test Samples 6 Per Test
Repetitive Error The Crude Fiber Content Is Below 10%, With An Absolute Value Error Of ≤ 0.4; The Crude Fiber Content Is Above 10%, With A Relative Error Of ≤ 4% Measurement Time Approximately 90min Are Required On The Instrument (including 30min Of Acid, 30min Of Alkali, And Approximately 30min Of Filtration And Washing)
Power Supply AC220V 50HZ Power 2.3KVA
Highlight

Cereal coarse fiber analyzer 6 test units

,

Raw fiber tester acid-base digestion method

,

Edible oil testing equipment with warranty
Leave a Message
Product Description

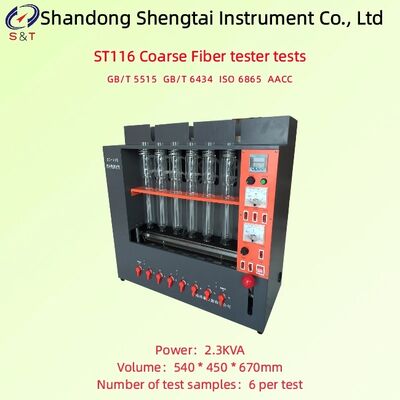

ST116 Coarse Fiber tester tests

Cereal Coarse Fiber Analyzer or Raw Fiber Tester 6 test units Acid-base digestion method GB/T 6434

Standard: GB/T 5515 GB/T 6434 ISO 6865 AACC

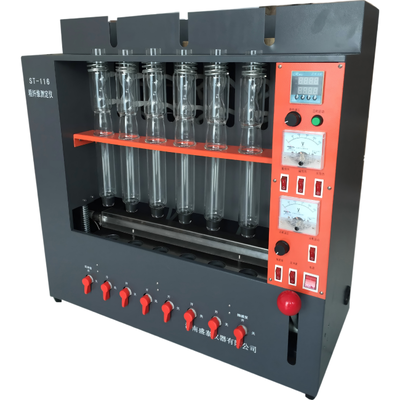

ST116 crude fiber analyzer is an instrument that digests samples using the commonly employed acid-alkali digestion method and determines the crude fiber content by weight measurement.

Using accurately measured concentrations of acid and alkali, the sample is digested under specific conditions. Soluble substances are then removed with ethanol, and the amount of minerals is deducted after high-temperature incineration, yielding the crude fiber content. This is not a precise chemical entity but rather a roughly measured component under internationally recognized and mandatory conditions, primarily consisting of cellulose with small amounts of hemicellulose and lignin.

Suitable for the determination of crude fiber content in various grains, feed, etc., with test results complying with the national standards GB/T 5515 and GB/T 6434.

Hot Sale Crude Fiber Tester /Coarse Fiber Tester

Coarse Fiber Analyzer or Raw Fiber Tester

Raw Fiber Analyzer Lab Coarse Fiber Tester

Coarse Fiber Analyzer or Raw Fiber Analyzer

Technical parameter

Measurement objects various feed, grain, cereal, food and other agricultural and sideline products that require measurement of crude fiber content
Number of test samples 6 per test
Repetitive error

The crude fiber content is below 10%, with an absolute value error of ≤ 0.4;

The crude fiber content is above 10%, with a relative error of ≤ 4%
Measurement time Approximately 90min are required on the instrument (including 30min of acid, 30min of alkali, and approximately 30min of filtration and washing)
Power supply AC220V 50HZ
Power 2.3KVA
Volume 540 * 450 * 670mm
Weight 28kg
Packaging size 715 * 510 * 765mm
Packaging weight 40kg

Cereal Coarse Fiber Analyzer Or Raw Fiber Tester 6 Test Units Acid-Base Digestion Method GB/T 6434

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Fiber crucible 6 Piece
3 Glass Flask 3 Piece
4 Power cord 1 Piece
5 Fuse tube 1 Piece 10A in the safety seat
6 Instructions 1 Copy
7 Certificate warranty card 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Cereal Coarse Fiber Analyzer Or Raw Fiber Tester 6 Test Units Acid-Base Digestion Method GB/T 6434
