Lovibond Colorimeter Red Test Range 0.1～79.9 Lovibond Unit Magnification 1.9X AOCS CC 13E-92

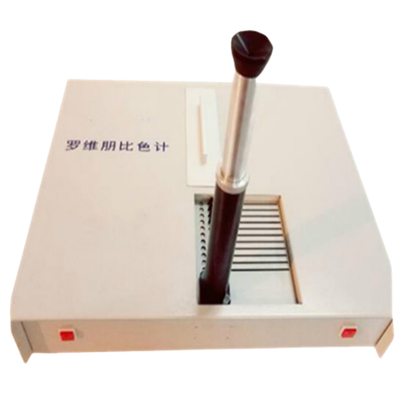

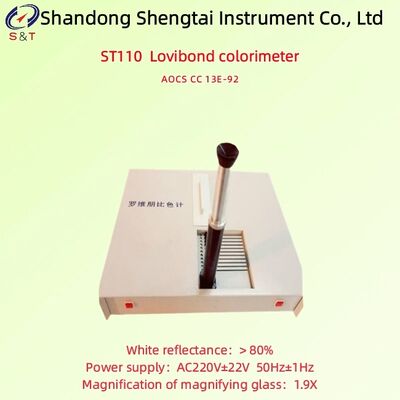

ST110 Lovibond colorimeter

Lovibond colorimeter Red test range 0.1～79.9 Lovibond unit Magnification 1.9X AOCS CC 13E-92

Standard: AOCS CC 13E-92

ST110 Lovibond colorimeter is a visual colorimeter, it using the international general Lovibond color degrees as the standard, can measure various liquids, colloids, solid and powder of chroma samples. Instrument has the advantages of simple structure, firm, the operation is very convenient, very suitable for cooking oil and other industrial and agricultural products, color measurement, in order to achieve the daily quality control.

Working principle

The instrument comes with a set of standard color filters ranging from light to dark, divided into three color series: red, yellow, and blue. The working principle of the instrument is based on the principle of color subtractive mixture matching. The optical system of the Lovibond colorimeter eyepiece refracts light at 90° and divides the observation field into two simultaneously observable parts, one for observing the sample color and the other for observing the reference color (Lovibond color unit standard filter). By appropriately selecting a combination of color filters to achieve the best match with the color of the tested sample, the Lovibond filter value displayed by the instrument is the measurement result of the tested sample.

Parameters:

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Quality assurance

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The instruments and materials provided are brand new, comply with national quality standards, and come with manufacturer's certification;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of consumable parts).

----We are responsible for free maintenance of any instrument quality issues that arise during the warranty period. If the equipment malfunctions due to the user's responsibility, we will repair it and charge a reasonable fee.

----We offer lifelong discounts on spare parts for the equipment, and provide lifelong maintenance and repair services for the entire machine.

----After the warranty period expires, if the user requires maintenance and technical services, we will only charge for the cost.
