Activated Carbon Water Capacity Analyzer RT ～ 800℃ Carbon Layer Heigh 25 ± 1mm ASTM D3466

  • Activated Carbon Water Capacity Analyzer RT ～ 800℃ Carbon Layer Heigh 25 ± 1mm ASTM D3466
  • Activated Carbon Water Capacity Analyzer RT ～ 800℃ Carbon Layer Heigh 25 ± 1mm ASTM D3466
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd
Certification GB/T 7702.9, ASTM D3466, ISO 1017
Model Number ST-62
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Control Method Touchscreen Operation Temp Measurement Range RT ～ 800℃
Thermocouple Accuracy Furnace Temperature Thermocouple: Class A; Sample Thermocouple: 0.5 Class Temp Resolution 1℃
Voltage AC 220V 50Hz Total Power Consumption <2000W
Highlight

Activated Carbon Water Capacity Analyzer ASTM D3466

,

Carbon Layer Height 25mm Water Analyzer

,

Edible Oil Testing Equipment RT 800℃
Leave a Message
Product Description

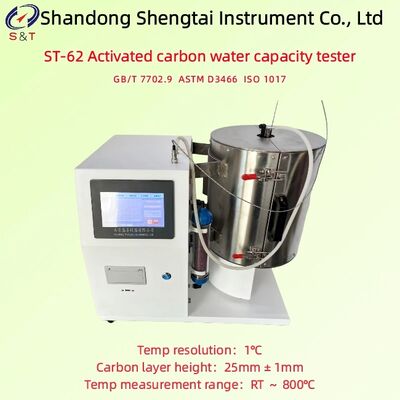

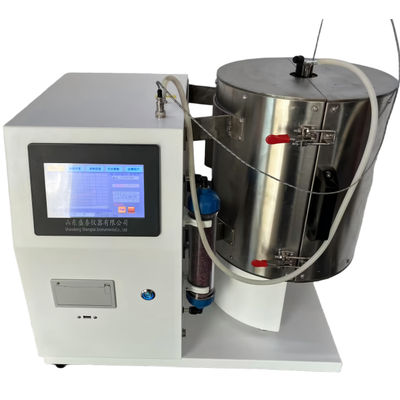

ST-62 Activated carbon water capacity tester

Activated carbon water capacity analyzer RT ～ 800℃ Carbon layer heigh 25 ± 1mm ASTM D3466

Standard: GB/T 7702.9 ASTM D3466 ISO 1017

ST-63 Fully Automatic Activated Carbon Ignition Point Tester is designed for determining the ignition point of activated carbon, in accordance with the GB/T 7702.9 standard "Test Methods for Coal-Based Granular Activated Carbon - Determination of Ignition Point." The tester features touch-screen microcomputer control, automatically recording temperature points at each time interval during the experiment. Users can analyze the ignition characteristics of the tested activated carbon post-experiment.

Working principle: The automatic control and determination of the reference ignition point of granular activated carbon in flowing air. It accurately obtains the ignition point, visually displaying the time-temperature curve and results during the heating process.

Key Technical Parameters:

Control method Touchscreen operation
Temp measurement range RT ～ 800℃
Thermocouple accuracy Furnace temperature thermocouple: Class A; Sample thermocouple: 0.5 Class
Temp resolution 1℃
Experimental Time Automatically determine results and automatically stop the experiment
Heating rate

approximately 10℃/min before 150℃;

2℃～3℃/min after 150℃
Ignition point Automatically calculated ignition point
Plotting the curve Automatically generate experimental curves
Carbon layer height 25mm ± 1mm
Burn tube National standard quartz burn tube
Flow measurement range 0L/min ～ 20L/min
Database Function Available (can export test process data)
Result Output Equipped with USB flash drive output function, enabling long-term storage on PC
Output Format The result USB flash drive output format is CSV or Excel
Standard printing features Standard mini printer, automatic measurement, automatic thermal printing
Total power consumption <2000W
Voltage AC 220V 50Hz
Instrument dimensions 665*480*560mm
Instrument weight 42.7kg
Packaging dimensions 775*515*650mm
Instrument weight Wooden case

Activated Carbon Water Capacity Analyzer RT ～ 800℃ Carbon Layer Heigh 25 ± 1mm ASTM D3466

Note: The appearance images and dimensions of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no separate notice will be provided.



Customer self provided:

1. Electronic balance

2. Drying oven

Packaging and Delivery:

1. Goods packaging: Standard wooden or cardboard boxes.

2. Internal packaging: The product is packaged with elastic pearl cotton, with hard wood boards and strong bandages fixed at the corners.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Filter funnel 1 piece
3 Suction filter bottle     In host
4 Power cord 1 Piece
5 Fuse tube 1 Piece 10A in the safety seat
6 Instructions 1 Copy
7 Certificate warranty card 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, comply with national quality standards, and have the manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The warranty period for the entire equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to the user's responsibility for causing equipment malfunction, we are responsible for maintenance and reasonable charges.

----Lifetime discounted supply of components for equipment, and lifelong maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Activated Carbon Water Capacity Analyzer RT ～ 800℃ Carbon Layer Heigh 25 ± 1mm ASTM D3466
