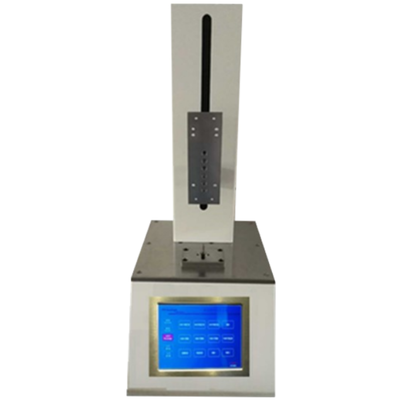

Hair Friction And Tensile Analyzer Test Speed 1 - 500mm/Min LCD Display Travel 360mm ST-16AS

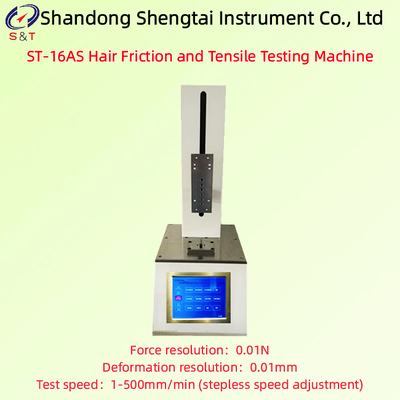

ST-16AS Hair Friction and Tensile Testing Machine

Hair Friction and Tensile analyzer test speed 1 - 500mm/min LCD display travel 360mm ST-16AS

ST-16AS Hair Friction and Tensile Tester uses a robotic arm to move a toothed comb, enabling hair combing and measurement for assessing hair properties such as friction and tensile strength

ST-16AS Hair Friction and Stretch Testing Instrument primarily consists of a texture analyzer main unit (stand-alone version), dedicated software, spare probes, and accessories. Its basic structure typically includes a mechanical device capable of deforming the sample, a container for holding the sample, and a recording system that measures force, time, and deformation rate. The testing process involves measurements and result analysis centered around distance, time, and applied force. The texture analyzer primarily reflects texture characteristics related to mechanical properties, delivering results with high sensitivity and objectivity. The included dedicated software enables accurate quantitative processing of the results, allowing for objective and comprehensive evaluation of the material using quantifiable metrics.

Product Introduction:

● Physical property testing for friction and stretching of hair, hair products, etc.

● Testing indicators: tensile strength, friction, and various physical property indicators.

● The testing process is completed via the LCD touchscreen, featuring built-in modes such as the standard mode (single experiment).

● The implemented testing methods include penetration, tensile force, pressure, and so on.

● The transmission mechanism employs a ball screw for smooth and precise operation, while the imported servo motor ensures low noise and accurate control.

● Equipped with a 24-bit high-precision AD converter and high-precision force sensing elements, ensuring the rapid and accurate acquisition of force data by the instrument.

● Real-time display of force-time, force-deformation, and force-displacement during testing

Main technical par

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
