Touch Screen Texture Analyzer Test Speed 1 - 500mm/Min Dough Hardness Travel Distance 360mm ST-16A

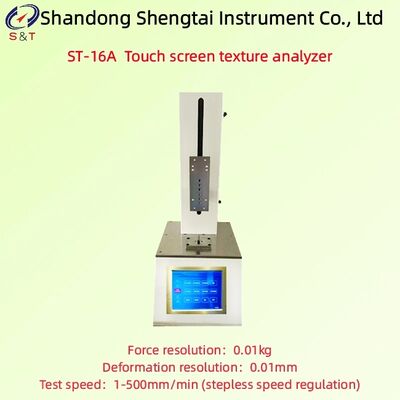

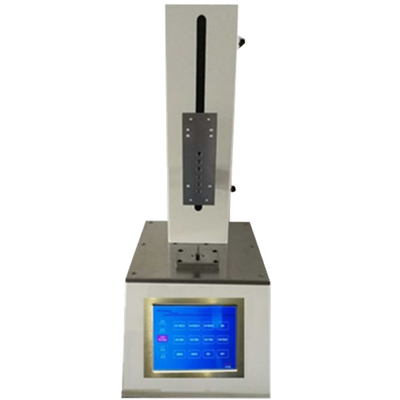

ST-16A Touch screen texture analyzer

Touch screen texture analyzer test speed 1 - 500mm/min Dough hardness Travel distance 360mm ST-16A

ST-16A touchscreen texture analyzer, as a sensory physical property analysis instrument, can be used to measure physical property indicators of samples in fields such as food, biology, and chemical industries. It is capable of assessing hardness, tensile force, strength, pressure, and more for food and dough samples

ST-16A Texture Analyzer primarily includes the main unit of the texture analyzer, a standalone version of the dedicated software, spare probes, and accessories. Its basic structure generally consists of a mechanical device capable of inducing deformation in samples, a container for holding the samples, and a recording system that measures force, time, and deformation rate. Testing involves measurements and analysis based on distance, time, and applied force. The texture analyzer primarily reflects texture characteristics related to mechanical properties, delivering results with high sensitivity and objectivity. The results can be accurately quantified using the accompanying dedicated software, enabling objective and comprehensive evaluation of the product through quantitative indicators.

Product Introduction:

● Physical property testing for food products such as meat products, grain and oil foods, cereals, candies, and fruits and vegetables.

● Testing indicators: hardness, tensile strength, pressure, and various physical property indicators.

● The testing process is completed via the LCD touch screen, featuring built-in modes such as the standard mode (single experiment).

● It can perform basic physical property testing and analysis on the vast majority of food samples, such as baked goods, dairy products, meat products, fruits and vegetables, grains and oils, gels, and processed snacks.

● Achievable testing methods include penetration, hardness, pressure, and so on.

● The transmission mechanism employs ball screws, ensuring smooth and precise operation. Imported servo motors are used, featuring low noise and accurate control.

● Equipped with a 24-bit high-precision AD converter and high-precision force sensing elements, ensuring rapid and accurate force data acquisition for the instrument.

● Real-time display of force-time, force-deformation, and force-displacement during testing

Main technical par

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
