Flour Salt LCD Whiteness Tester Analog D65 Lighting D/O Lighting Observation ISO 2470

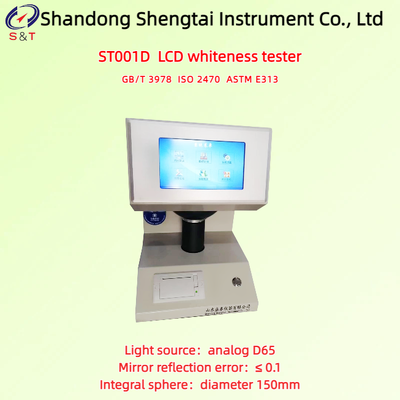

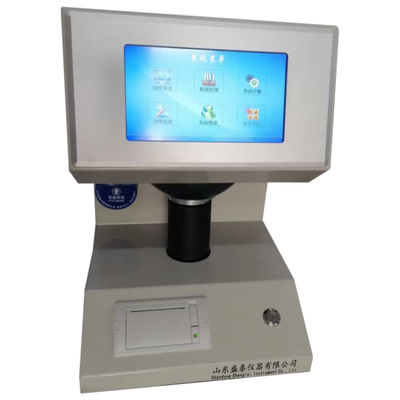

ST001D LCD whiteness tester

Flour LCD whiteness tester analog D65 Lighting D/O lighting observation ISO 2470

Standard: GB 8940.2 GB 2913 GB/T 22427.6 GB 1543 GB 1840 GB/T 3978 GB 7974 GB 13025.2 GB/T 23774 GB 7933 ISO 2470 ASTM E313

ST001D liquid crystal whiteness tester is widely used in the fields of medicine and food, flour, starch, paper making, printing, textile printing and dyeing, ceramic enamel, building materials, chemical industry, salt making and so on. It is used to measure the whiteness of objects, and can also measure the opacity, transparency, light scattering coefficient, light absorption coefficient and ink absorption value of paper.

This instrument can measure the whiteness of building materials and nonmetallic mineral products.

Hunter whiteness WH can also be determined.

Instrument function:

● Measure ISO Brightness (R457 Brightness), which can also be used to measure the fluorescence whitening of samples that emit fluorescent substances.

● Measure the brightness stimulus value.

● Measure opacity.

● Measure transparency.

● Measure the light scattering coefficient and absorption coefficient.

● Measure the whiteness of blue light.

Performance Characteristics

● This instrument adds a printer and adopts imported thermal printing movement, without using ink and ribbon, without noise when working, and with fast printing speed.

● The instrument has memory function.

● Even if the power is off for a long time, the memory zero, calibration, standard sample and reference sample value and other useful information will not be lost.

Main performance characteristics

● The instrument has a novel appearance and compact structure, and advanced circuit design effectively ensures the accuracy and stability of measurement data.

● The instrument simulates D65 illumination.

● The instrument adopts d/o illumination to observe geometric conditions. The diameter of the diffuse sphere is 150mm, and the diameter of the test hole is 30mm. It is equipped with a light absorber to eliminate the influence of specular reflection of the sample.

● The instrument adopts a large screen high pixel LCD display module, which displays measurement and statistical results in Chinese and prompts operation steps.

● The user-friendly human-machine interface makes instrument operation simple and convenient.

● The instrument has added a printer and adopts imported thermal sensitive printer cores, which do not require the use of ink and ribbons, have no noise during operation, and have fast printing speed.

● The instrument has power outage protection, and calibration data will not be lost after power outage.

Main technical indicators

● GB 8940.2: Method for determination of pulp whiteness.

● GB 2913: Plastic whiteness test method.

● GB/T22427.6 Determination of Starch Whiteness

● GB 1543: Determination of opacity of paper.

● GB 1840: Method for determination of industrial potato starch.

● GB/T 3978 "Standard Lighting Bodies and Geometric Conditions"

● GB7974: Determination of whiteness of paper and paperboard (d/o method);

● GB 13025.2: General Test Methods for Salt Industry - Determination of Whiteness

● GB/T 23774 "General Method for Determination of Whiteness of Inorganic Chemical Products"

● GB7933: Determination of diffuse reflectance factor of pulp, paper and paperboard (d/o method)

● ISO 2470: Method for determining the diffuse reflectance factor of blue light on paper and paperboard (ISO whiteness);

Technical Specifications

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Package list
