ASTM D381 Aviation Fuels And Gasoline Existent Gum Tester 5 Holes RT ～ 300℃ Digital Display
Product Details
| Evaporation Bath Type | Aluminum Bath Block | Evaporation Bath Size | φ260mm * 130mm |
|---|---|---|---|
| Number Of Test Holes | 5 | Test Hole Size | φ51mm * 70mm |
| Temp Range | RT ～ 300℃ | Working Power Supply | AC220V ± 10% 50Hz |
| Highlight | ASTM D381 aviation fuel gum tester,gasoline existent gum tester digital display,edible oil testing equipment with warranty |
||
Product Description

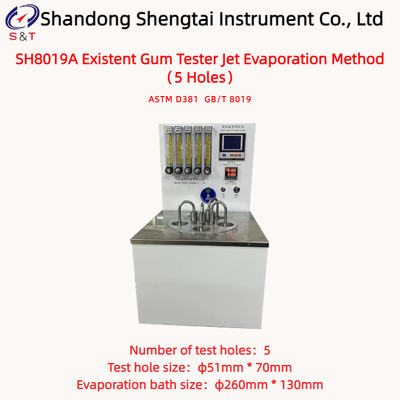

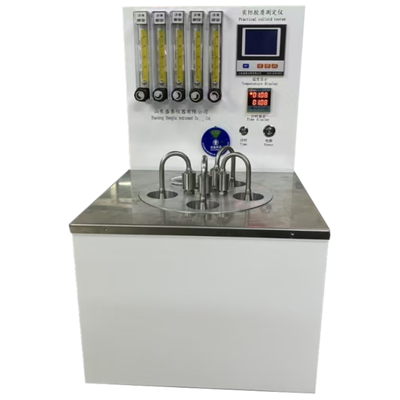

SH8019A Existent Gum Tester Jet Evaporation Method 5 Holes
Standard: ASTM D381,GB/T 8019
SH8019A Existent Gum Tester Jet Evaporation Method Petroleum Tester is specially used for measuring the actual gum content in aviation gasoline and automotive gasoline.
It is suitable for the actual gum test of aviation gasoline and automobile gasoline according to the method specified in ASTM D381 equivalent to GB/T 8019-2008 "Determination of fuel gum content by jet evaporation method". It is equipped with special oil-free silent air compressor.
Air Jet Evaporation ASTM D381
ASTM D381 Apparatus for Existent Gum Content of Aviation Fuels, and Motor
ASTM D381 Aviation Fuels and Gasoline Existent Gum Tester
Jet Evaporation Method Petroleum Tester ASTM D381 evaporation
ASTM D381 Existent Gum Tester for Fuel (Steam jet evaporation method)
Technical parameters
| Evaporation bath type | aluminum bath block |
| Evaporation bath size | φ260mm * 130mm |
| Number of test holes | 5 |
| Test hole size | φ51mm * 70mm |
| Temp range | RT ～ 300℃ |
| Working temp | 160 ～ 165℃ |
| Temp control method | automatic temperature control |
| Temp display | digital display |
| Flow display | displayed by a floating ball air flow meter |
| Working pressure of air pressure reducing valve | ＜0.1MPa |
| Jet nozzle outlet air flow rate | 600mL per hole/min |
| Input power | ＜2000W |
| Working power supply | AC220V ± 10% 50Hz |
| Instrument size | 355 * 490 * 595mm |
| Instrument weight | 42.5kg |
| Packaging size | 555 * 420 * 645 mm |
| Packaging weight | 51.5kg (wooden box 9kg) |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Set | 1 | |
| 2 | Trumpet nozzle | Piece | 5 | |
| 3 | Beaker | Piece | 5 | |
| 4 | purifier | Set | 1 | |
| 5 | Instruction | Copy | 1 | |
| 6 | Packing list | Copy | 1 | |
| 7 | Certificate warranty card | Copy | 1 |
