Vapor Pressure Tester For Petroleum Products RT ～ 100℃ Reid Method 0 ～ 200KPa ASTM D323

  • Vapor Pressure Tester For Petroleum Products RT ～ 100℃ Reid Method 0 ～ 200KPa ASTM D323
  • Vapor Pressure Tester For Petroleum Products RT ～ 100℃ Reid Method 0 ～ 200KPa ASTM D323
Place of Origin CHINA
Brand Name Shandong Shengtai Instruments Co., Ltd
Certification GB/T 8017 ASTM D323
Model Number SH8017
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Heating Power Of Water Bath 1600W Temp Range For Water Bath Use RT ～ 100℃
Temp Control Accuracy Of Water Bath ± 0.1℃ Pressure Measurement Range 0 ～ 200KPa
Environmental Temp -10℃ ～ 35℃ Relative Humidity ≤ 85%
Highlight

Vapor Pressure Tester petroleum products

,

Reid Method vapor pressure tester

,

ASTM D323 petroleum testing instrument
Leave a Message
Product Description

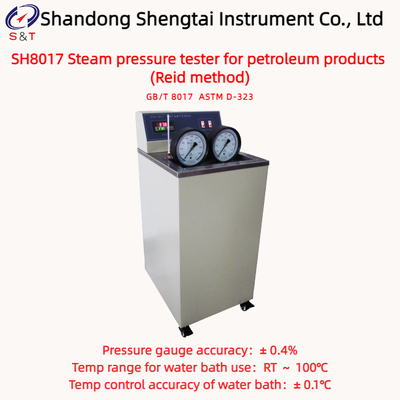

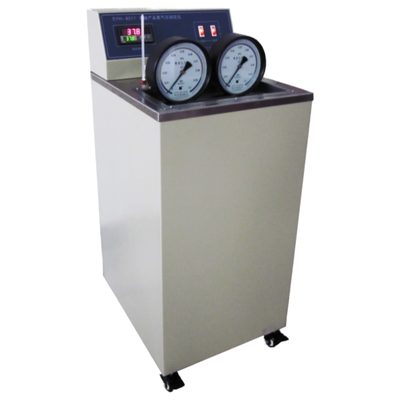

SH8017 Steam pressure tester for petroleum products Reid method

Standard: GB/T 8017 ASTM D323

SH8017 steam pressure tester for petroleum products is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T 8017 "steam pressure measurement method for petroleum products (Reid method)", ASTM D-323. It is suitable for measuring the steam pressure of gasoline, volatile crude oil and other volatile petroleum products.

Main technical indexes and parameters

Heating power of water bath 1600W
Temp range for water bath use RT ～ 100℃
Temp control accuracy of water bath ± 0.1℃
Pressure measurement range 0 ～ 200KPa
Pressure gauge accuracy ± 0.4%
Environmental temp -10℃ ～ 35℃
Relative humidity ≤ 85%
Working power supply AC220V ± 10% 50Hz
Power consumption of the whole machine not exceeding 1700W
Instrument size 485 * 405 * 980mm
Packaging size 1070 * 490 * 640mm
Packaging weight 58kg wooden crate

Vapor Pressure Tester For Petroleum Products RT ～ 100℃ Reid Method 0 ～ 200KPa ASTM D323

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.



Packing list

S/N Name Unit Quantity Remarks
1 Vapor pressure meter Set 1
2 Steam bomb Set 2
3 Pressure gauge Piece 2
4 Mercury thermometer Piece 1
5 Instruction Copy 1
6 Packing list Copy 1
7 Certificate warranty card Copy 1

Vapor Pressure Tester For Petroleum Products RT ～ 100℃ Reid Method 0 ～ 200KPa ASTM D323
