ASTM D86 Automatic Diesel Distillation Apparatus Boiling Range

Standard: ASTM D1078 ASTM D86 ASTM D850 ISO3405 ISO918 IP123 IP195 GB/T 6536 GB/T 7534

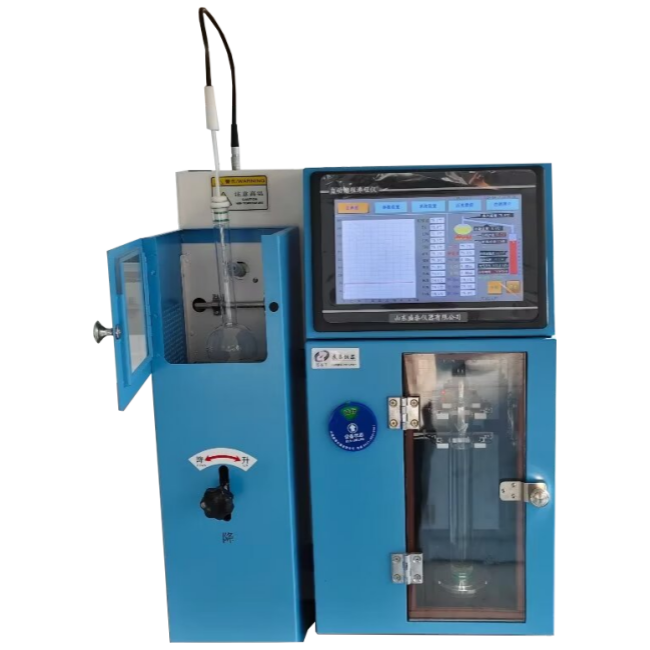

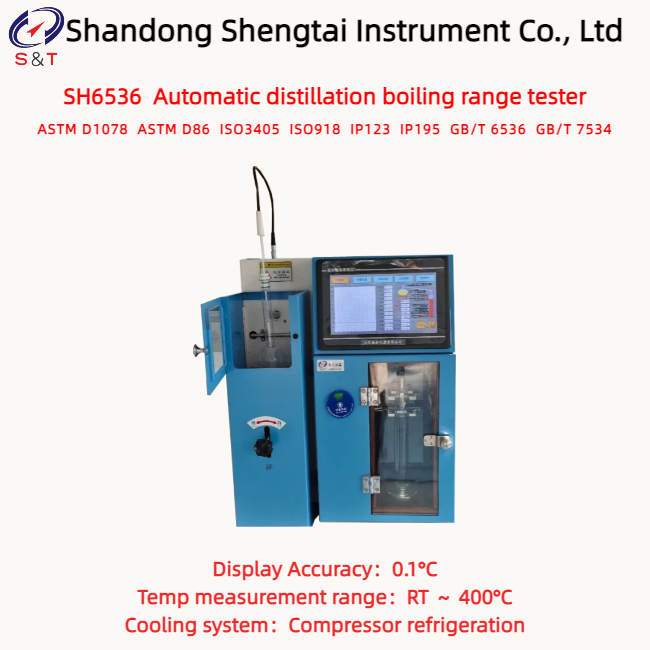

SH6536 Fully Automatic distillation boiling range tester features a color LCD display screen, Chinese menu-based human-machine interface, and guided operation, with the entire measurement process fully automated. It employs an embedded computer, imported industrial control computer, large-screen LCD touch screen, and a user-friendly human-machine interface for convenient testing operations. Utilizing microcontroller and intelligent control technology, the distillation process—temperature rise and cooling, distillate liquid level tracking, distillation rate control, recovered liquid volume control, temperature recording, and test result printing—are all automatically completed.

The distillation range refers to the temperature range from the initial boiling point to the final boiling point, representing the evaporation characteristics of oil products under specified conditions.

Boiling range: The temperature at which the first drop of liquid begins to condense in the condenser during distillation is the initial distillation temperature; the temperature near the end of distillation is the final distillation temperature, and the interval between these two temperatures is the boiling range

Complies with national standards

● YB/T 2303-2012 "Heavy Benzene"

● YB/T 5022-2016 "Distillation Range of Crude Benzene"

● GB/T 6536 "Determination of Distillation of Petroleum Products"

● GB/T 26984 "Determination of Distillation Range of Crude Oil"

● SH/T 0121 Technical Conditions for Distillation Range Determination Equipment of Petroleum Products

● GB/T 7534-2004 "Determination of Boiling Range of Volatile Organic Liquids for Industrial Use"

● GB 338-2011 "Determination of Boiling Range for Industrial Methanol in Chemical Raw Material Standards"

● GB/T 3146.1-2010 "Determination of Distillation Range of Industrial Aromatic Hydrocarbons and Related Materials Part 1: Distillation Method"

● GB/T 615-2006 General Method for Determination of Boiling Range of Chemical Reagents

● ASTM D1078, ASTM D86, etc.

Performance characteristics:

● Liquid Level Tracking: The system consists of a high-precision step-by-step American linear motor and imported photoelectric tracker

● Automatic Completion: The entire distillation process, including heating and cooling, distillate liquid level tracking, distillation rate control, recovery liquid volume control, temperature recording, and test result printing, is fully automated

● Real-time animation displays the experimental process, along with the recovery chamber temperature, volume, and real-time atmospheric pressure and condensation temperature

● The initial distillation temperature is detected by a fiber optic sensor

● Distillation electric furnace: The heating is automatically controlled to ensure the sample flows from the initial boiling point to 95% of its total volume, with the outflow rate adjustable within a set range per minute.

● Data determination: The initial distillation temperature and final distillation temperature can be provided, along with the temperature values at various percentage points and the initial flow velocity.

● Atmospheric pressure: Automatically detects the local atmospheric pressure and adjusts the temperature to standard atmospheric pressure

● Test conditions: The test can be stopped by selecting steam temperature or recovery volume

● Experimental Results: Store, query, and print test results, with data exportable via USB flash drive

● Cooling medium: Internal cooling circulation, coolant inspection and replenishment required every 3 years.

Technical Specifications:

● Automatic detection of the measuring cylinder and deflector plate function.

● Fire extinguishing system: Equipped with a fire extinguishing device, manual nitrogen fire suppression can be activated in case of a fire to prevent safety incidents such as the explosion of a heated distillation flask (nitrogen cylinders must be provided by the customer)

● Overtemperature Protection: When the heating temperature exceeds the preset safety threshold, the instrument automatically halts the experiment and activates fan cooling.

● Automatic Detection: Automatically detect and display temperature and flow rate time at every 5% volume point

● Stop Modes: Multiple automatic stop modes are available, such as automatic stop at the final distillation point, stopping upon reaching a set temperature, or stopping upon reaching a specified volume

● USB Data Export Function

★ Remote Upgrade: Equipped with TCP network transmission capability, enabling remote software upgrades in the later stage (optional)

★ Data Sharing: Accessible to the group company's limis system (optional)

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
