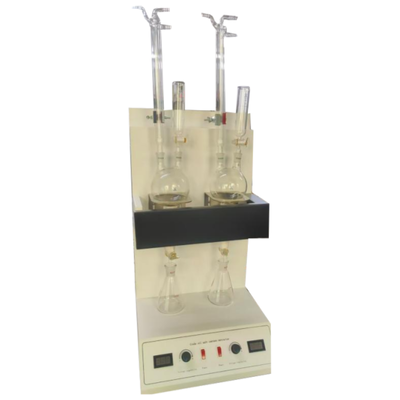

Dual Holes Turbine Oil Fuel Oil Crude Oil Salt Content Analyzer Heating 300W * 2 ASTM6470

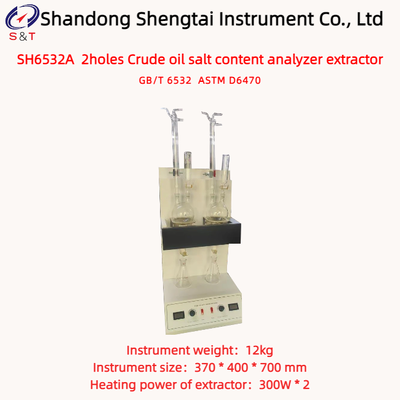

SH6532A 2holes Crude oil salt content analyzer extractor

Salt Content Tester For Crude Oil(Electrometric Method) Conforms to ASTM D6470 Petroleum Testing Equipment

ASTM D6470 Petroleum Products Lab Salt Content Tester/Salt in Crude Oil Analyzer

Crude Petroleum Salt Content Tester, Halides Content in Crude Oil Tester

Turbine Oil Fuel Oil Crude Oil Salt Content Tester

Crude Petroleum / Fuel Oil Salt Content Tester

SH6532A Salt Content Tester For Crude Oil is designed and made as per national standard of People’s Republic of China GB/T6532 Standard Test, Method for Salt Content of Crude Petroleum and Petroleum Products. It is suitable to determine total amount of halides (concentration from 0.002% to 0.02% (m/m) in the crude petroleum, reduced oil, cracked residue and fuel oil.

It can also be used to estimate seawater contamination of turbine oil and marine fuel oil. If test requirement on precision is within the range of this method, it can also be used to determine other products.

Main structure and installation

● Extraction unit: consisting of a flask and a heating part, with a flask volume of 500ml; the heating part is composed of an electric heating wire wrapped around the lower end.

● Column shaped dropper funnel: used to add hot toluene, anhydrous ethanol, acetone, etc. and perform quantitative separation.

● Condenser: It condenses the distilled gas.

● Water regulating valve: The inlet of the water regulating valve is connected to tap water, the outlet is connected to the inlet of the condenser, and the outlet of the condenser is connected to the sewer. Adjust the water inlet of the condenser through this valve.

● Temperature controlled electric furnace: used to heat the test solution that needs to be heated.

● Glass container: with a capacity of 1000ml, used for heating the test solution that needs to be heated.

● Triangle bottle: Grinding mouth triangular bottle, used to receive the solution released from the flask.

● Triangle bottle stopper: The stopper of a triangular bottle.

● 2-core aluminum plug: power plug for the heating wire of the extractor.

● Separating funnel piston: the control piston for the extraction device to discharge the solution.

● Electrical control box: the electrical part of the control instrument

● Attention: Voltage adjustment knob 1 (voltage adjustment knob 2) should be adjusted slowly when adjusting the voltage, so that the voltage rises slowly. It is not allowed to suddenly increase the voltage to prevent damage to the device.

Main technical parameters

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice. Continuous product development may require changes to product specifications and prices without prior notice.

Note: The customer shall provide their own magnetic stirrer and potentiometric titrator

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
