ASTM D6470 Petroleum Products Lab Salt Content Analyzer Test 0.0005% ～ 0.15% Turbine Oil

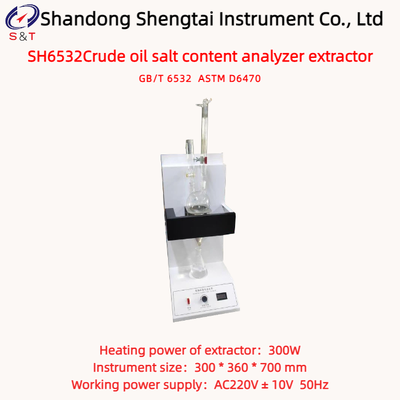

SH6532 Crude oil salt content analyzer extractor

Standard: GB/T 6532 ASTM D6470

Salt Content Tester For Crude Oil(Electrometric Method)Conforms to ASTM D6470 Petroleum Testing Equipment

ASTM D6470 Petroleum Products Lab Salt Content Tester/Salt in Crude Oil Analyzer

Crude Petroleum Salt Content Tester, Halides Content in Crude Oil Tester

Turbine Oil Fuel Oil Crude Oil Salt Content Tester

Crude Petroleum / Fuel Oil Salt Content Tester

The crude oil salt content analyzer extractor is suitable for determining the salt content (mass fraction) in crude oil, as well as heavy petroleum products such as residua and fuel oil, ranging from 0.0005% to 0.15%. It is also applicable for assessing the seawater contamination of used turbine oil and marine fuel oil. When the required precision does not exceed the scope specified by this method, it can be used for other products.

SH6532 crude oil salinity analyzer extractor is designed and manufactured in accordance with the requirements specified in the Chinese national standard GB/T 6532 "Determination of Salt Content in Crude Oil by Potentiometric Titration.".

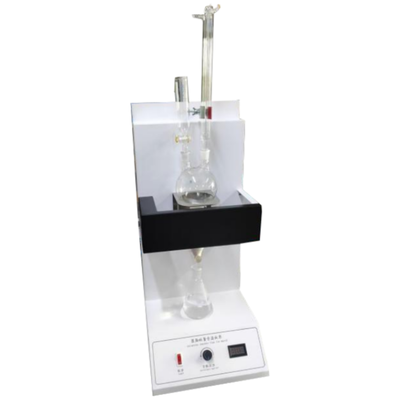

Main structure of the instrument

● Extractor: Consists of a flask and a heating unit, with the flask having a capacity of 500ml; the heating unit is composed of an electric heating wire wrapped around the lower end.

● Columnar dropping funnel: Used for adding reagents such as hot toluene, anhydrous ethanol, and acetone, and for quantitative liquid separation.

● Condenser: Functions to condense the distilled gas.

● Temperature adjustment knob: Used to heat the test solution that requires heating.

● Separating funnel piston: The control piston for discharging the solution from the extractor.

● Triangular flask: A ground-joint triangular flask used for collecting solutions released from a round-bottom flask.

● Aviation plug: Extractor heating wire power supply plug

Technical parameter

Note: The customer shall provide their own magnetic stirrer and potentiometric titrator

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
