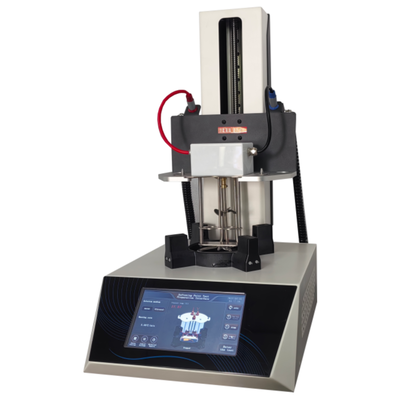

Automatic Softening Point Analyzer For Coal Tar Pitch RT ～ 200℃ Ring And Ball Mode ASTM D36

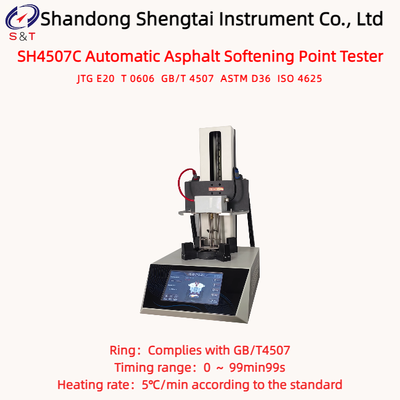

SH4507C Automatic Asphalt Softening Point Tester

SH4507C automatic asphalt softening point tester is designed and manufactured in accordance with the requirements specified in the industry standards JTG E20 "Test Code for Asphalt and Asphalt Mixtures in Highway Engineering" (T 0606 "Asphalt Softening Point Test (Global Method)" and GB/T 4507 "Determination of Softening Point of Petroleum Asphalt" of the People's Republic of China.

This instrument is suitable for measuring the softening point of various types of asphalt such as road petroleum asphalt, coal tar asphalt, liquid petroleum asphalt, etc. It is the preferred instrument for asphalt production enterprises, highway and bridge construction units, and relevant colleges, universities, and research institutions.

This instrument adopts technologies such as microcomputer control, laser automatic detection, LCD touch screen human-machine interface, screw stepper motor lifting, etc. It has the characteristics of linear heating, uniform stirring of bath solution, and automatic completion of sample detection. It is a highly automated, fast and convenient testing instrument for determining the softening point of asphalt, with accurate and reliable test results.

Instrument function principle: The asphalt softening point tester heats the solution medium and asphalt through a heating tube, and stirs the beaker with a magnetic stirrer to make the temperature uniform. The controller uses interpolation algorithm to control the output, making the medium rise linearly at 5 ℃/min. The asphalt in the test ring begins to slowly soften during the heating process. When it reaches the softening temperature point, the asphalt in the sample ring slowly drops in a droplet shape under the gravity of the steel ball. The average temperature when the asphalt in the two sample rings drops and comes into contact with the lower baffle is the asphalt softening point temperature.

Key Features:

● The temperature is controlled by the instrument without any human error.

● High precision temperature probe, sensitive to temperature response.

● Strong magnetic stirring device, more uniform test temperature

● LCD display screen, capable of real-time temperature display.

● Can measure high temperature, medium is water or glycerol.

Main technical indicators

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
