ASTM D3227 Distillate Fuels Mercaptan Sulfur Tester 0 ～ ± 1999.5mv Potentiometric Method

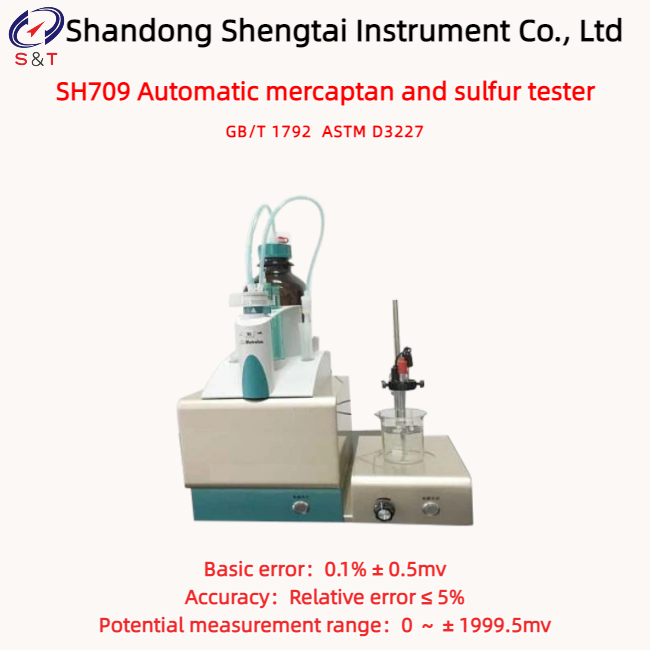

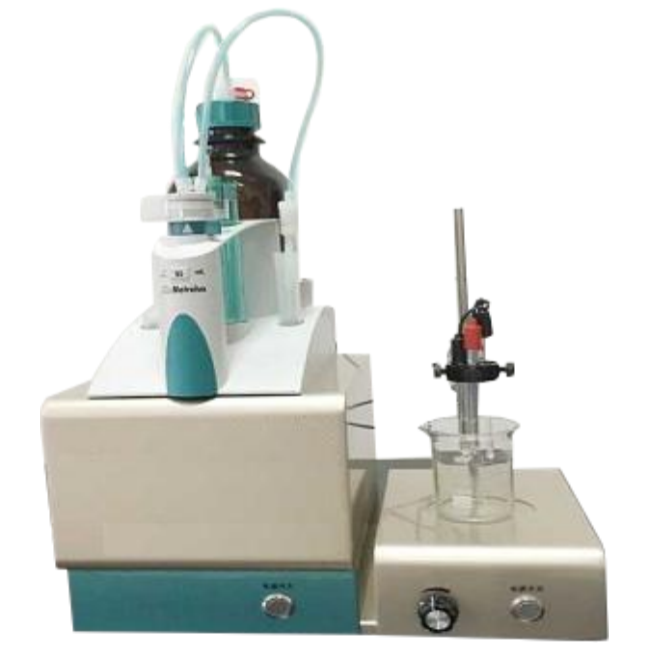

SH709 Automatic mercaptan and sulfur tester

Standard: GB/T 1792 ASTM D3227

SH709 mercaptan and sulfur measuring instrument conforms to GB/T 1792, ASTM D3227 and other standards. It is suitable for the determination of mercaptan sulfur in jet fuel, gasoline, kerosene and light diesel oil without hydrogen sulfide. The determination of mercaptan sulfur has important significance in the evaluation of odor of jet fuel, gasoline, kerosene and light diesel oil, the adverse effect on rubber parts of fuel system and the corrosion of fuel system.

SH709 Automatic mercaptan and sulfur tester using potential titration method measurement principle. The H2S-free sample was dissolved in isopropanol solvent of sodium acetate, and potentiometric titration was carried out with standard solution of silver alcohol nitrate. The pH glass electrode was used as reference electrode, and the mercaptan sulfur electrode was used as indicator electrode. The potentiometric spike between the two electrodes indicated the end point of titration. The mercaptan sulfur precipitates to silver mercaptan during titration.

Technical features:

● Complete set of instruments: host machine, titration unit, computer (including operating software), printer, etc.

● Windows operating platform, man-machine direct dialogue, convenient operation, with workstation function.

● It has the function of continuous titration.

● Real-time display of titration curve, storage and printing of titration curve, results and data.

● Automatic cleaning, automatic value filling.

● Automatic identification of the end point, automatic filter out false end point, and can be manually selected to judge the end point.

Technical indicators:

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
