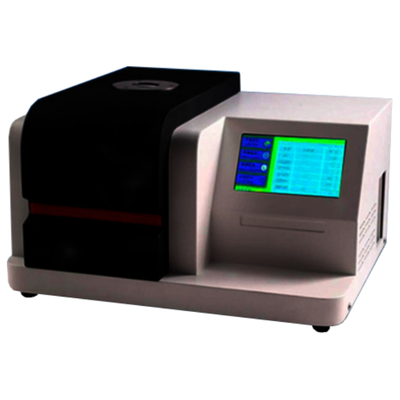

Crude Wax Precipitation Point Analyzer -40°C ～ 600°C Heating 0.1 ～ 100°C/Min SY T 0545

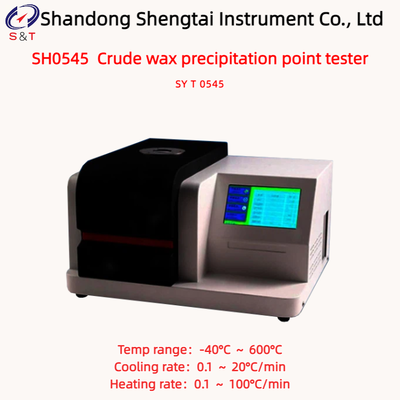

SH0545 Crude wax precipitation point tester

Standard: SY T 0545

SH0545 Automatic Crude Oil Wax Appearance Temperature Determination Instrument is strictly designed and manufactured in accordance with the SY/T 0545 standard for crude oil wax appearance thermal characteristics. It features touchscreen control, automatic judgment, and automatic computer curve analysis.

Wax precipitation point

The temperature at which wax crystals initially begin to precipitate from the liquid crude oil system, i.e., the starting temperature corresponding to the point where the sample curve deviates from the baseline and forms an exothermic peak, is denoted as Tc.

Heat the crude oil sample to a temperature above the wax appearance point, then cool it at a certain rate, recording the differential heat flow between the sample and the reference material at each temperature point. Plot the crude oil wax appearance curve with differential heat flow as the vertical axis and temperature as the horizontal axis.

Technical performance parameters:

● USB communication interface, strong versatility, reliable communication without interruption, supports self-recovery connection function

● The new all-metal furnace structure features superior baseline performance and higher precision. The indirect conduction heating method ensures excellent uniformity and stability, reducing pulsed radiation and outperforming traditional heating modes.

Note: The appearance images and dimensions of the instrument are for reference only. Updates to the instrument may result in minor changes, and no further notice will be provided.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
