Touch Screen Oil Calorific Value Analyzer MCU Embedded System Heat Capacity 10000J/K ASTM D240

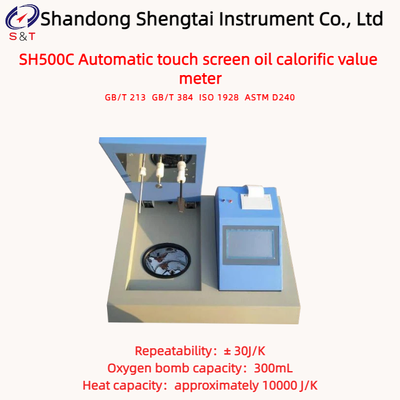

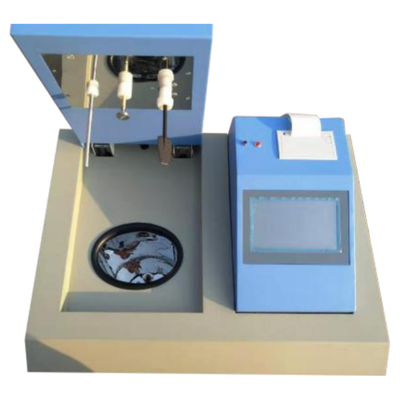

SH500C Automatic touch screen oil calorific value meter

Auto touch screen oil calorific value analyzer MCU embedded system Heat capacity approximately 10000J/K ASTM D240

SH500C Automatic touch screen oil calorific value meter in accordance with GB/T 213-2008 and GB/T 384. It is mainly composed of constant temperature calorimetry system and MCU embedded system. It is a highly automatic heat measurement instrument automatically controlled by the intelligent MCU embedded system and capable of data processing. The instrument is mainly used for the determination of the calorific value of combustible materials such as coal, petroleum, chemical industry, food and wood.

Main features

● The embedded system is composed of intelligent MCU, which has the advantages of simple structure, reliable performance and strong anti-interference ability.

● Adopt imported high-precision components to achieve high-precision temperature measurement.With the complete and unique water injection and drainage and calorimetry system of the instrument, the heat capacity of the system can be automatically calibrated, and the calculation program carefully compiled greatly improves the measurement accuracy.

● Adopt color touch screen display, full Chinese display, good user interface.Automatic control of measurement process.Print the analysis base shell, analysis base high, dry base high, analysis base low, receive low base calorific value, the result is clear and clear.

● Adoption of unique tracking and correction technology, so that the instrument on the environment requirements are relatively loose, improve the test accuracy, and ensure the stability of long time operation.

● The inner cylinder adopts electric stirring of sheet paddle;Adopt fuse type cotton thread ignition mode, high reliability, easy operation.

● The time temperature curve is drawn during the experiment, which is helpful to observe the experiment process.

● The operation is fully automated, the manual need to do is only weighing, loading and oxygenation, the instrument automatically complete quantitative water injection, automatic mixing, ignition, output printing results, drainage and other work.

● Single pump replacement injection and drainage, eliminate the original double pump model drainage pump easy to plug the problem, and no need to adjust the water injection time

Main technical indicators

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
