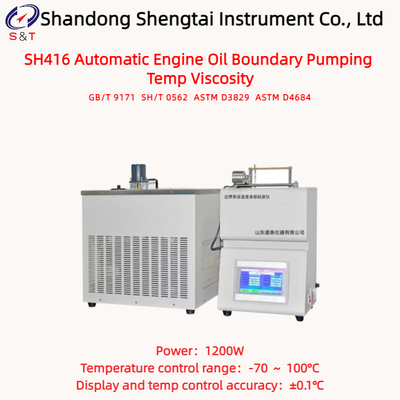

ASTM D4684 9 Units Engine Oil Borderline Pumping Temperature Test Apparatus -70 ～ 100°C

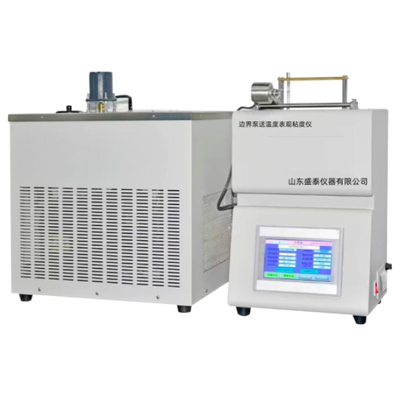

SH416 Automatic Engine Oil Boundary Pumping Temp Viscosity

Standard: GB/T 9171 SH/T 0562 ASTM D3829 ASTM D4684

SH416 Fully Automatic Boundary Pumping Apparent Viscosity Meter is designed and manufactured in accordance with the national standard of the People's Republic of China, "GB/T 9171-1988 Determination of Boundary Pumping Temperature of Engine Oil" and SH/T 0562, while also meeting the petrochemical industry standards ASTM D3829 and ASTM D4684. It is an instrument used to determine the boundary pumping temperature, (low-temperature) yield stress, and apparent viscosity of motor vehicle engine oil. The test temperature control range is wide, spanning from -5°C to -40°C. The entire testing process is automatically controlled by a computer.

The specimen was cooled from 80°C to the experimental temperature at a nonlinear cooling rate within 10 hours, held at a constant temperature for 16 hours, then subjected to a loading torque on a rotational viscometer. The rotational speed was observed and measured, and the yield stress and apparent viscosity at that temperature were calculated. The boundary pumping temperature of the sample was determined based on three or more measurements.

Performance characteristics

● Pumping temperature range: -5°C ～ -40°C, temperature control accuracy ±0.1°C

● Fully enclosed compression refrigeration with high cooling capacity

● Temperature, cycle, and rotor movement are monitored by a microcomputer

● Improved pulley assembly, enhancing the stability and sensitivity of the pulley, with photoelectric sensor testing

● The instrument viscometer cell includes a numbered 9-hole viscometer in a temperature-controlled aluminum block, a heater, a temperature sensor, and a photoelectric encoder. The temperature of the viscometer cell is automatically controlled by the program-controlled instrument according to the curve selected by the user. The entire system performs stably, with performance better than ±0.1°C in temperature control segments requiring ±0.2°C, and automatically prints the data upon completion of the experiment.

● The rotor is equipped with a transparent insulated organic glass cover

● The program automatically performs nonlinear curve temperature control, measuring yield stress and apparent viscosity

● Cleaning temperature control and temperature calibration functions

Technical parameters

Note: The appearance images and dimensions (volume and weight) of the instrument are for reference only. If the instrument is updated, minor changes may occur without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
