Feed Crude Fat Analyzer ST-06 Soxhlet Extraction Principle Gravimetric Method

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST-06D
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
MODEL ST-06D Measure Range Grain, Feed, Oil And Various Fat Products With Oil Content Ranging From 0.5% To 60%
Measure Quantity 6 Samples At Same Time Solvent Reclaim Rate ≥ 80%
Heating Hot Plate Heating Time In 10minutes
Power Supply AC220V50Hz
High Light

Feed Crude Fat Analyzer


Crude Fat Analyzer ST-06D


ST-06 Fat Analyzer

Leave a Message
Product Description

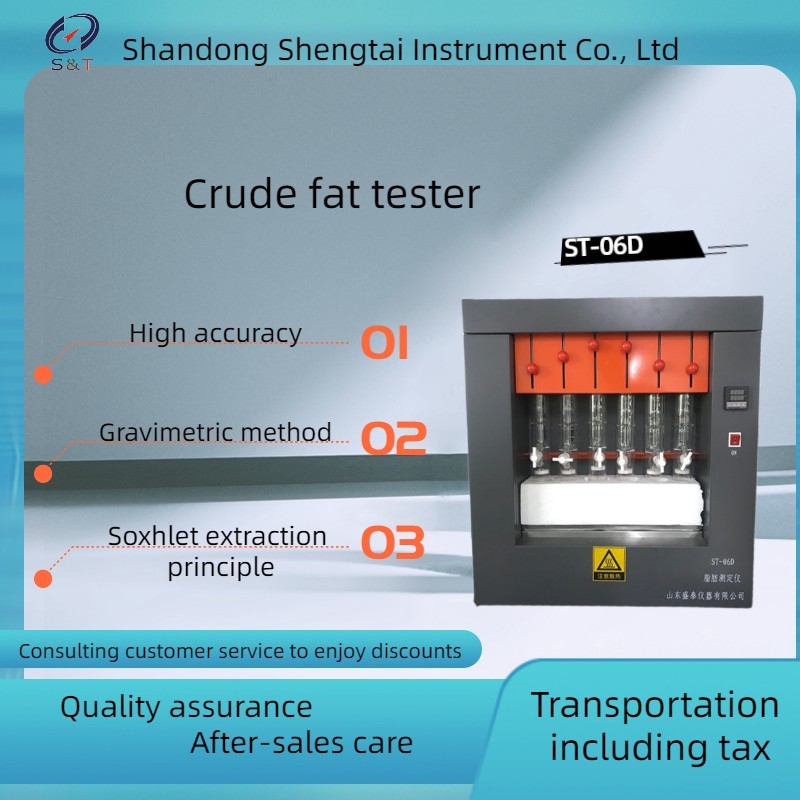

Feed Crude Fat Analyzer ST-06 Soxhlet Extraction Principle Gravimetric Method With Stable Performance

Crude Fat Analyzer ST-06D is base on the Soxhlet extraction principle and integrates functions: soaking, extraction, leaching, heating, condensation and solvent recovery.

Sealed metal bath heating with automatic temperature control, ensuring uniform heating and safe operation, Six samples can be tested at the same time, and optimal temperature can be selected according to the difference between reagent boiling point and ambient temperature so as to achieve quick analysis. Reagents can also be recycled to reduce test cost. Soaking, extraction and solvent recovery can be done in one step.

Crude Fat Analyzer Machine by Soxhlet Extraction Method


Instrument has compact structure, easy operation, good sealing performance, temperature uniformity and high measurement precision, etc. One can do at the same time the sample is six.

Technical indicators

Measuring range: oil content was 0.5% ~ 60% within the scope of the food, feed, oils and fats products;

Determination of samples:6 / batch;

Power supply voltage: 220 v frequency 50 hz;

Electric heating power: 300 w;

Temperature control range: at room temperature to 100 ℃;

Installation dimensions:570 * 330 * 330 mm3,

Weight: 23 kg.


Measure Range


Grain, feed, oil and various fat products with oil content ranging from 0.5% to 60%

Measure quantity 6 samples at same time
Solvent reclaim rate ≥ 80%
Heating Hot plate
Heating time in 10minutes
Temperature control range Room temperature+5C-300 ℃
Power supply AC220V50Hz
Size : 570*330*655 weight:23kg
Electric heating plate heating, fast speed, automatic recovery, uniform heating and automatic recovery, including soaking and extraction process, shorten working time, and more compact and beautiful appearance.
