Organic Chlorine Analyzer Sulfur 0.1 ～ 10,000 Mg Coulombic Method RT ～ 1300°C ASTM D3246

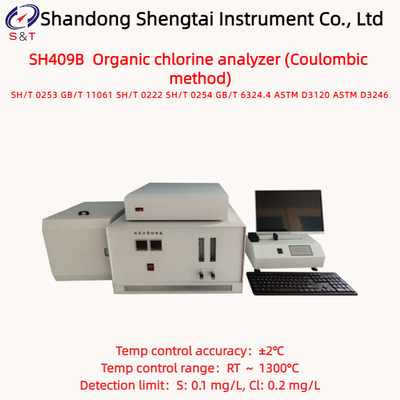

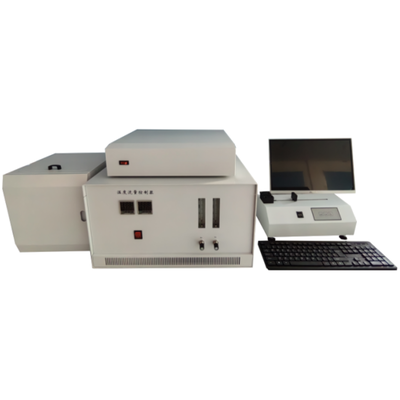

SH409B Organic chlorine analyzer (Coulombic method)

Organic chlorine analyzer Sulfur 0.1 ～ 10,000 mg Coulombic method RT ～ 1300°C ASTM D3246

SH409B organic chlorine analyzer uses microcoulometry analysis technology to oxidize the sample into titratable ions through a cracking furnace using an oxidation method. The titration is carried out in a titration cell, and the chlorine content in the sample is calculated based on Faraday's law and the amount of electricity consumed during the electrolytic titration process. Widely used for determining sulfur and chlorine concentrations in liquid, solid, or gaseous samples.

Standards: SH/T 0253, GB/T 11061, SH/T 0222, SH/T 0254, GB/T 6324.4, ASTM D3120, ASTM D3246

Performance Characteristics

● The instrument adopts air cooling for heat dissipation, the fan automatically switches on and off, and no one needs to be on duty to cool down when turned off!

● The instrument adopts an independent temperature control system. Adopting Yudian's fully automatic temperature controller, the failure rate is close to zero.

● Windows operating platform, human-machine direct dialogue.

● The computer controls the entire process of analysis, data processing, etc., displaying the working status and peak shape of the entire process. Parameters, data, and peak shapes can be saved or printed as needed.

● The instrument adopts internationally popular circuits and imported components, reducing instrument noise and improving detection sensitivity.

● Using oxidation method and Faraday's law, the content of chlorine is automatically tested to achieve rapid analysis of chlorine in petrochemical products.

● There are few test samples, only 10 μ l is needed each time, and the testing time is fast. The machine testing time for each sample is about 2 minutes.

Technical Specifications:

The user must provide the following equipment:

1) One bottle each of general oxygen and general nitrogen (including pressure reducing valves)

2) Workbench (no less than 50*200cm)

3) 20A socket (not less than 3KW)

4) 2L of purified water, 500mL of glacial acetic acid (GR grade)

Chlorine is used to configure chlorine electrolytic cells and quartz tubes

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
