X-Ray Fluorescence Sulfur Analyzer For Coal Oil Sulfur 0.0005% ～ 5% SDD Prober ASTM D4294-02

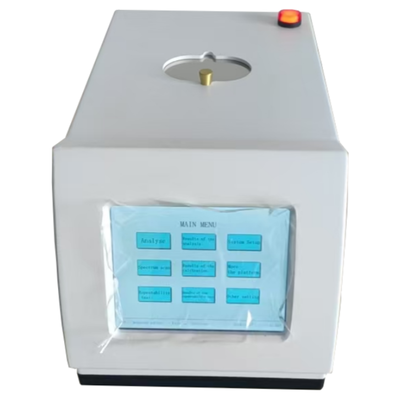

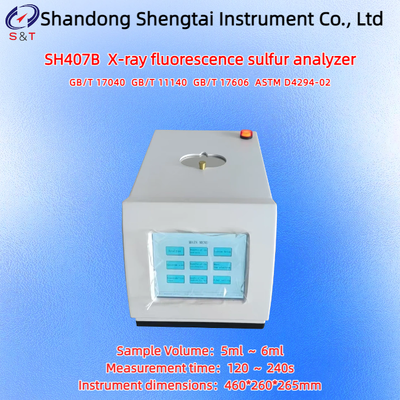

SH407B X-ray fluorescence sulfur analyzer

Standard: GB/T 17040 GB/T 11140 GB/T 17606 ASTM D4294-02

SH407B X-ray fluorescence sulfur analyzer employs the energy-dispersive principle and features a microcomputerized design integrating mechanical and electronic components, ensuring rapid and accurate analysis. Its repeatability and reproducibility comply with the national standards GB/T 17040-2008 "Determination of Sulfur Content in Petroleum Products (Energy Dispersive X-ray Fluorescence Spectrometry)" and GB/T 11140-1989 "Determination of Sulfur Content in Petroleum Products (X-ray Spectrometry)" as well as GB/T 17606 "Determination of Sulfur Content in Crude Oil by Energy Dispersive X-ray Fluorescence Spectrometry." Additionally, it fully meets the requirements of the American national standard ASTM D4294-02.

SH407B X-ray fluorescence sulfur analyzer primarily measures the total sulfur mass percentage content in crude oil, petroleum, heavy oil, diesel, kerosene, gasoline, and naphtha. It can also determine the total sulfur or sulfur compound content in coal chemical products (e.g., primary benzene) and other liquid samples, as well as the total sulfur or SO3 content in powdered samples, complying with GB/T 17606.

Key Technical Features

● Equipped with an imported SDD detector, featuring a resolution of less than 125eV and a maximum counting rate of 2000kcps;

● 30W micro-focus thin beryllium window X-ray tube;

● WISMAN 30W X-ray tube precision high voltage power supply;

● 8-inch wide-angle capacitive touchscreen (1024*768) display, with backlight brightness adjustable via software

● Wide range of test varieties, broad detection range, fast analysis speed, no need for chemical reagents;

● The fluorescence intensity ratio analysis method is employed, with automatic correction for temperature and pressure;

● The instrument's automatic diagnostic function assesses its operational status and electrical parameters;

● Enclosed directed air cooling ensures stable operating temperature for the X-ray tube, extending its service life;

● Optimize the optical path design to further enhance the reliability of both software and hardware;

● Large data storage capacity, facilitating user data retrieval;

● The X-ray shielding design, polymer materials, and safety interlock devices effectively ensure radiation safety.

● The instrument has a large data storage capacity, including 4,096 content analysis results, 8,192 counting measurement data, and 16 instrument calibration result data

Technical parameters

● Single-sample automatic measurement, with the number of repeated measurements set arbitrarily at 1, 2, or 3 times, and the average value and standard deviation provided upon completion;

● The instrument can store up to 10 calibration curves

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
