Liquefied Petroleum Gas Density Meter By Pressure Hydrometer 0 ～ 1.4Mpa ASTM D1657

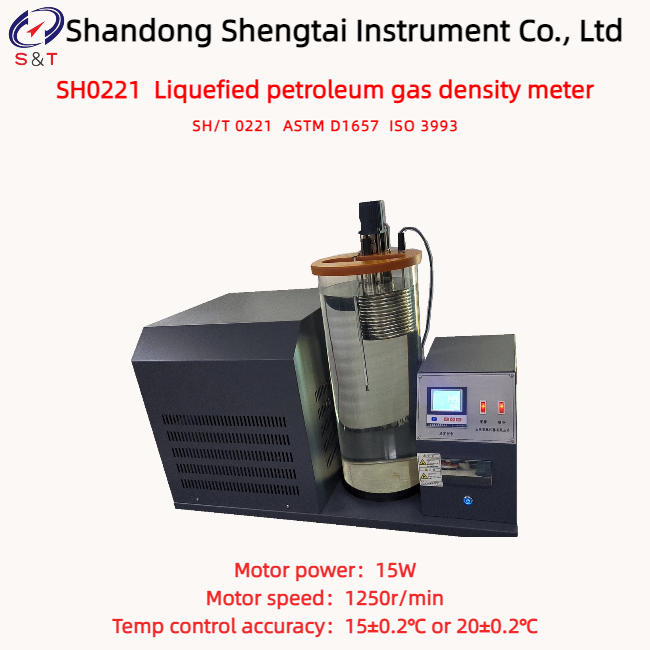

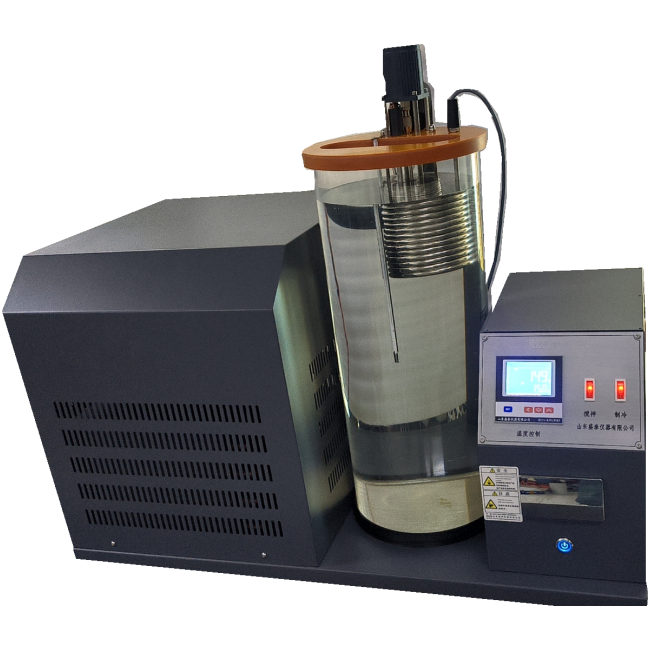

SH0221 Liquefied petroleum gas density meter

Standard: SH/T 0221 ASTM D1657 ISO 3993

SH0221 Liquefied petroleum gas density tester (pressure densitometer method) is used to measure liquefied petroleum gas and light hydrocarbon according to the standards of SH/T 0221-92, ASTM D1657 and ISO 3993 "Determination of density or relative density of liquefied petroleum gas and light hydrocarbon (pressure densitometer method)".

At the test temperature, the vapor pressure (gauge pressure) is higher than 1.4MPa sample, should not use this instrument.

ASTM D1657 LPG Density or Relative Density Tester by Pressure Hydrometer

ASTM D1657 LPG Density or Pressure Hydrometer Relative Density Test Instrument

Functional features

● Three valves are made of 1Cr18Ni9Ti material, can withstand 4Mpa pressure.

● The cylinder is made of transparent plexiglass, and both ends are sealed with metal end plates and neoprene gaskets.

● The water bath is made of 1Cr18Ni9Ti material. The electric heater and electric stirring device are installed in the bath, and the temperature automatic adjustment system can meet the test temperature of 15±0.2℃ or 20±0.2℃.

● Temperature control device adopts digital display, sensitive reaction, accurate temperature control.

● The agitator is composed of motor, stirring shaft and blade, with low noise and high efficiency.

● Compressor refrigeration is adopted

Technical parameters

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
