DL429.4 Temperature Controlled Full Auto Degassing Oscillator For Gas Chromatography
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SH121 | Temperature Range | Room Temperature ~100℃ |
---|---|---|---|
Power Source | AC 220V±22V | Temperature Control Accuracy | Room Temperature ~50℃±0.2℃ |
Oscillation Frequency | 275±3 Times/min | Oscillation Amplitude | 35mm |
High Light | Temperature Controlled Degassing Oscillator,Full Automatic Degassing Oscillator,DL429.4 Degassing Oscillator |

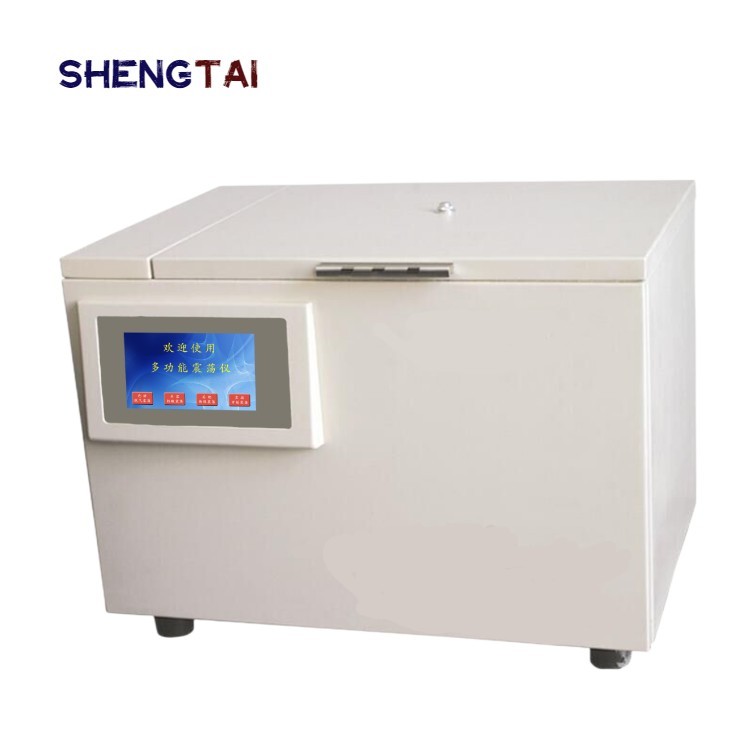

DL429.4 Multi Function Temperature-Controlled Full Automatic Degassing Oscillator For Gas Chromatography

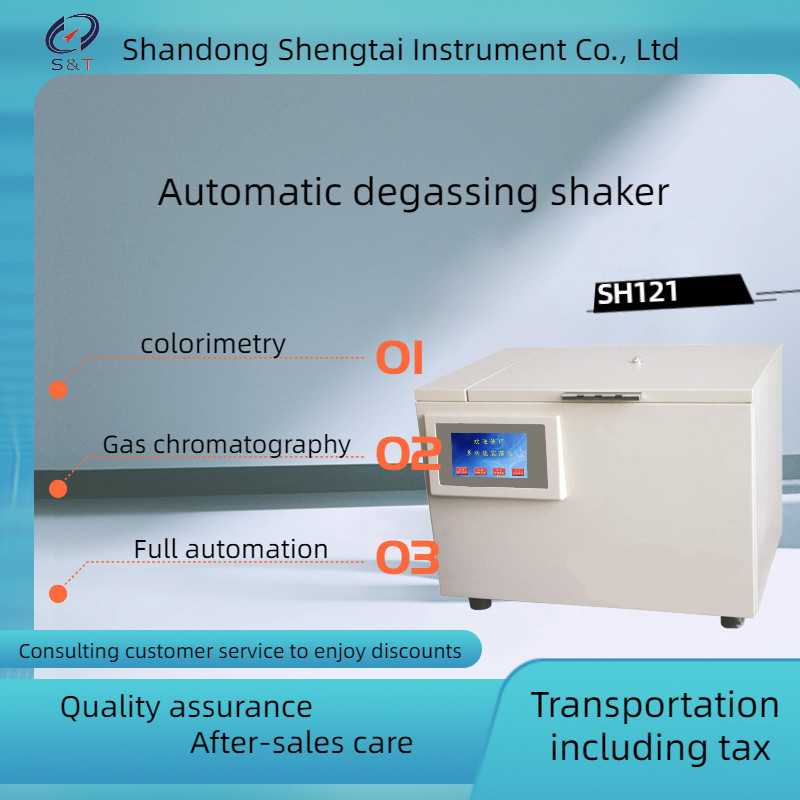

SH121 degassing vibration instrument
Applicable standard:GB/T17625 DL429.4 standard, used for oil dissolved gas component content determination method (gas chromatography) oscillation degassing;
Oscillating degassing of water-soluble acids in oil (colorimetric method) can also be used for constant temperature and timing oscillation in other physical and chemical experiments.
1, GB7598-87 transformer oil in operation, turbine oil determination of water-soluble acid (colorimetric method);
2, SD304-89 insulation oil content determination of dissolved gas components (gas chromatography);
3, GB259-88 petroleum products water-soluble acid and alkali determination method.
Multi-Functional Automatic Degassing Oscillator-Automatic Degassing Oscillator
Automatic Constant Temperature Timing Heating Oscillator Multifunctional Degassing Oscillation Tester
Multi Function Temperature-Controlled Full Automatic Degassing Oscillator for Gas Chromatography
Automatic Transformer Oil Multifunctional Degassing Oscillator
SH121 Transformer Automatic Multi Functional Degassing Oscillation Tester
Multi Function Temperature-Controlled Full Automatic Degassing Oscillator for Gas Chromatography
The main features
Adopt blue LCD large screen display, Chinese menu, no logo button.
Sliding door design makes it more convenient to take and place samples.
It has the characteristics of small volume, low noise, uniform distribution of temperature field and eight samples oscillating at a time.
The working process is fully automated, which reduces the labor intensity of the staff and improves the work efficiency. It is an ideal replacement product for the laboratory
Technical parameters
Display | large screen LCD display (240*128); |
Temperature range | room temperature ~100℃; |
Power source | AC 220V±22V |
Temperature control accuracy |
room temperature ~50℃±0.2℃;
|
Oscillation frequency | 275±3 times/min; |
Oscillation amplitude | 35mm |
Equation 1 | After constant temperature at 50℃ for 10 minutes, oscillate for 20 minutes and rest for 10 minutes. |
Formula 2 |
after constant temperature at 50℃ for 10 minutes, oscillate for 5 minutes and keep the constant temperature at 75℃;
|
Self-defined meaning |
20~99 minutes to set the oscillation, static time; Set arbitrary temperature within 20~99℃ |
Sample size |
Four 250ml triangular flasks can be placed 8 100ml syringes can be placed; |
Instrument size: 500× 350 × 375mm net weight: 31.5kg | |
Package size: 580 × 430 × 465mm gross weight: 39kg |
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Oscillating disk | 1 | set | |
3 | power cord | 1 | piece | |
4 | Instructions | 1 | copy | |
5 |
Packing list
|
1 | copy | |
6 | Certificate warranty card | 1 | copy |
