-70℃ Low Temp Auto Pour Point Meter For Desel Fuel Metal Bath Single Hole ASTM D5950

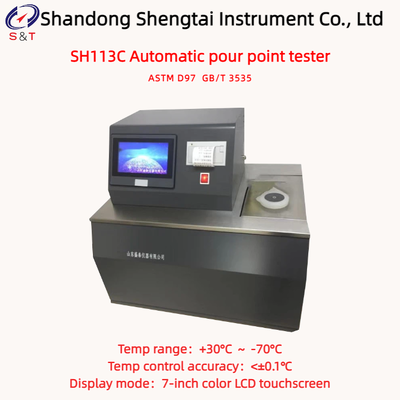

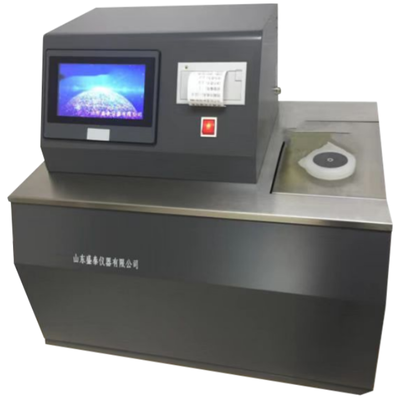

SH113C Automatic pour point tester

Standard: ASTM D97 GB/T 3535

SH113C Fully Automatic Pour Point Determinator complies with the national standard GB/T 3535 and adopts ASTM D97. It features a main control unit composed of multiple microcontrollers, enabling automatic cooling, constant temperature control, automatic detection, and automatic result printing. Equipped with a two-stage refrigeration system, it achieves a cooling range of +30°C to -70°C. The use of imported compressors ensures long-term stable and reliable operation with minimal damage. The device employs a dry well-type refrigeration bath tank, offering low hysteresis, rapid cooling, and no need for additional cooling media, making it user-friendly and easy to maintain. It utilizes high-performance infrared detection technology, providing high sensitivity and strong reliability.

The pour point refers to the lowest temperature at which a cooled oil sample can flow under specified test conditions, expressed in degrees Celsius.

Instrument Features

● After the upgrade, historical data can be stored for easy retrieval; it also supports USB output functionality.

● After the test is completed, if no personnel are operating, the refrigeration unit can be set to automatically shut down within 0-50 minutes to avoid frequent compressor activation and extend the instrument's service life

● Standard configuration includes a mini printer, automatic measurement, and automatic thermal printing

Technical parameters

● Storage Method: Experimental results can store up to 1,000 sets of historical data for easy retrieval;

● Result Output: Equipped with USB flash drive output functionality for long-term storage on PCs

● Output Format: The result USB output format is CSV or Excel.

● Data Memory: The microcomputer instrument's memory can be expanded to 16G.

★ Remote Upgrade: Equipped with TCP network transmission functionality, enabling remote software upgrades (optional)

★ Data Management: Connectable to the LIMIS system (optional)

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. Updates to the instrument may involve minor changes, and no separate notice will be provided.

Package list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
