ASTM D86 Petroleum Product Distillation Apparatus Double Holes

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SD6536AZ
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Features Can Test Two Samples Simultaneity MODEL SD6536AZ
Test Standard GB/T6536, ASTM D86 Suitable For Gasoline, Jet Fuels, Special Boiling Point Solvent, Naphtha, Diesel Oil, Distillate And Other Petroleum Products
Heating Power Of Electric Furnace 1000 W*2, Heating Power Can Be Continuously Adjusted Volume Of Graduated Flask 100 Ml With Scale Division Of 1ml
Thermometer -2~300°C, And -2~400°C Temperature Controlling Range (0 ~ 80) ℃ Arbitrary Setting (with Refrigeration).
Temperature Controlling Accuracy ±0.5°C Ambient Temperature ≤+35°C
Total Power Consumption ≤2500 W
High Light

ASTM D86 Distillation Apparatus


Petroleum Product Distillation Apparatus


Double Holes Distillation Apparatus

Leave a Message
Product Description

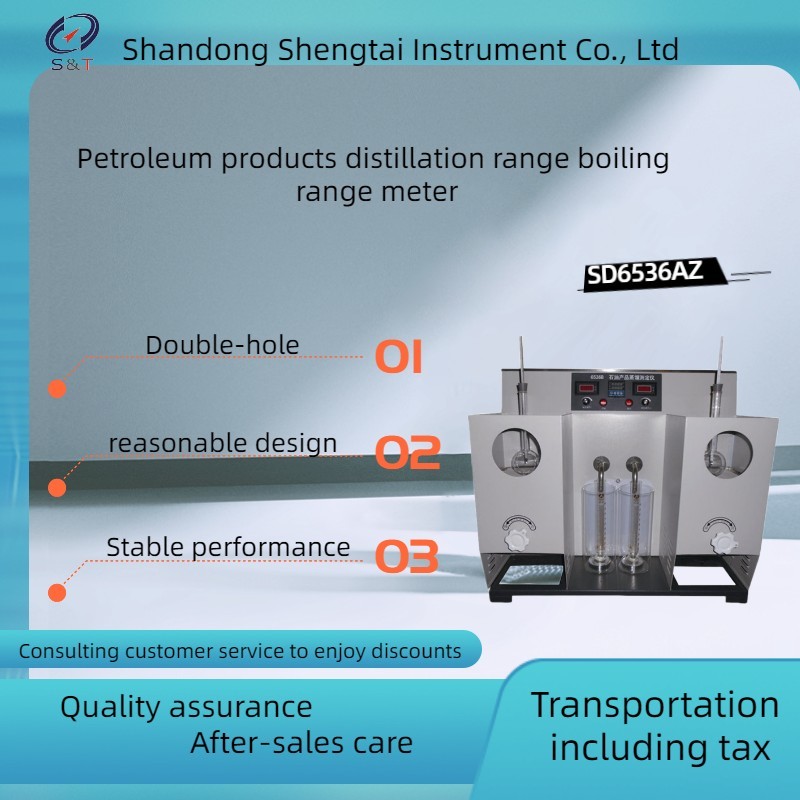

ASTM D86 Petroleum Product Distillation Apparatus (Double Holes)


Purpose and scope of application

SD6536AZ petroleum product distillation apparatus (double holes) is based on the standard of the People's Republic of China GB/T6536 requirements stipulated in "the distillation of petroleum products determination method of design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar distillation.

Petroleum product distillation tester ,double unit, refrigeration low temperature

Double Tube Distillation Apparatus for Petroleum Products

SD6536C Low-temperature Distillation Tester Distillation Testing Machine for Petroleum Products

Main technical parameters and technical characteristics

(1) Main technical parameters

⑴ Power supply: AC220V±10%, 50Hz.

⑵ Heating power of electric furnace: 1000W×2.

⑶ Measuring cylinder volume: 100 mL, indexing 1 mL.

The distillation flask: 125mL, in line with the requirements of GB/T6536.

⑸ thermometer: full immersion stick, scale range (-2 ~ +300) ℃ and (-2 ~ +400) ℃, 1℃.

The electric furnace plate: silicon carbide plate manufacturing, aperture is Φ 38㎜, Φ 50㎜.

① Temperature control range: (0 ~ 80) ℃ arbitrary setting (with refrigeration).

② Temperature control accuracy: ±0.5℃.

③ Temperature display mode: LED digital display.

(8) Compressor circulation refrigeration device

Item GD-6536A Distillation Tester
Test standard GB/T6536, ASTM D86
Suitable for gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and other petroleum products
Features Can test two samples simultaneity
Heating power of electric furnace 1000 W*2, heating power can be continuously adjusted
Volume of graduated flask 100 ml with scale division of 1ml
Distillation flask 125 ml
Thermometer -2~300°C, and -2~400°C
Temperature controlling range (0 ~ 80) ℃ arbitrary setting (with refrigeration).
Receiver compartment temperature 1 ~ 60°C
Temperature controlling accuracy ±0.5°C
Power supply AC 220V±10%, 50 Hz
Ambient temperature:  ≤+35°C
Relative humidity ≤85%
Total power consumption ≤2500 W



S/N Name Quantity Unit Note
1 Host 1 set
2 Distilled flask (125 ml) 2 piece
3 Aquarium 2 piece
4 Silica gel plug 4 piece
5 Silicon carbide plate, aperture Φ 32㎜, Φ 38㎜, Φ 50㎜ 2 piece
6 Measuring cylinder (100ml) 2 piece
7 Test platform 2 piece
8 power cord 1 piece
9 Thermometer 2 piece
10 fuse tube 1 piece 10A
11 Operating instruction 1 copy
12 packing list 1 copy
13 Certificate of approval 1 copy

ASTM D86 Petroleum Product Distillation Apparatus Double Holes 0

ASTM D86 Petroleum Product Distillation Apparatus Double Holes 1

ASTM D86 Petroleum Product Distillation Apparatus Double Holes 2
