4 Holes Diesel Fuel Kinematic Viscometer Analyzer RT - 100℃ Digital Display ASTM D445

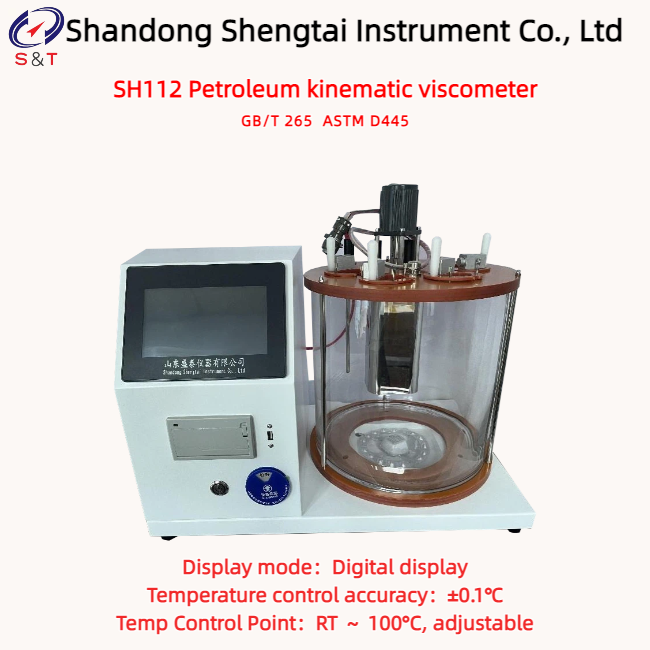

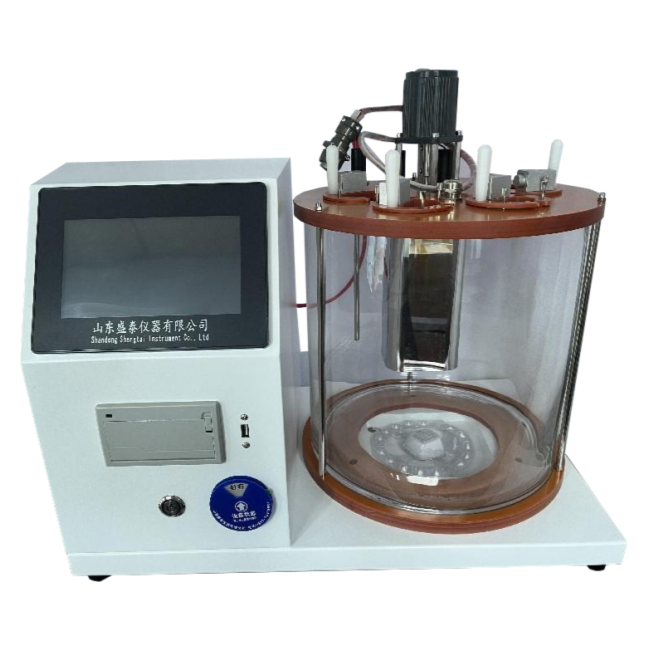

SH112 Petroleum kinematic viscometer

SH112 Petroleum Kinematic Viscosity Meter complies with the requirements of the national standard GB/T 265 "Determination of Kinematic Viscosity and Calculation of Dynamic Viscosity of Petroleum Products." It can accommodate up to four viscometers simultaneously for testing and also serve as a high-viscosity constant-temperature water bath for other experiments. Featuring a large color LCD screen with Chinese display and unlabeled buttons, it uses a precision platinum resistance PT100 for temperature measurement. The temperature range can be set from 10°C to 100°C, with automatic switching between primary and auxiliary heaters. It retains capillary constants in case of power failure. The device automatically calculates viscosity values and also meets ASTM D445 standards

Kinematic viscosity: At a constant temperature, the gravitational flow of a specific volume of the model is determined through a calibrated glass capillary viscometer. The constant of the capillary viscometer varies with time, and the kinematic viscosity of the product is used to measure the viscosity of the liquid.

Key Features:

● The constant temperature bath is a circular glass tank with uniform temperature distribution and excellent temperature control (can be designed as a double tank).

● This instrument employs a precision digital temperature controller to regulate the bath temperature, utilizing solid-state relays (SSR) as the actuating component. It features accurate temperature control, contactless operation, silent performance, spark-free operation, rapid response, and extended service life.

● The capillary gauge adopts a three-point vertical design, offering flexible and convenient operation with reliable clamping.

● The viscosity tube can be selected as either a Ubbelohde viscometer or a Saybolt viscometer based on requirements.

● Equipped with USB input functionality, it allows data to be transferred to a PC for long-term storage (optional).

● Storage method: Experimental results can store up to 199 sets of historical data for convenient retrieval (optional);

● Output format: The USB flash drive output format can be CSV or Excel (optional).

Technical parameters

Consumables required to be prepared by the customer: water or glycerin. Strictly follow national standards; the following reagents must be used for cleaning before the viscosity tube test: solvent oil or petroleum.

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur due to updates, and no further notice will be provided.

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
