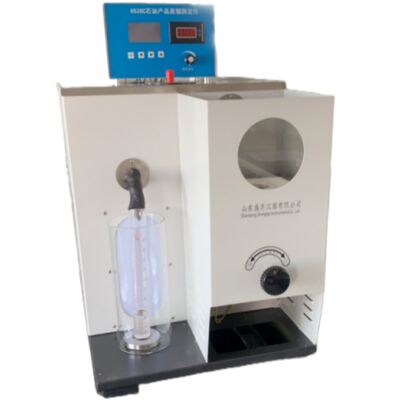

Diesel Fuel Manual Distillation Tester 0～400℃ Single-Hole 5.5L Bath ASTM D86

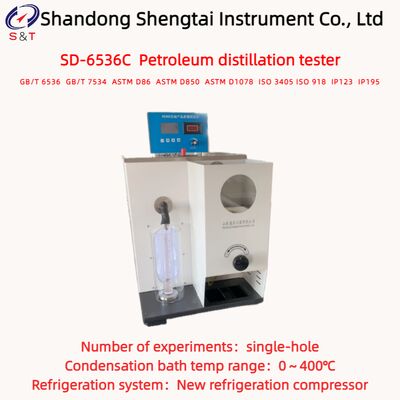

SD-6536C Petroleum distillation tester

Standard: GB/T 6536 GB/T 7534 ASTM D86 ASTM D850 ASTM D1078 ISO 3405 ISO 918 IP123 IP195

The SD-6536C petroleum product distillation and boiling range analyzer is designed and manufactured in accordance with the requirements specified in the Chinese national standards GB/T 6536 "Distillation Method for Petroleum Products" and GB/T 7534-2004 "Boiling Range Determination of Volatile Organic Liquids for Industrial Use.".

The distillation range refers to the temperature range from the initial boiling point to the final boiling point, which represents the evaporation characteristics of oil products obtained through distillation under specified conditions.

Boiling range: The temperature at which the first drop of liquid begins to condense in the condenser during distillation is the initial distillation temperature; the temperature near the end of distillation is the final distillation temperature, and the interval between these two temperatures is the boiling range

Applicable to the distillation determination of gasoline, aviation gasoline, jet fuel, solvents with special boiling points, naphtha, diesel, distillate fuels, and similar petroleum products, as well as the boiling range of chemical products such as methanol.

Petroleum Product Distillation Tester at Atmospheric Pressure

Manual Petroleum Product Distillation Tester ASTM D86

Main Features

● The constant temperature bath is composed of a digital temperature controller, stainless steel heater, new refrigeration compressor, and electric stirrer, ensuring uniform temperature inside the bath and fully meeting the requirements of the test.

● A special heating furnace design is adopted to ensure test safety, with continuously adjustable heating power to meet test requirements.

● This instrument comes with a complete set of accessories, is easy to use, and allows for distillation tests of petroleum products under low-temperature conditions immediately upon purchase.

● The condensate tank is made of stainless steel and can be heated or cooled

● Internal refrigeration cycle, no need for external cooling water circulation

Technical Specifications

Note: The appearance, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no further notice will be provided.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to your company:

----The provided instruments and materials are brand new, comply with national quality standards, and come with manufacturer certificates of conformity;

----The provided materials and main components comply with the technical requirements specified in the technical documentation;

----The whole machine warranty period for the equipment is one year (excluding normal wear and tear of consumable parts).

----For instrument quality issues arising during the warranty period, our side will be responsible for free repairs. For equipment failures caused by the user's responsibility, our side will handle the repairs at a reasonable charge.

----Lifelong discounted spare parts supply and whole-machine maintenance and repair services.

----After the expiration of the warranty period, our company will only charge for the cost of repairs and technical services when the user requires them.

Packing List
