Constant Temperature Cone Penetration Tester 10 ～ 50℃ Digital Display ASTM D217

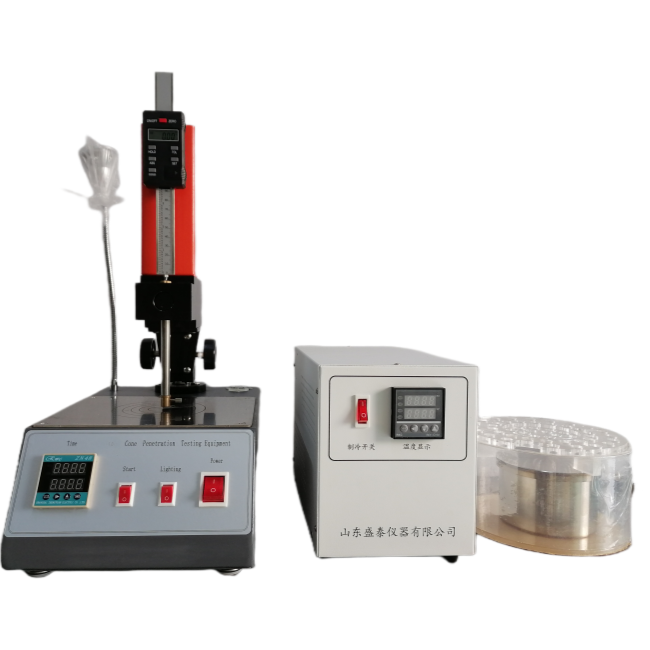

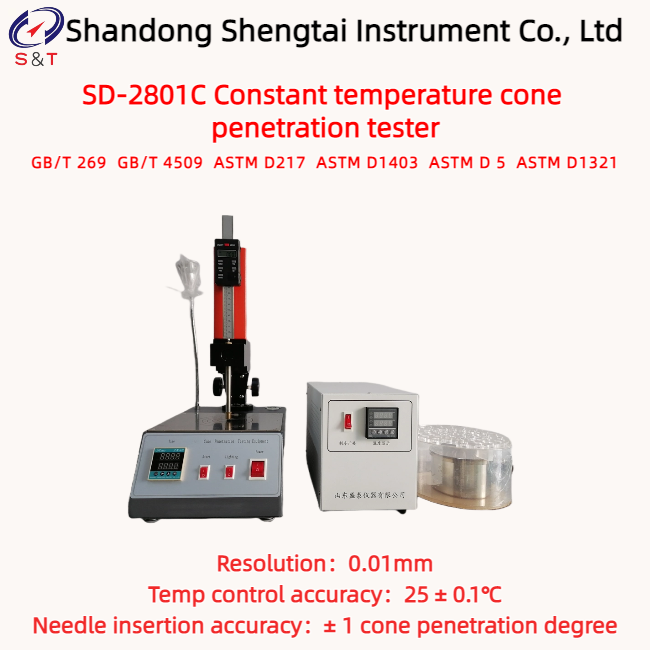

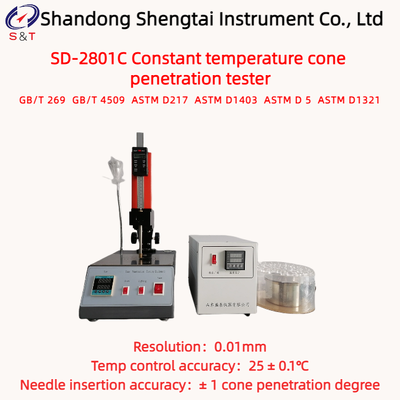

SD-2801C Constant temperature cone penetration tester

The SD2801C constant temperature cone penetration tester is designed and manufactured according to the technical requirements and relevant regulations of the Chinese standard GB/T 269 "Determination of Cone Penetration of Lubricating Greases and Stone Greases". It is mainly suitable for testing the cone penetration of lubricating grease, petroleum grease, and other oils. Meets the technical requirements of GB/T 4509 "Determination of Penetration of Asphalt" and is suitable for testing the penetration of asphalt and lubricating grease (or stone grease).

Cone penetration refers to the depth to which a standard cone (usually carrying a total weight of 150 grams, but with a specified weight of 100 grams) sinks into a lubricating grease sample insulated at 25 ℃ within 5 seconds. The unit is 1/10 millimeter. The greater the penetration, the softer the lubricating grease, that is, the lower the viscosity; On the contrary, it indicates that the lubricating grease is harder, that is, the viscosity is higher. The penetration test of asphalt does not use a standard cone, but a standard pointed needle with a total load of 100 grams.

Simultaneously meet the following standards:

● JT/T 617.2-2018 "Rules for Road Transport of Dangerous Goods"

● ISO 2137-2007 "Petroleum products and lubricants"

● YY0717-2009 "Dental Root Canal Closure Materials"

● GB/T 26513-2023 lipstick (Gel, Cream)

● GJB 785.3-89 "Test Method for Performance of Non vulcanized Rubber Sealants - Penetration and Cone Penetration Test"

● GB/T22459.1-2008 "Refractory slurries - Part 1: Test method for consistency (cone penetration method)"

Standard Lubricating Grease Cone Penetration Tester SD2801A

Cone Penetrometer ASTM D217Lubricating Grease Cone Penetration Tester

ASTM D217Lubricating Grease Cone Penetration Tester

Lab ASTM D217Lubricating Grease Cone Penetration Testing Equipment

Standard Penetration Test ASTM D217 Dynamic Grease Cone Penetrometer

Main technical features

● Use a digital display to show the cone penetration value, which is intuitive and eye-catching.

● It has the functions of coarse and fine adjustment of the lifting frame, easy adjustment, and accurate needle alignment.

● Equipped with a heated constant temperature bath, automatic temperature control of the water bath, and high cost-effectiveness of the instrument.

● Cone entry time control device: The time can be set arbitrarily according to one's own needs, with a time error of less than ± 0.1 seconds;

Main technical parameters and indicators

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
