Petroleum Asphalt Needle Penetration Measuring Instrument 0 ～ 700 Penetration ASTM D217

  • Petroleum Asphalt Needle Penetration Measuring Instrument 0 ～ 700 Penetration ASTM D217
  • Petroleum Asphalt Needle Penetration Measuring Instrument 0 ～ 700 Penetration ASTM D217
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd.
Certification GB/T 269 GB/T 4509 GB/T 4985 ASTM D217 ASTM D1403 ASTM D5
Model Number SD-2801A
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Measurement Range 0 ～ 700 Penetration Resolution 0.01mm
Penetration Accuracy ±1 Penetrometer Unit Instrument Dimensions 325*220*510mm
Working Power Supply 80W Instrument Weight 7.4kg
Highlight

Petroleum asphalt penetration tester

,

Asphalt needle penetration instrument

,

ASTM D217 penetration measuring device
Leave a Message
Product Description

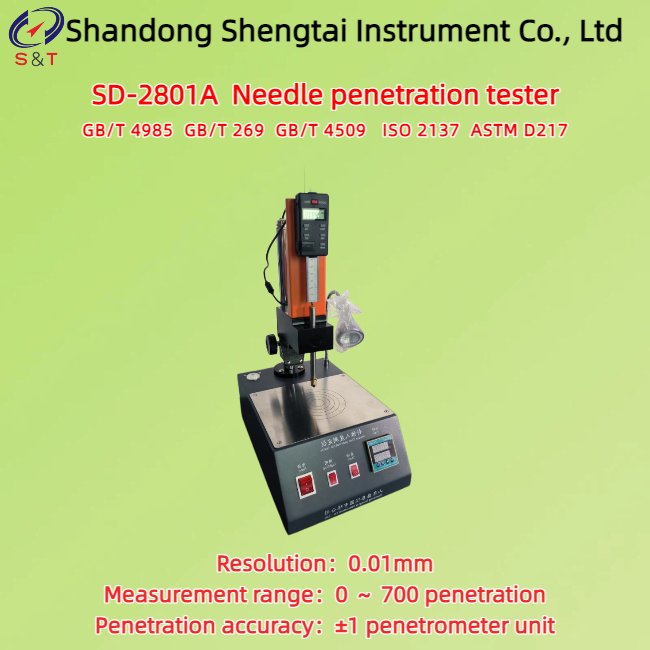

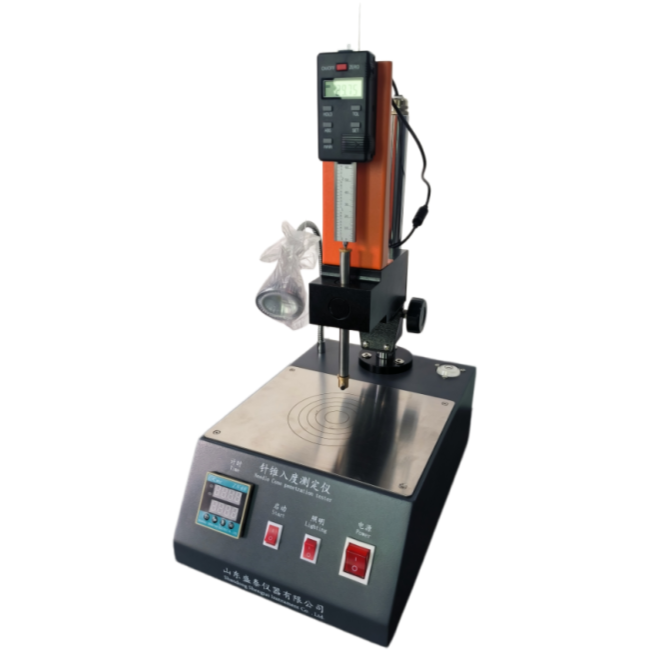

SD-2801A Needle penetration tester

Standard: GB/T 4985 GB/T 269 GB/T 4509 ISO 2137 ASTM D217

SD-2801A needle penetration tester is based on the People's Republic of China standard GB/T 4985, GB/T269 "grease and petroleum grease cone penetration determination method" and the pharmacopoeia GB/T4509 technical requirements and related regulations design and manufacture, mainly suitable for grease (or Vaseline) cone penetration test.

The instrument can also be used for solid fine grain, powder, colloid, frozen materials, as well as cheese, sugar gum, butter, cream, fermented materials and other food raw materials inspection, in food industry, traffic and highway engineering and other industrial departments can be widely used.

Main technical features

● The use of digital display to display the taper value, intuitive and eye-grabbing.

● Digital display of cone entry time control device.

● With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.

● The experiment duration can be set arbitrarily

● The needle assembly can be adjusted vertically within a range of 0-70mm using the adjustment knob

Main technical parameters and indicators

Measurement range 0 ～ 700 penetration
Cone penetration time control device The time can be set arbitrarily according to your needs, with a time error of less than ±0.1s
Resolution 0.01mm
Penetration accuracy ±1 penetrometer unit
Standard cone 102.5±0.05g, sample box diameter 100mm, height ≥65mm, complying with the specifications of the national standard GB/T269
Standard needle 2.5±0.05g, meeting the requirements of GB/T4509 standard
Raising and Lowering Bracket Equipped with a dual fine and coarse adjustment mechanism for convenient needle tip alignment with the sample surface
Others Equipped with a cold light source for easy use and operation
Working power supply 80W
Instrument dimensions 325*220*510mm
Instrument weight 7.4kg
Packaging dimensions 460*350*550mm
Packaging weight 12.3kg

Petroleum Asphalt Needle Penetration Measuring Instrument 0 ～ 700 Penetration ASTM D217 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Unit Quantity Remarks
1 Instrument host Set 1
2 Standard cone Piece 1
3 Connecting rod Piece 1
4 Standard sample box Piece 1
5 Standard needle Set 1 3 of them
6 Paraffin needle Piece 1 Optional
7 Paraffin molding machine Set 1 Optional
8 Power cord Root 1
9 Certificate of Qualification and Warranty Card Copy 1
10 Instruction manual Copy 1



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to your company:

----The provided instruments and materials are new, comply with national quality standards, and come with manufacturer's certificates of conformity;

----The provided materials and key components comply with the technical requirements specified in the documentation;

----The overall equipment warranty period is one year (excluding normal wear and tear of consumable parts).

----For any instrument quality issues arising during the warranty period, our company is responsible for free repairs. In cases where equipment malfunctions are caused by the user's fault, we will repair them at a reasonable charge.

----Lifetime discounted parts supply and whole-machine maintenance and repair services.

----After the warranty period expires, we will only charge the cost price for repairs and technical services when required by the user.

Petroleum Asphalt Needle Penetration Measuring Instrument 0 ～ 700 Penetration ASTM D217 1
