Feed Pellet Durability Index Tester 2 Boxes Speed 50r/Min PDI Value Test ISO17831

  • Feed Pellet Durability Index Tester 2 Boxes Speed 50r/Min PDI Value Test ISO17831
  • Feed Pellet Durability Index Tester 2 Boxes Speed 50r/Min PDI Value Test ISO17831
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co.,Ltd
Certification GB16765 ISO17831 DIN EN 15210-1:2010-04
Model Number ST136
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Number Of Rotating Boxes 2 Rotation Speed 50 Rpm
Number Of Turns 500 Revolutions / Time Usage Time 10 Minutes
Box Size 300*300*125mm Power Distribution 120W 1440r / Min
Highlight

feed pellet durability tester 50r/min

,

PDI value test ISO17831

,

feed testing instrument with warranty
Leave a Message
Product Description

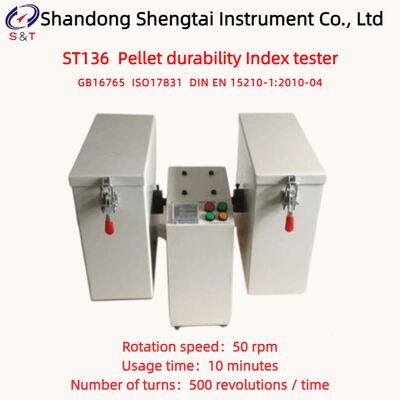

ST136 Pellet durability Index tester

Standard: GB16765 ISO17831 DIN EN 15210-1:2010-04

The ST136 Particle Durability Tester (Particle Powdering Rate Tester) is designed and manufactured strictly in accordance with the GB16765 General Technical Conditions for Granular Feed and the ISO17831 standard for mechanical durability of solid biofuel particles and pellets. Simultaneously comply with DIN EN 15210-1:2010-04

The pellet feed produced by the feed factory must have sufficient durability to withstand the impact during transportation, reduce fine powder, and meet customers' appearance requirements for pellet feed.

The pulverization rate tester produced by our company is a device for testing the PDI value of particles. It is one of the most important indicators reflecting the quality of pellet feed, which is used to measure the relative ability of feed pellets to resist breakage during transportation and handling of pellet feed products. The larger the PDI value, the stronger the anti crushing ability of the particles, the better the particle quality, and the higher the feed utilization rate.

Main technical parameter

Number of rotating boxes 2
Rotation speed 50 rpm
Number of turns 500 revolutions / time
Usage time 10 minutes
Box size 300*300*125mm
Time adjustment range 0-10000s
Power distribution 120W 1440r / min
Instrument size 460×360×405mm
Instrument weight 20kg
Package size 580×450×480mm
Package weight 25kg

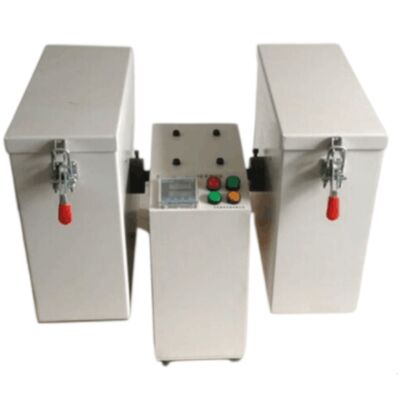

Feed Pellet Durability Index Tester 2 Boxes Speed 50r/Min PDI Value Test ISO17831 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Brush 1 Piece
3 Power cord 1 Piece
4 Instructions 1 Copy
5 Packing list 1 Copy
6 Certificate warranty card 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Feed Pellet Durability Index Tester 2 Boxes Speed 50r/Min PDI Value Test ISO17831 1
