White Petrolatum Manual Drip Point Instrument 12*100mm Glass Test Tube SH/T0678
| Metal Sleeve Thermometer | Specialized, -5 ~ 105 ℃ | Heater | Tubular, Power 400W |
|---|---|---|---|
| Mixing Motor Speed | 250rpm | Fat Cup | Brass Chrome Plated |
| Bathtub | Insulated Double-layer Bathtub | Working Power Supply | AC220V ± 10% 50Hz |
| Highlight | white petrolatum manual drip point instrument,glass test tube drip point tester,petrolatum testing instrument SH/T0678 |
||

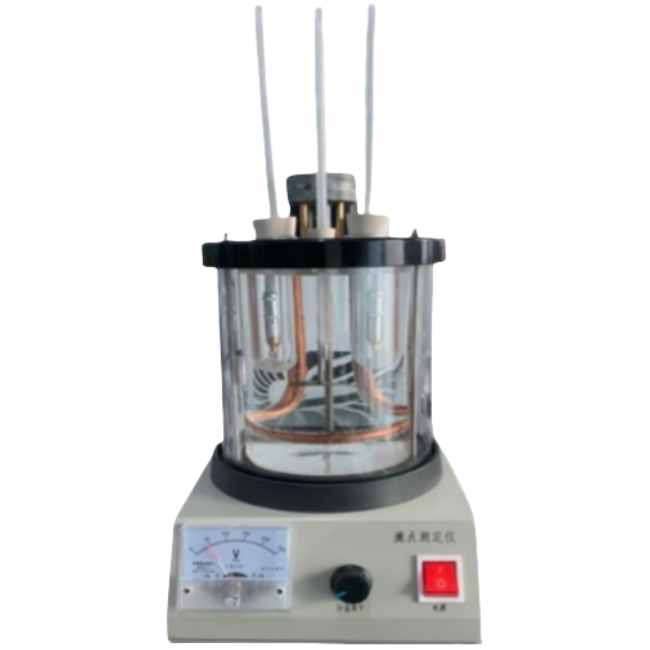

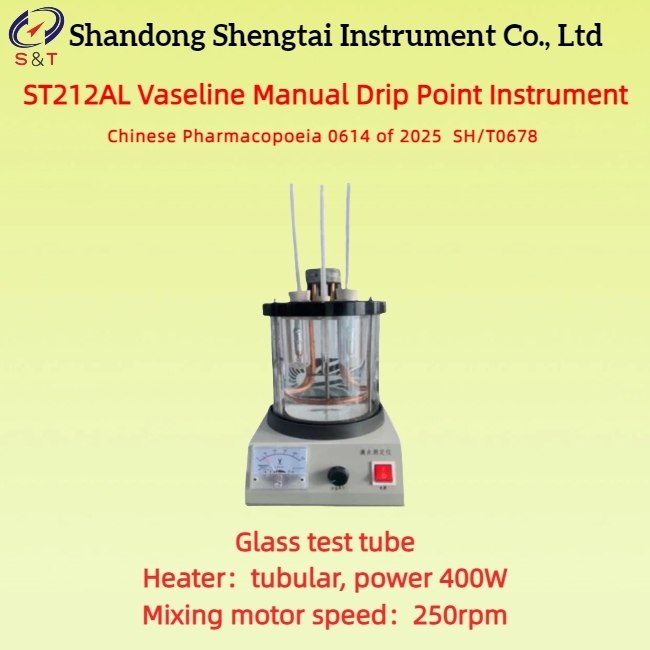

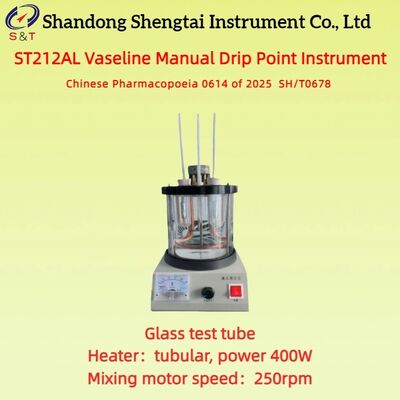

ST212AL Vaseline Manual Drip Point Instrument
The ST212AL manual Vaseline drop point analyzer fully complies with the standards of the 2025 Chinese Pharmacopoeia, British Pharmacopoeia, and SH/T0678 "Vaseline Drop Point Determination Method" for determining the drop point of Vaseline, that is, the temperature at which Vaseline reaches a certain fluidity under the specified test.
Technical specifications and parameters
| Working power supply | AC220V ± 10% 50Hz | ||
| Bathtub | Insulated double-layer bathtub | ||
| Fat cup | brass chrome plated | ||
|
Fat cup size |
Wide mouth inner diameter | 9.64 ~ 10.16mm | |
| Wide mouth outer diameter | 10.7mm | ||
| Narrow inner diameter | 2.8 ~ 3.0mm | ||
| Narrow outer diameter | 4.8mm | ||
| Cup height | 12.0 ~ 12.2mm | ||
| Test tube | Glass test tube | ||
| Test tube total length | 100mm | ||
| Test tube inner diameter | 12mm | ||
| Metal sleeve thermometer | Specialized, -5 ~ 105 ℃ | ||
| Heater | tubular, power 400W | ||
| Mixing motor speed | 250rpm | ||
| Environmental temperature | -10℃ ~ +40℃ | ||
| Relative humidity | ≤ 85% | ||
| Whole power | ≤500W | ||
| Instrument size | 300*360*500 mm | ||
| Instrument weight | 10kg | ||
| Packaging size | 310*290*460mm | ||
| Packaging weight | 6.95kg | ||
![]()
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Package list
| Number | Name | Unit | Quantity | Note |
| 1 | Drop point tester | Unit | 1 | |
| 2 | Vaseline specific grease cup | Piece | 2 | |
| 3 | Test tube 12 * 100 | Piece | 2 | |
| 4 | Rubber stopper | Piece | 2 | |
| 5 | Metal sleeve thermometer -5 ~ 105 ℃ | Piece | 2 | |
| 6 | Instructions | Copy | 1 | |
| 7 | Certificate of Conformity Warranty Card | Copy | 1 |
![]()
