Crystalline Thermal Analyzer RT ～ 600℃ Heating 0.1 ～ 100 ℃/Min DSC 0 ～ ± 600mW ChP 0981

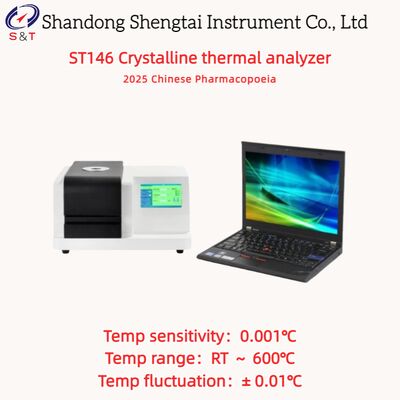

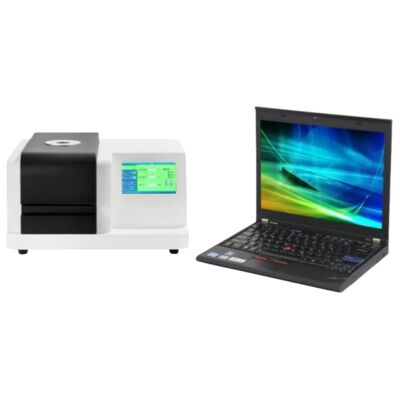

ST146 Crystalline thermal analyzer

Standard: ChP 0981 ChP0661

The ST146 Crystalline Thermal Analyzer is designed and manufactured in accordance with the new version of the 2020 Chinese Pharmacopoeia General Rules 0981 Crystalline Inspection Method and 0661 Differential Scanning Calorimetry Method. It is a touch screen type and can perform tests such as glass transition temperature, phase transition, melting and enthalpy values, product stability, curing, specific heat, and oxidation induction period.

Technical parameters and characteristics

● Data scanning: heating scan, cooling scan, constant temperature scan;

● Temperature control method: PID precise control (fully automatic program control); The lower computer interface can set and define PID parameter values to meet different environments and power heating needs; Customizable initial heating power;

● Parameter standard: equipped with standard substance (tin), users can calibrate the temperature themselves;

● Software: With specific heat capacity testing function, including specific heat capacity testing standard samples; The software can simultaneously set 6 experimental parameters;

● The software comes with automatic analysis function, data can be generated in Excel format, and experiments can be saved as PDF reports;

● An industrial grade 7-inch touch screen with rich display information.

● New metal furnace body structure, better baseline and higher accuracy. Heating adopts an indirect conduction method, which has high uniformity and stability, reduces pulse radiation, and is superior to traditional heating modes.

● USB communication interface, strong universality, reliable and uninterrupted communication, supporting self recovery connection function.

★ Data extension: Account layering and audit tracking function (optional)

Note: Gas self provided

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
