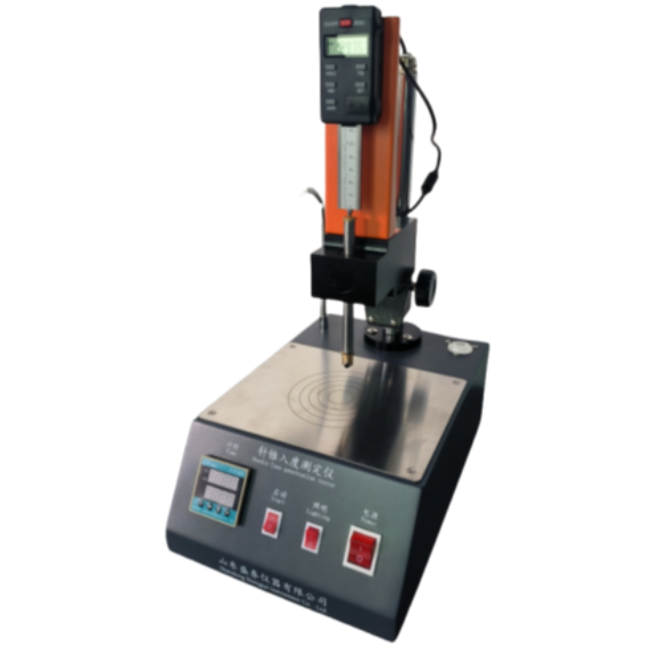

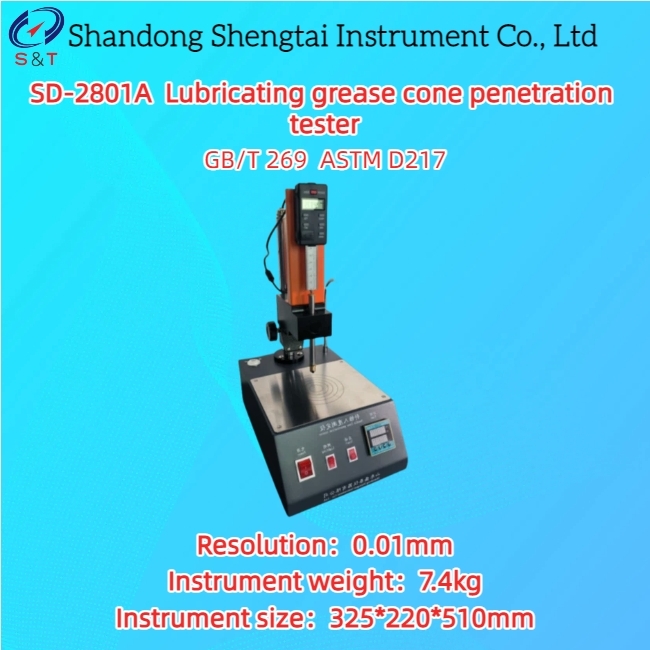

SD-2801A Lubricating grease cone penetration tester

SD-2801A cone penetration tester is designed and manufactured according to the technical requirements and relevant regulations of the People's Republic of China standard GB/T269 "Grease and petroleum grease cone penetration determination method". It is mainly suitable for testing the cone penetration of grease.

Needle penetration refers to the depth at which a standard cone (usually carrying a total load of 150 grams, but with regulations of 100 grams) sinks into a lubricating grease sample held at 25 ℃ within 5 seconds. The unit is 1/10 millimeter. The greater the penetration, the softer the lubricating grease, that is, the lower the viscosity; On the contrary, it indicates that the harder the lubricating grease is, the greater its viscosity. The penetration measurement of asphalt does not use a standard cone but a standard pointed needle with a load capacity of 100 grams.

Main technical features

● Standard: GB/T 269 ASTM D217 ASTM D1403

● The use of digital display to display the taper value, intuitive and eye-grabbing.

● Digital display of cone entry time control device, time can be set according to one's own needs, with a time error of less than ±0.1s

● The experimental time can be set arbitrarily

● With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.

● Lifting bracket: dual lifting and adjusting mechanism for coarse and fine adjustment, facilitating the alignment of the needle tip with the sample plane;

● The needle rod assembly can be adjusted up and down within 0-70mm by adjusting the knob

● Other: Equipped with a cold light source for easy use and operation.

Main technical parameters and indicators

Note: The appearance pictures, dimensions, volume and weight of the device are for reference only. If there are any updates to the device, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list:
