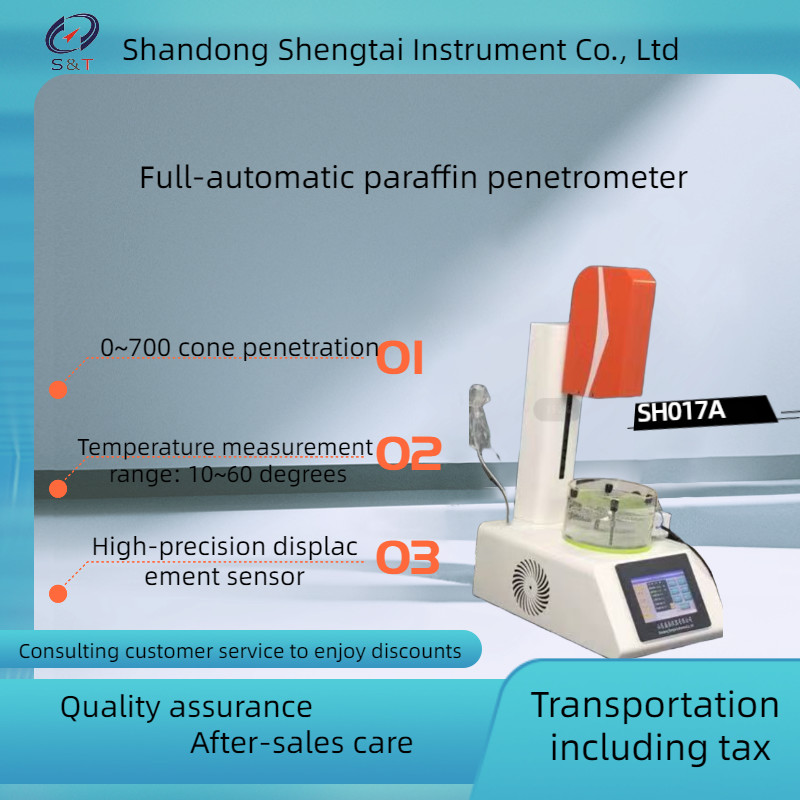

GB/T4985-2021 Fully Auto Paraffin Penetration Tester With TCP Network Transmission

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH017A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH017A Measurement Range 0-700 1/10mm (0-70mm)
Temperature Measurement Range 10~60 Degrees Sliding Rod 47.5 ± 0.05g
Cone Tip Angle 9 ° 10 '± 15' Cone Tip Diameter Ф 0.15±0.01
High Light

GB/T4985-2021 Penetration Tester


Paraffin Penetration Tester


GB/T4985-2021 Penetration Apparatus

Leave a Message
Product Description

GB/T4985-2021 Fully Automatic Paraffin Penetration Tester With TCP Network Transmission Function

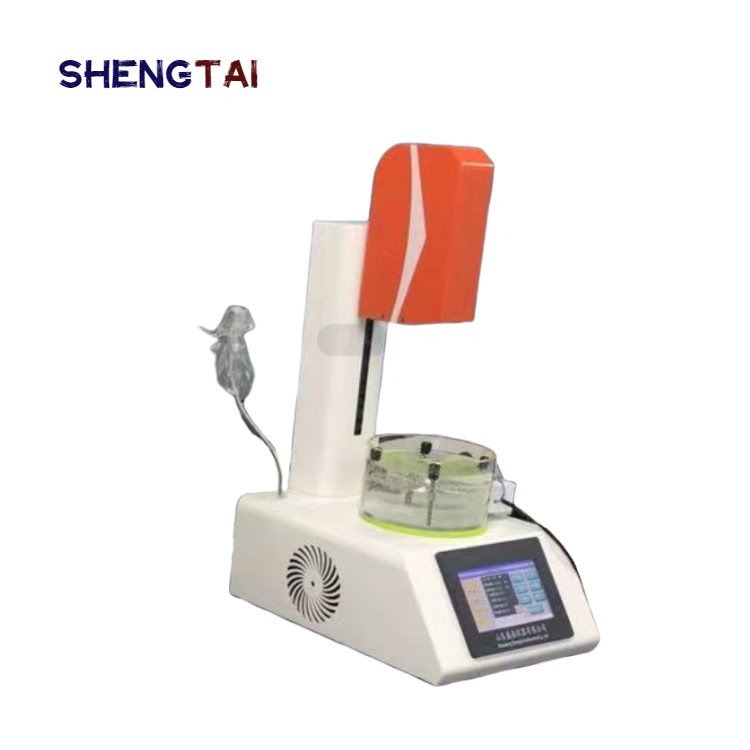

SH017A Automatic Paraffin Penetrometer/Instrument is designed and manufactured in accordance with the requirements specified in the GB/T4985-2021 standard. It is a dedicated instrument for testing paraffin penetration, integrating mechanical, optoelectronic, and micro detection technology. The lifting arm automatically lifts, the touch screen fine adjusts the distance, automatically determines the results, and automatically prints.


The standard test conditions are as follows: The petroleum wax sample is placed in a constant temperature water bath maintained at the test temperature, and a standard needle assembly with a total load of 100 grams ± 0.05 grams moves vertically without significant friction. The depth of penetration of the petroleum wax sample vertically within 5 seconds is called the petroleum wax penetration to determine the hardness of the petroleum wax.


Technical parameter


● Compliance standard: GB/T4985-2021

● Measurement range: 0-700 1/10mm (0-70mm);

● Detection method: high-precision displacement sensor

● Temperature measurement range: 10~60 degrees

●Sliding rod: 47.5 ± 0.05g

●Standard needle: Cone tip diameter: Ф 0.15±0.01

Cone tip angle: 9 ° 10 '± 15'

Mass (g): 2.5g ± 0.05g

●Weight: 50g

● Data storage: USB flash disk data export function

● Storage method: Experimental results can be stored in 199 sets of historical data for easy query;

● Result output: At the same time, it can be equipped with a U-disk output function, which can be output to the PC terminal for long-term storage

● Output format: The output format of the result USB flash disk is CSV or excel.

● Data protection: with date and password setting function.

Standard printing: standard micro printer automatic measurement automatic thermal printing

★ Remote upgrade: With TCP network transmission function, remote software upgrade can be performed later (optional)

★ Data management: connectable to the LIMIS system (optional)

S/N Name Quantity Unit Remarks
1 Automatic penetrometer 1 set Host
2 Needle body 1 piece
3 Paraffin shaper 1 set
4 weight 1 piece
5 power cord 1 piece
6 Certificate of Conformity Warranty Card 1 copy
7 instructions 1 copy
8 Printing paper 2 roll

GB/T4985-2021 Fully Auto Paraffin Penetration Tester With TCP Network Transmission 0GB/T4985-2021 Fully Auto Paraffin Penetration Tester With TCP Network Transmission 1GB/T4985-2021 Fully Auto Paraffin Penetration Tester With TCP Network Transmission 2
