3 Samples Adhesive Retention Testing Machine Timing 10000h 20kg ASTM D3121

ST107 Viscosity tester

The adhesive strength tester is designed and manufactured strictly in accordance with the requirements of the new version 2025 Chinese Pharmacopoeia "0952 Adhesive Strength Determination Method Second Method for Adhesive Strength Determination", and is suitable for conducting adhesive strength testing on products such as ointment patches.

ChP 0952

Working principle:

Hang the test plate with the sample vertically on the test frame, and hang the weight with the specified weight at the lower end. Measure the ability of the adhesive tape to resist the pull off with the displacement of the sample after a certain period of time or the time required for the sample to completely break off.

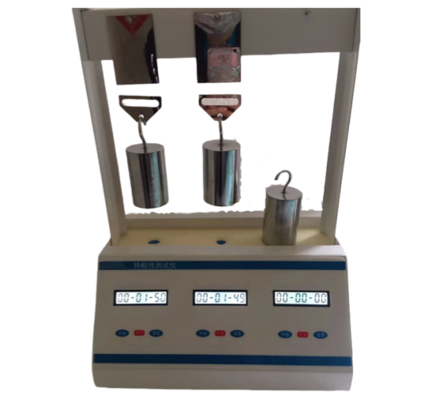

Instrument structure:

it is mainly composed of timing mechanism, test plate, loading plate, weight, frame and standard pressing roller.

Product features:

It adopts high-precision relay to control timer, which is easy to operate and economical.
High quality proximity switch, wear-resistant, high sensitivity and long service life.
The timer is equipped with lithium battery, accurate timing, practical and convenient.

Technical Parameter:

Weight: 200 ± 2g, optional 500g

Test board: 125 × 125 × 2mm

Timing range: 10000h

Number of samples: 3

Power supply: 220V 50Hz

Number of positions: 3 pieces

Power supply: AC220V,50Hz

Dimensions: 600 × 240 × 400mm

Net weight: 20Kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
