0 ～ 60° Double Sided Adhesive Initial Adhesion Tester TZ Width 80mm ASTM D3121

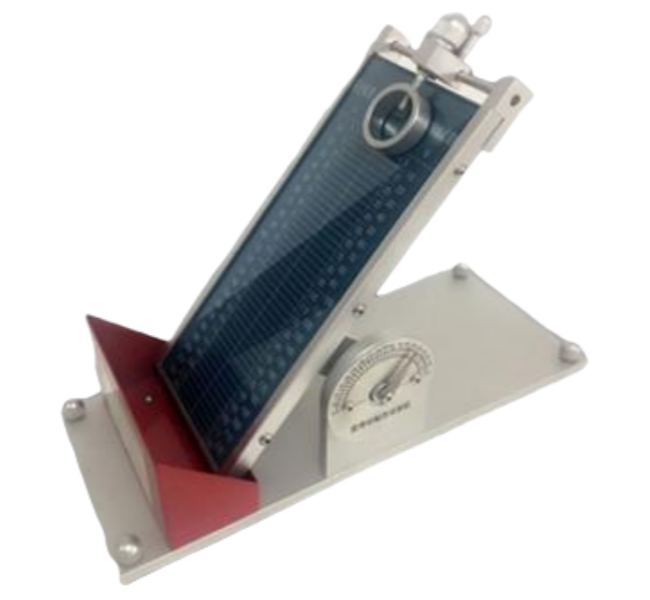

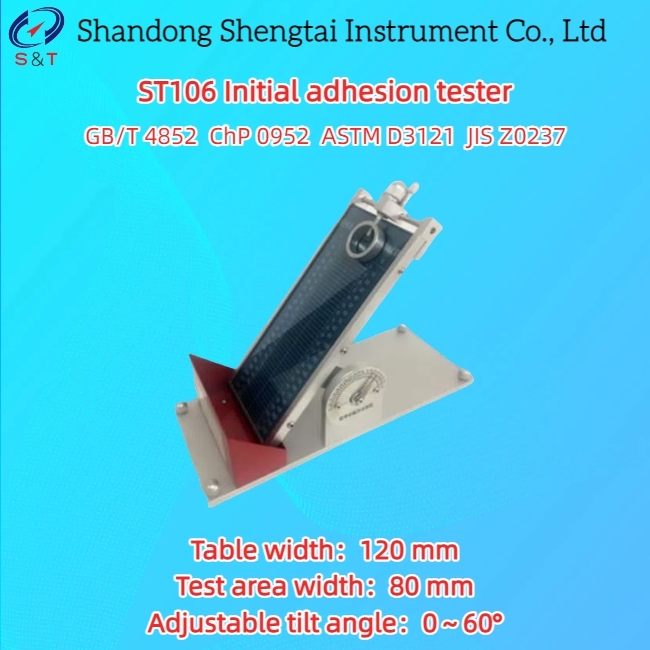

ST106 Initial adhesion tester

The ST106 Initial Adherence Testers, also known as Initial Adherence Testers, Tape Adherence Testers were designed and manufactured in accordance with the requirements of the new 2025 Chinese Pharmacopoeia 0952 Determination of Adherence Force - Determination of Initial Adherence Force - Method 1. The equipment used the slant rolling ball method, and adhesive tape, labels, and other products used to test the initial sticking force of the steel ball through a brief contact between the steel ball and the adhesive surface of the test sample with a slight pressure. It is suitable for pressure sensitive adhesive tape, medical patch, adhesive label, protective film and other related products for initial viscosity test.
Initial adhesive tester is suitable for pressure sensitive adhesive tape, adhesive label and other related products for initial adhesive test. The initial viscosity tester implements GB/T 4852 Test Method for Initial Adherence of Pressure Sensitive Tape – Rolling Ball Method. Based on the principle of oblique rolling ball method, the initial adhesive properties of adhesive products are characterized by the maximum steel ball number that can be glued.dhered.

Testing Principles

Roll a steel ball over the adhesive surface of the adhesive tape placed flat on the inclined plate, and evaluate its initial adhesive strength based on the maximum size of the steel ball that can be adhered to the adhesive surface of the specified length; Or roll a steel ball of a specified size over an inclined groove and measure the distance it rolls on the adhesive surface of the adhesive tape on a horizontal plate to evaluate its initial viscosity.

Using the inclined rolling ball method, the initial adhesion of the sample is tested by the adhesion of the adhesive tape to the steel ball when there is a brief contact between the adhesive surface of the steel ball and the pressure-sensitive tape sample under slight pressure.

Equipment features

Using the testing principle of inclined rolling ball method, test the instantaneous adhesion performance of the sample.

The test steel balls designed completely in accordance with national standards ensure high accuracy of the test data.

The tilt angle of the test can be freely adjusted according to the user's needs

Execution standards:

The 2025 Chinese Pharmacopoeia "0952 Adhesion Determination Method" GB/T 4852,JIS Z0237

Technical Parameter:

Adjustable tilt angle: 0～60°

Table width: 120 mm

Test zone width: 80 mm

Standard steel ball: 1/32 inch to 1 inch

External dimensions: 320 ×140 ×180 mm

Net weight: 6Kg

Standard configuration:

Host, one box of 1-32 standard steel balls.

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
