LCD Display Automatic Open Flash Point Tester RT ～ 400℃ Forced Air Cooling ASTM D92

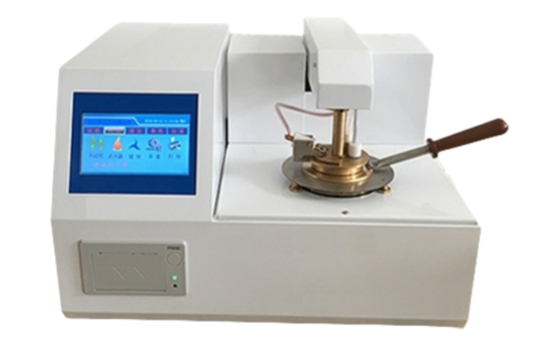

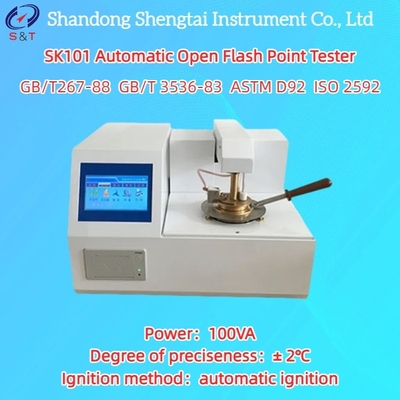

SK101 Automatic Open Flash Point Tester

The instrument adopts a large screen LCD display screen and computer-controlled throughout the entire testing process. The instrument has automatic temperature control, automatic ignition scanning, automatic detection of flash point locking results, printing of results, and automatic shut-off of gas source. This instrument has the advantages of accurate measurement, good repeatability, stable performance, and simple operation. Widely used in departments such as power, petroleum, chemical, commercial inspection, and scientific research.

The SK101 automatic open flash point tester is designed and manufactured in accordance with the national standards GB267-88 and GB3536-83 for open flash point determination methods.

GB/T267-88 GB/T 3536-83 ASTM D92 ISO 2592

Technical Index

● Display: Large screen full Chinese LCD module display

● Measurement range: Room temperature ～ 400℃

● Degree of preciseness: ± 2℃

● Accuracy: 0.1℃

● Repeatability:

Flash point ≤ 150℃, error ± 2℃

Flash point ≥ 150℃, error ± 4℃

● Power supply: AC220V±22V 50Hz±2.5Hz

● Power: 100VA

● Operating environment temperature: 10℃ ～ 35℃

● Operating environment humidity: ≤ 85%

● Weight: 15Kg

● Gas source: No gas source required

● Ignition method: automatic ignition

● Cooling method: forced air cooling

● Dimensions: 400 * 260 * 280mm

● Outer packaging size: 520 * 378 * 375 mm

● Outer packaging weight: 17.3 kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
