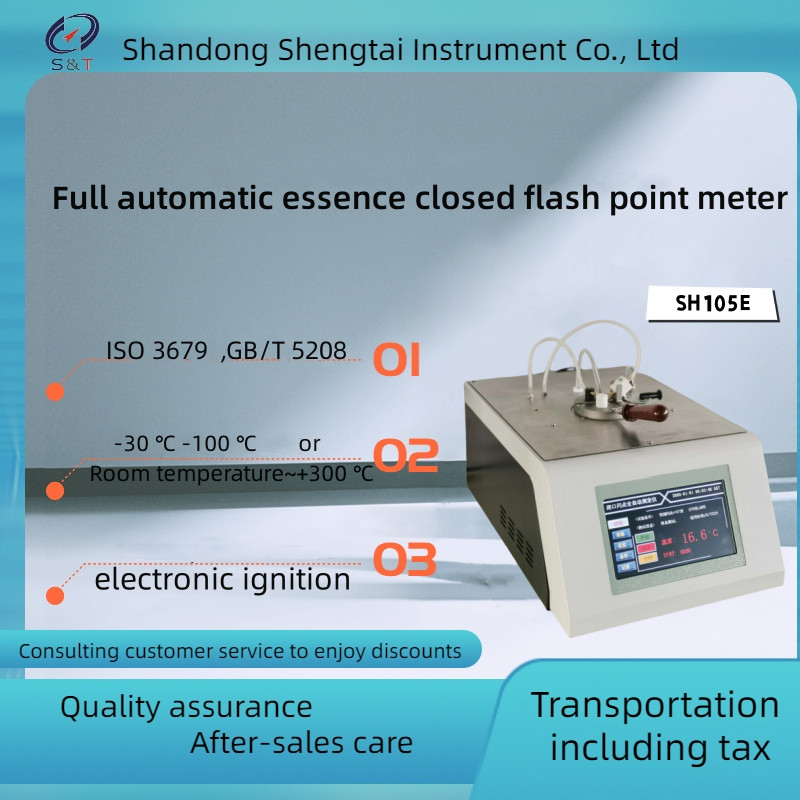

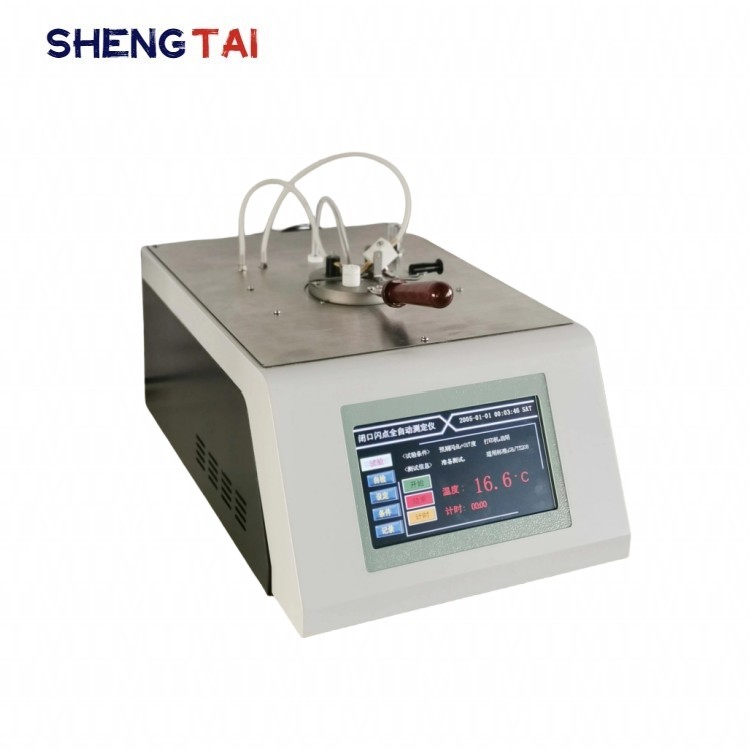

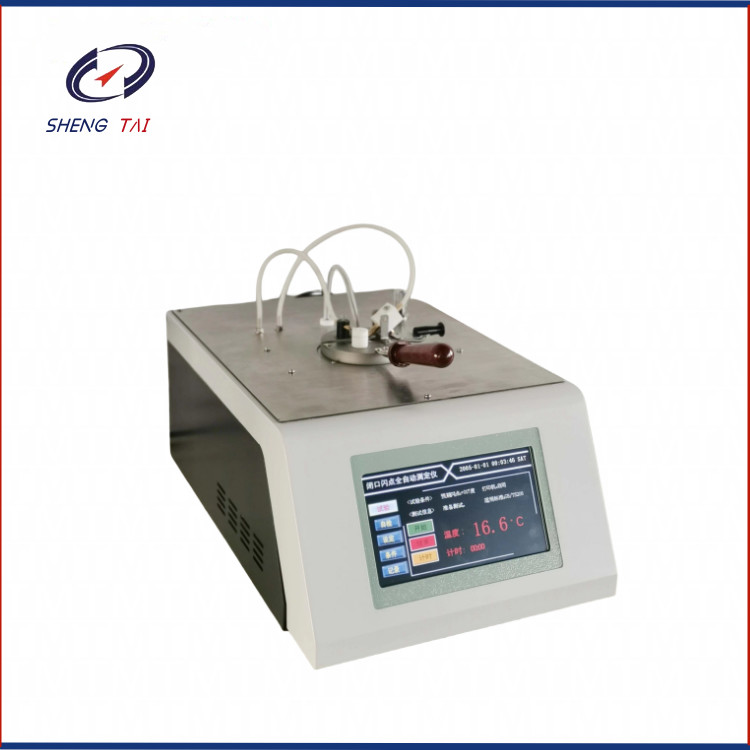

Full automatic essence closed flash point instrument SH105E isolated heating bath electronic ignition

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH105E
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH105E Working Power Supply AC220V ± 10%, 50Hz
Relative Humidity ≤ 80% Ambient Temperature (10~40) ℃
Overall Power Consumption Not More Than 500W Temperature Measurement Range Room Temperature~370 ℃
Repeatability ± 2 ℃
High Light

GB261-2008 Flash Point Tester


ASTM D93 Flash Point Tester

Leave a Message
Product Description

SH105E automatic essence closed flash point tester is strictly in accordance with GB_ T 14454.10-1993 Determination of flash point of spices - Closed cup method using microcomputer technology and large screen LCD liquid crystal display. The instrument uses standard methods for temperature rise, automatic lifting, automatic ventilation, automatic ignition, automatic display, automatic locking of flash point values, and automatic printing of results. The instrument adopts an electronic ignition without air source, a highly sensitive flash detection module, and the entire testing process is automated. It has an over temperature protection function, maximizing the safety of the operator and the instrument.

Main technical indicators, parameters and characteristics

1. It adopts a large color LCD screen display, a full Chinese human-computer dialogue interface, and an unmarked keyboard. It has a prompt menu oriented input for parameters such as predictable temperature, sample label, atmospheric pressure, and test date.

2. Built-in air pressure sensor, automatically performing atmospheric pressure correction.

The instrument has overtemperature alarm and overtemperature automatic stop functions

4. Lifting, capping, ignition, detection, saving and printing of test data are fully automated.

5. Isolated heating bath, with stable heating rate and rapid cooling.

6. Electronic ignition, forced air cooling, no air source required, automatic ignition.

7. Method of use: Binsky Martin closed cup method.

8. Working power supply: AC220V ± 10%, 50Hz;

9. Temperature measurement range: room temperature~370 ℃ Resolution: 0.1 ℃ Repeatability: ± 2 ℃

10. Base parameter: Heating speed: in accordance with GB_ Requirements of T 14454.10

11. Ambient temperature: (10~40) ℃; Relative humidity: ≤ 80%;

12. Overall power consumption: not more than 500W.

13. Instrument size: Overall size: 450 × three hundred and fifty × 320 (mm), about 18kg

Packing list

S/N Name Quantity Unit Remarks
1 Automatic closed flash point meter 1 Set
2 Oil cup 1 piece
3 AC power cord 1 piece
4 Printing paper 1 roll
5 instruction manual 1 piece
6 Packing list 1 copy
7 certificate 1 copy
